ST161L-BLMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

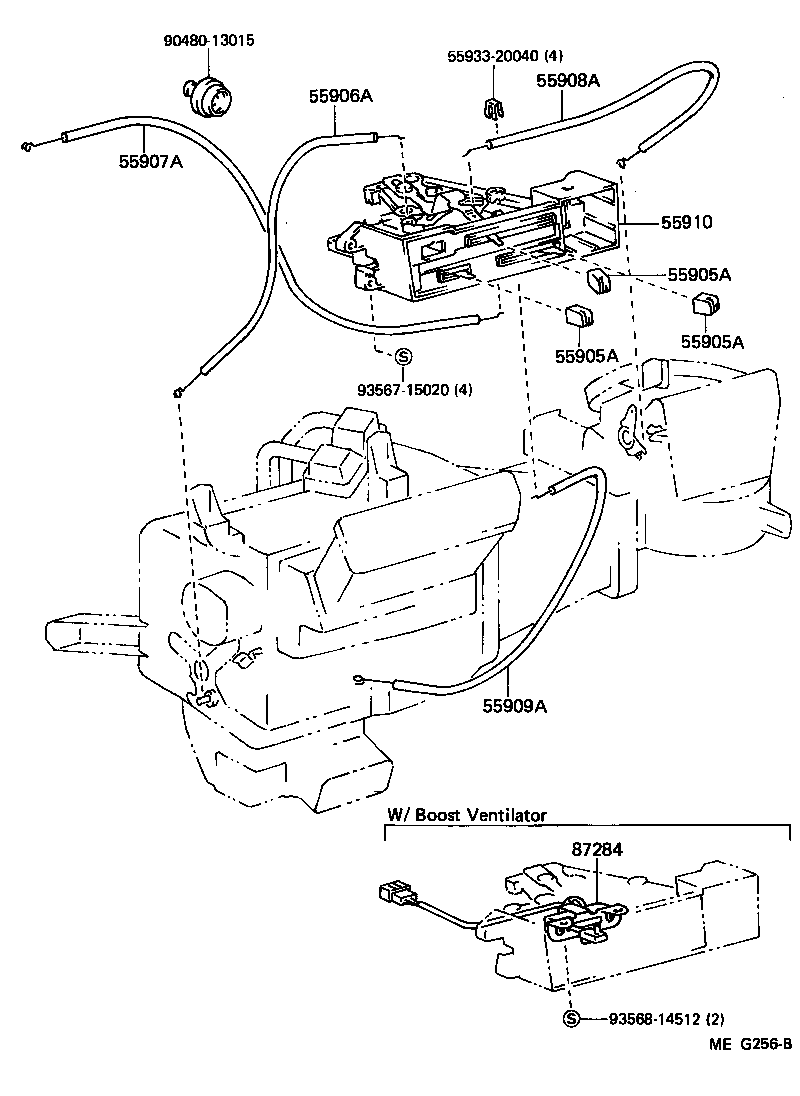

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 5593320040 87284 9048013015 9356715020 9356814512
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12070

ST16#..ST

 4
55905A - KNOB, HEATER CONTROL
55905-12070

ST16#..ST

 4
55905A - KNOB, HEATER CONTROL
55905-12070

ST16#..ST

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20230

ST16#..ST

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20190

ST16#..ST

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20110

ST16#..ST

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20060

ST16#..ST

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55900-20380

ST16#..GT,GTS

W/COOLER

 1
55900-20370

ST16#..GT,GTS

 1
55910-20400

ST16#..ST

W/*BV

 1
55900-20390

ST16#..(GT,GTS)..USA

W/*AAC

 1
55910-20430

ST16#..ST

W/*BV & COOLER

 1
55910-20390

ST16#..ST

W/HEATER

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-20080

ST16#..ST

 1
Common parts
55933-20040
90480-13015
93567-15020
93568-14512

(8508- )

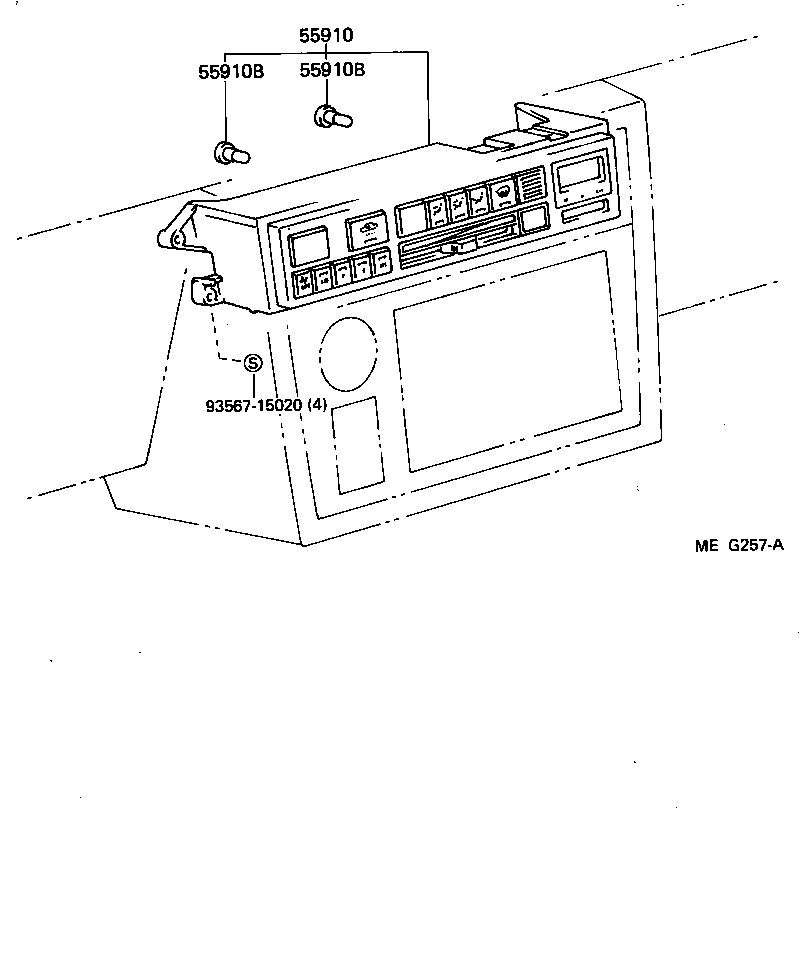

Click highlighted areas on diagram

diagram 55910 55910B 55910B 9356715020
Part # Description Qty Price
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55900-20380

ST16#..GT,GTS

W/COOLER

 1
55900-20370

ST16#..GT,GTS

 1
55910-20400

ST16#..ST

W/*BV

 1
55900-20390

ST16#..(GT,GTS)..USA

W/*AAC

 1
55910-20430

ST16#..ST

W/*BV & COOLER

 1
55910-20390

ST16#..ST

W/HEATER

 1
55910B - BULB, HEATER CONTROL
84999-10090

ST16#..GT,GTS

 2
55910B - BULB, HEATER CONTROL
84999-10090

ST16#..GT,GTS

 2
Common parts
93567-15020

(8508- )

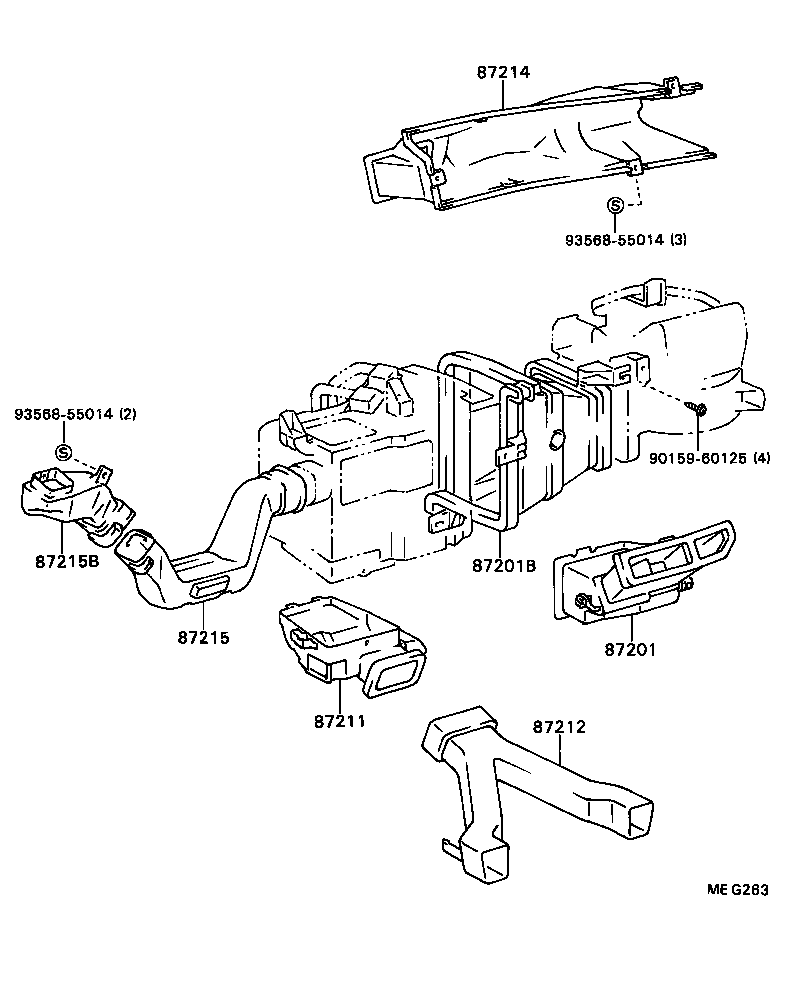

Click highlighted areas on diagram

diagram 87201 87201B 87211 87212 87214 87215 87215B 9015960125 9356855014 9356855014
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20160

ST16#

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87220-20020

ST16#

 1
87211 - DUCT, AIR, NO.1
87211-20100

ST16#

 1
87212 - DUCT, AIR, REAR NO.1
87202-20020

ST16#

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55086-20060

ST16#

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-20070

ST16#

W/COOLER

 1
55085-20080

ST16#

 1
87215B - DUCT, AIR, SIDE NO.3 LH
55084-20120

ST16#

 1
Common parts
90159-60125
93568-55014

(8508- )

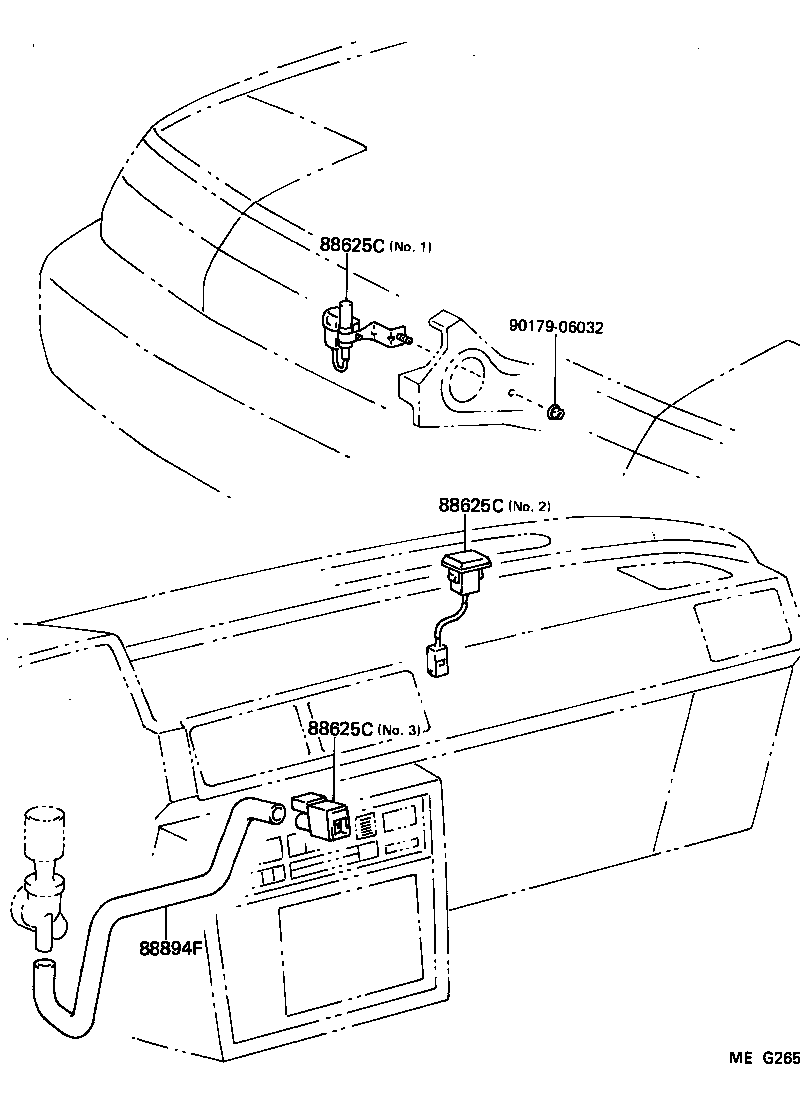

Click highlighted areas on diagram

diagram 88625C 88625C 88625C 88894F 9017906032
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-20130

ST16#..(CP,LB)..(GT,GTS)

NO.3

 1
88625-20150

ST16#..(CP,LB)..(GT,GTS)

NO.1

 1
88625-20140

ST16#..(CP,LB)..(GT,GTS)

NO.2

 1
88625C - THERMISTOR, COOLER
88625-20130

ST16#..(CP,LB)..(GT,GTS)

NO.3

 1
88625-20150

ST16#..(CP,LB)..(GT,GTS)

NO.1

 1
88625-20140

ST16#..(CP,LB)..(GT,GTS)

NO.2

 1
88625C - THERMISTOR, COOLER
88625-20130

ST16#..(CP,LB)..(GT,GTS)

NO.3

 1
88625-20150

ST16#..(CP,LB)..(GT,GTS)

NO.1

 1
88625-20140

ST16#..(CP,LB)..(GT,GTS)

NO.2

 1
88894F - HOSE, AIR
88669-20010

ST16#..(CP,LB)..(GT,GTS)

 1
Common parts
90179-06032
