ST161L-BLMVEA (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

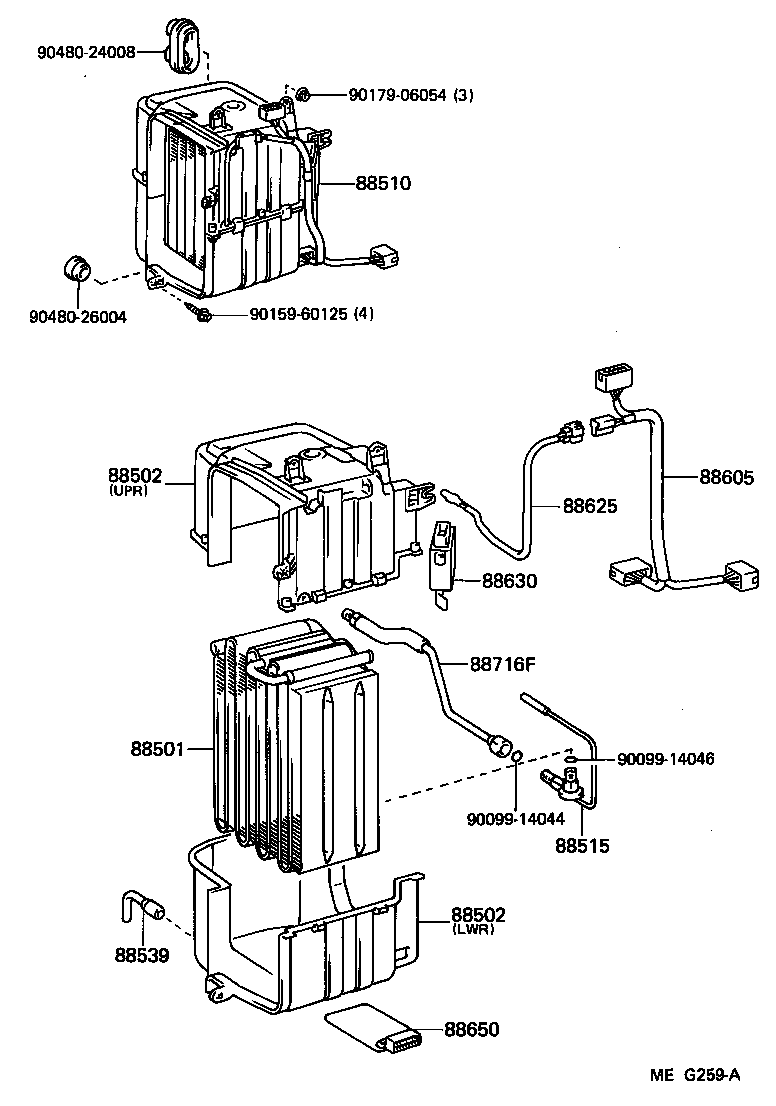

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20210 |
ST16# |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20080 |
ST16# LWR |
1 | ||
| 88502-20070 |
ST16# UPR |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20080 |
ST16# LWR |
1 | ||
| 88502-20070 |
ST16# UPR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-20400 |
ST16#..GT,GTS W/*AAC |
1 | ||
| 88510-20410 |
ST16#..ST W/*BV |
1 | ||
| 88510-20390 |
ST16#..GT,GTS |
1 | ||
| 88510-20380 |
ST16#..ST |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16031 |
ST16# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20130 |
ST16# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-20600 |
ST16#..GT,GTS |
1 | ||
| 88605-20590 |
ST16#..ST |
1 | ||
| 88605-20620 |
ST16#..ST W/*BV |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
ST16# |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-20020 |
ST16#..GT,GTS |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20240 |
ST161..ST |
1 | ||
| 88650-20260 |
ST16#..GT,GTS |
1 | ||
| 88650-20250 |
ST161..ST W/*BV |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-2B050 |
ST16# |
1 | ||
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90159-60125 | ||||
| 90179-06054 | ||||
| 90480-24008 | ||||
| 90480-26004 | ||||
