ST161L-BLMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

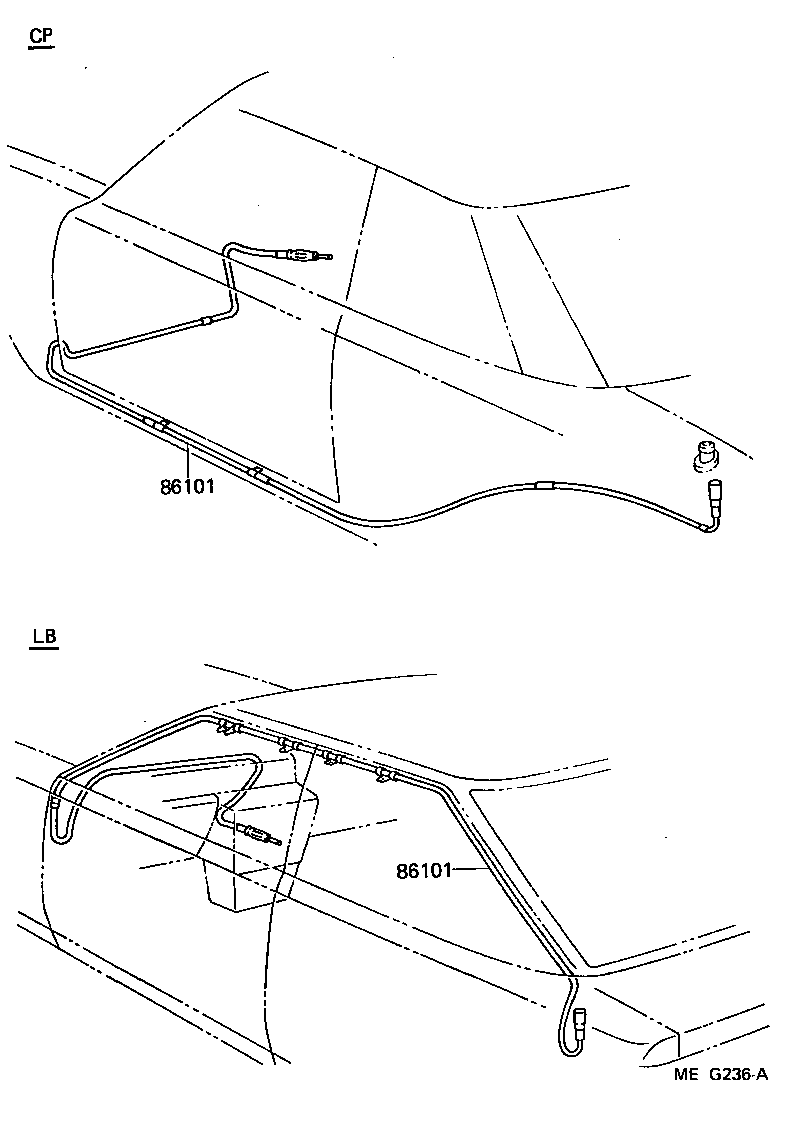

Click highlighted areas on diagram

diagram 86101 86101
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-20150

ST16#

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-20150

ST16#

 1

(8508- )

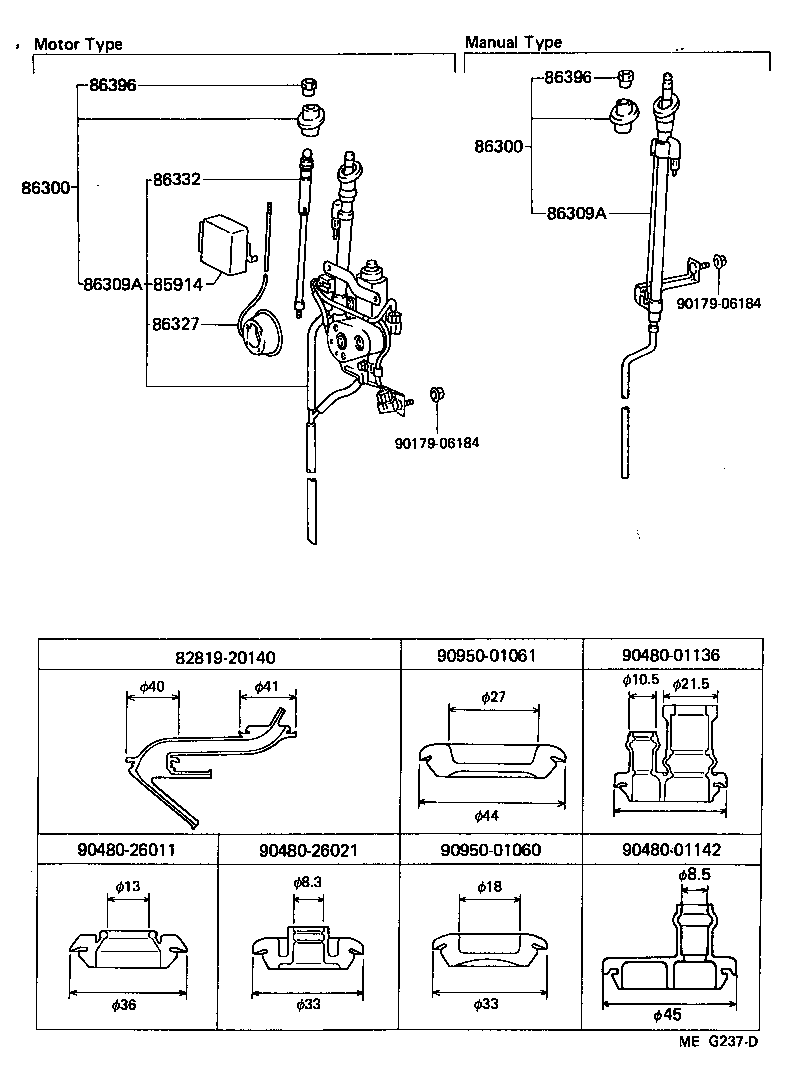

Click highlighted areas on diagram

diagram 8281920140 85914 86300 86300 86309A 86309A 86327 86332 86396 86396 9017906184 9017906184 9048001136 9048001142 9048026011 9048026021 9095001060 9095001061
Part # Description Qty Price
85914 - RELAY, MOTOR ANTENNA CONTROL
85914-14020

ST16#

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-20200

ST161..LB

 1
86300-20190

ST16#..ST

 1
86300-20220

ST161..LB

MOTOR TYPE

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-20200

ST161..LB

 1
86300-20190

ST16#..ST

 1
86300-20220

ST161..LB

MOTOR TYPE

 1
86309A - POLE SUB-ASSY, MOTOR ANTENNA
86309-20140

ST161..LB

 1
86309-20160

ST161..LB

MOTOR TYPE

 1
86309-20130

ST16#..ST

 1
86309A - POLE SUB-ASSY, MOTOR ANTENNA
86309-20140

ST161..LB

 1
86309-20160

ST161..LB

MOTOR TYPE

 1
86309-20130

ST16#..ST

 1
86327 - CABLE, W/ANTENNA DRUM
86327-22210

ST16#

 1
86332 - ROD, ANTENNA
86336-22210

ST16#

 1
86396 - NUT, ANTENNA
86396-14041

ST16#

MOTOR TYPE

 1
86396-12020

ST16#..GT,ST

 1
86396 - NUT, ANTENNA
86396-14041

ST16#

MOTOR TYPE

 1
86396-12020

ST16#..GT,ST

 1
Common parts
82819-20140
90179-06184
90480-01136
90480-01142
90480-26011
90480-26021
90950-01060
90950-01061
