ST161L-BLMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

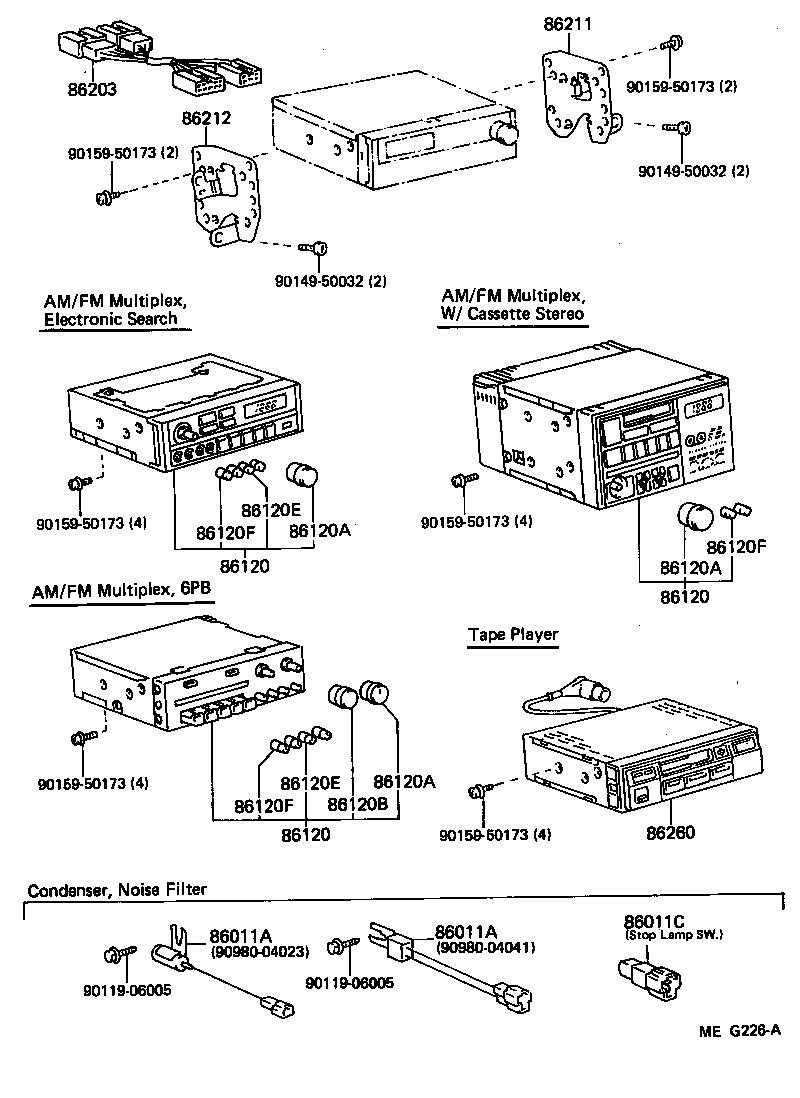

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86120 86120 86120 86120A 86120A 86120A 86120B 86120E 86120E 86120F 86120F 86120F 86203 86211 86212 86260 9011906005 9011906005 9014950032 9014950032 9015950173 9015950173 9015950173 9015950173 9015950173 9015950173 9098004023 9098004041
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04041

ST16#

IG.COIL

 1
90980-04023

ST16#

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04041

ST16#

IG.COIL

 1
90980-04023

ST16#

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05073

ST16#

 1
86120 - RECEIVER ASSY, RADIO
86120-20540

ST161..ST;ST161..CND

AM/FM MPX,6PB

 1
86120-20320

ST16#..GT,GTS

*17

 1
86120-20340

ST16#..LB

*20,W/*AF

 1
86120 - RECEIVER ASSY, RADIO
86120-20540

ST161..ST;ST161..CND

AM/FM MPX,6PB

 1
86120-20320

ST16#..GT,GTS

*17

 1
86120-20340

ST16#..LB

*20,W/*AF

 1
86120 - RECEIVER ASSY, RADIO
86120-20540

ST161..ST;ST161..CND

AM/FM MPX,6PB

 1
86120-20320

ST16#..GT,GTS

*17

 1
86120-20340

ST16#..LB

*20,W/*AF

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14740

ST161..ST;ST161..CND

AM/FM MPX,6PB

 1
86128-14800

ST16#..GT,GTS

*17

 1
86128-14840

ST16#..GT,GTS

*20,W/*AF

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14740

ST161..ST;ST161..CND

AM/FM MPX,6PB

 1
86128-14800

ST16#..GT,GTS

*17

 1
86128-14840

ST16#..GT,GTS

*20,W/*AF

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14740

ST161..ST;ST161..CND

AM/FM MPX,6PB

 1
86128-14800

ST16#..GT,GTS

*17

 1
86128-14840

ST16#..GT,GTS

*20,W/*AF

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-14760

ST161..ST;ST161..CND

AM/FM MPX,6PB

 1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-14780

ST161..ST;ST161..CND

AM/FM MPX,6PB,FADER & BLANCE

 2
86128-14820

ST16#..GT,GTS

*17,FADER & BALANCE

 2
86120E - KNOB, RADIO RECEIVER BALANCE
86128-14780

ST161..ST;ST161..CND

AM/FM MPX,6PB,FADER & BLANCE

 2
86128-14820

ST16#..GT,GTS

*17,FADER & BALANCE

 2
86120F - KNOB, RADIO RECEIVER SUB VOLUME
86128-14820

ST16#..GT,GTS

*17

 2
86128-14860

ST16#..GT,GTS

*20,W/*AF

 2
86128-14780

ST161..ST;ST161..CND

AM/FM MPX,6PB

 2
86120F - KNOB, RADIO RECEIVER SUB VOLUME
86128-14820

ST16#..GT,GTS

*17

 2
86128-14860

ST16#..GT,GTS

*20,W/*AF

 2
86128-14780

ST161..ST;ST161..CND

AM/FM MPX,6PB

 2
86120F - KNOB, RADIO RECEIVER SUB VOLUME
86128-14820

ST16#..GT,GTS

*17

 2
86128-14860

ST16#..GT,GTS

*20,W/*AF

 2
86128-14780

ST161..ST;ST161..CND

AM/FM MPX,6PB

 2
86211 - BRACKET, RADIO, NO.1
86211-20150

ST16#..ST

 1
86211-20180

ST16#..GT,GTS

 1
86212 - BRACKET, RADIO, NO.2
86212-20200

ST16#..GT,GTS

 1
86212-20190

ST16#..ST

 1
86260 - TAPE PLAYER ASSY
86260-20090

ST16#

 1
Common parts
90119-06005
90149-50032
90159-50173
90980-04023
90980-04041
