ST161L-BLMVEA (1985)
Toyota Celica
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80022 |
ST16# |
1 | ||
| 83320-80023 |
ST16#..(CP,LB)..GT W/*DS |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80022 |
ST16# |
1 | ||
| 83320-80023 |
ST16#..(CP,LB)..GT W/*DS |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ST16# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ST16# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20120 |
ST16# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20130 |
ST16#..LB |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
ST16# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
ST16# MATSUSHITA |
1 | ||
| 84340-22100 |
ST16#..GT,GTS W/*CRC,MATSUSHITA |
1 | ||
| 84340-22110 |
ST16#..GT,GTS W/*CRC,TOKAIRIKA |
1 | ||
| 84340-32010 |
ST16# TOKAIRIKA |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-12010 |
ST16#..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
ST16# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
ST16#..(CP,LB)..(GT,GTS) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-20080 |
ST16#..LB |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32120 |
ST16#..(CP,LB)..(GT,GTS) |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 93312-14012 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||

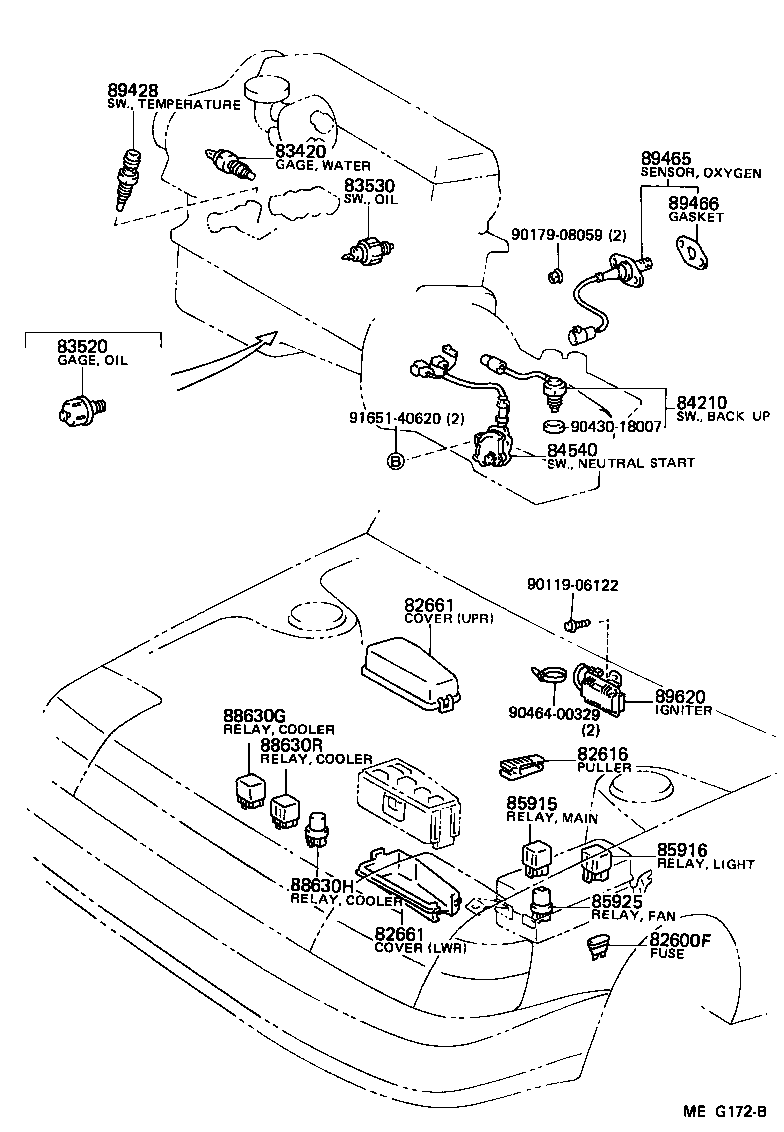

(8508- )ST161
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
ST16# 15A,15A |
11 | ||
| 90982-07011 |
ST16# 30A,GREEN,30A |
2 | ||
| 90982-09004 |
ST16# 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
ST16# 10A,10A |
6 | ||
| 90982-09005 |
ST16# 7.5A,7.5A |
4 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
ST16# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20080 |
ST16# UPR |
1 | ||
| 82661-20110 |
ST16# LWR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20080 |
ST16# UPR |
1 | ||
| 82661-20110 |
ST16# LWR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
ST16# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14042 |
ST16# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14020 |
ST16#..(CP,LB)..GT |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
ST16#..5F |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
ST16# IGNITION MAIN |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
ST16# TAIL,DENSO |
1 | ||
| 90987-02002 |
ST16# TAIL,MARUKO |
1 | ||
| 90987-02006 |
ST16# HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
ST16# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
ST16# A.C FAN NO.2 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
ST16# A.C FAN NO.3 |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 85926-30020 |
ST16# A.C MG RELAY |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-32010 |
ST16# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39105 |
ST161 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-32010 |
ST161 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-20210 |
ST161 |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90464-00329 | ||||
| 91651-40620 | ||||

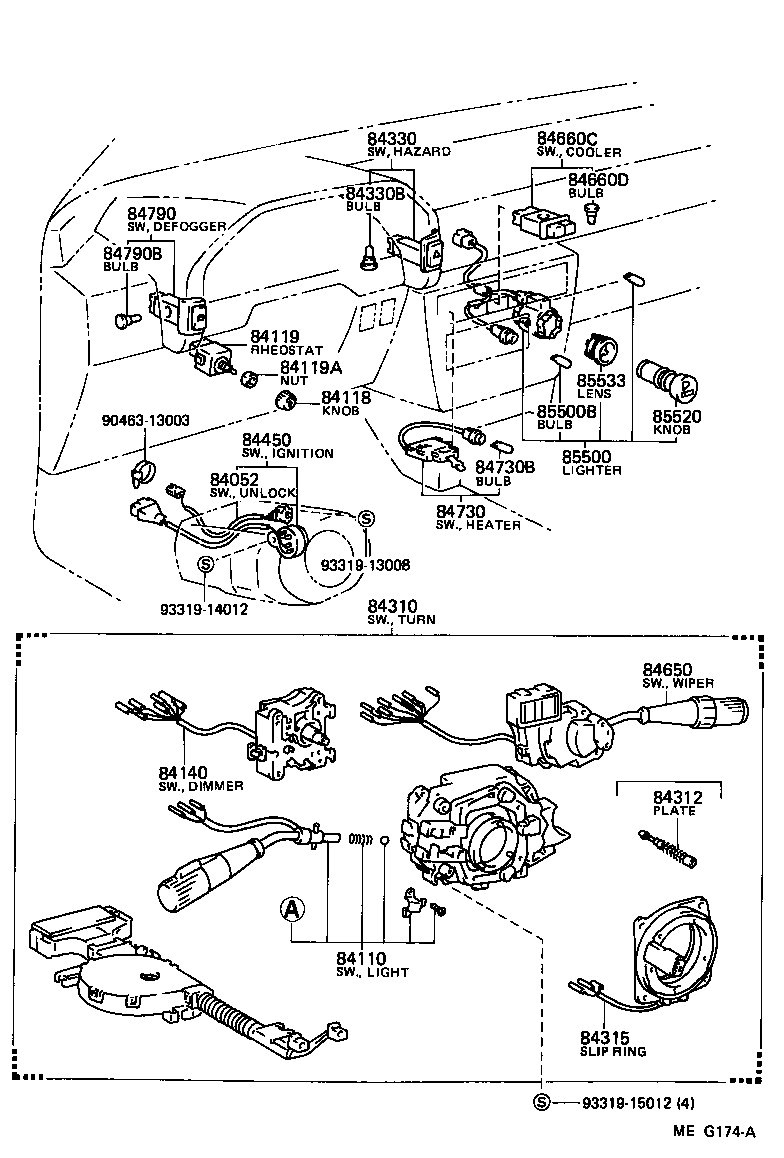

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-10020 |
ST16# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29475 |
ST16#..(CP,LB)..(GT,GTS) W/*VIW |
1 | ||
| 84112-29465 |
ST16#..GT,ST |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
ST16# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20140 |
ST16# |
1 | ||
| 84119-20150 |
ST16#..(CP,LB)..GT W/*DS |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
ST16# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20180 |
ST16#..(CP,LB)..(GT,GTS) W/*VIW |
1 | ||
| 84140-20170 |
ST16#..GT,ST |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2B600 |
ST16#..GT,ST |
1 | ||
| 84310-2B580 |
ST16#..LB..GT W/*RW |
1 | ||
| 84310-2B650 |
ST16#..(CP,LB)..GT W/*VIW |
1 | ||
| 84310-2B630 |
ST16#..(CP,LB)..GT W/*CRC & *VIW |
1 | ||
| 84310-2B610 |
ST16#..LB W/*RW & *VIW |
1 | ||
| 84310-2B640 |
ST16#..LB W/*RW & *CRC |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
ST16# |
1 | ||
| 84315 - SLIPRING, HORN CONTACT | ||||
| 84315-20010 |
ST16#..GT,GTS W/*CRC & *VIW |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-2017002 |
ST16#..CP,LB RED,RED,TRIM3# |
1 | ||
| 84332-2017006 |
ST16#..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 84332-2017003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84332-2017004 |
ST16#..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10160 |
ST16# 12V 1.8W,12V 1.8W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14060 |
ST16# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-20840 |
ST16#..GT,ST |
1 | ||
| 84652-2B250 |
ST16#..LB W/*RW & *CRC |
1 | ||
| 84652-2B210 |
ST16#..(CP,LB)..GT W/*VIW |
1 | ||
| 84652-2B010 |
ST16#..LB W/*RW & *VIW |
1 | ||
| 84652-20890 |
ST16#..LB..GT W/*RW |
1 | ||
| 84652-20860 |
ST16#..(CP,LB)..GT W/*CRC |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20100 |
ST16#..ST |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
ST16#..ST 14V 0.08A,12V 1.12W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20160 |
ST16#..ST |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
ST16#..ST 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-2017003 |
ST16#..(CP,LB)..(GT,ST)..USA GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84790-2018002 |
ST16#..CP,LB RED,W/DEFOGGER TIMER,RED,TRIM3# |
1 | ||
| 84790-2018003 |
ST16#..CP,LB GRAY,W/DEFOGGER TIMER,SHADOW GRAY,TRIM1# |
1 | ||
| 84790-2017002 |
ST16#..(CP,LB)..(GT,ST)..USA RED,RED,TRIM3# |
1 | ||
| 84790-2018004 |
ST16#..CP,LB BLUE,W/DEFOGGER TIMER,DEEP BLUE,TRIM8# |
1 | ||
| 84790-2017004 |
ST16#..(CP,LB)..(GT,ST)..USA BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 84790-2017006 |
ST16#..(CP,LB)..(GT,ST)..USA BROWN,BROWN,TRIM4# |
1 | ||
| 84790-2018006 |
ST16#..CP,LB BROWN,W/DEFOGGER TIMER,BROWN,TRIM4# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10160 |
ST16#..(CP,LB)..(GT,ST)..USA 12V 1.8W,12V 1.8W |
1 | ||
| 84999-10090 |
ST16#..CP,LB 12V 1.8W,12V 1.8W,W/DEFOGGER TIMER |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20210 |
ST16# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
ST16# 14V 1.4W |
2 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
ST16# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
ST16# |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

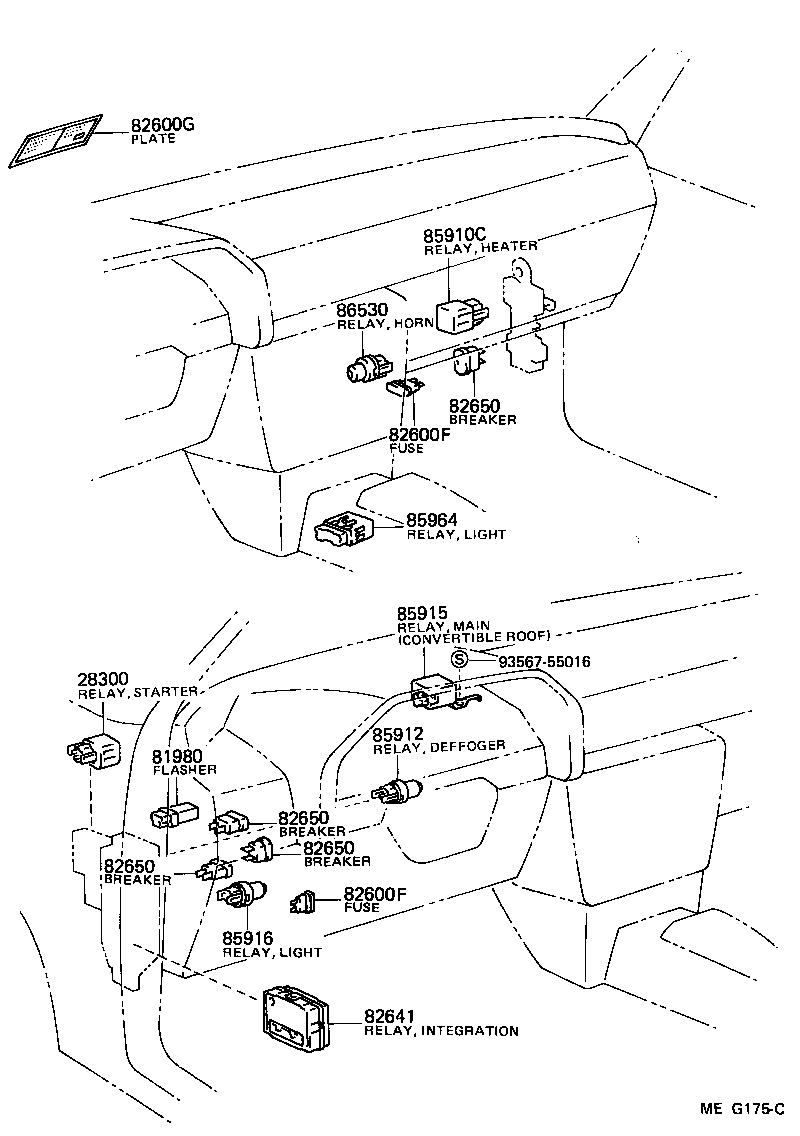

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
2SELC,3S#..ST16#..5F |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
ST16# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
ST16# 15A,15A |
11 | ||
| 90982-07011 |
ST16# 30A,GREEN,30A |
2 | ||
| 90982-09004 |
ST16# 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
ST16# 10A,10A |
6 | ||
| 90982-09005 |
ST16# 7.5A,7.5A |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
ST16# 15A,15A |
11 | ||
| 90982-07011 |
ST16# 30A,GREEN,30A |
2 | ||
| 90982-09004 |
ST16# 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
ST16# 10A,10A |
6 | ||
| 90982-09005 |
ST16# 7.5A,7.5A |
4 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-20010 |
ST16# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20030 |
ST16# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
ST16#..(CP,LB)..(GT,GTS) 14A,14A |
1 | ||
| 82650-20011 |
ST16# 30A,30A |
4 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
ST16#..(CP,LB)..(GT,GTS) 14A,14A |
1 | ||
| 82650-20011 |
ST16# 30A,30A |
4 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
ST16#..(CP,LB)..(GT,GTS) 14A,14A |
1 | ||
| 82650-20011 |
ST16# 30A,30A |
4 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
ST16#..(CP,LB)..(GT,GTS) 14A,14A |
1 | ||
| 82650-20011 |
ST16# 30A,30A |
4 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
ST16# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
ST16#..CP,LB MARUKO |
1 | ||
| 90987-02004 |
ST16#..CP,LB DENSO |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
ST16# IGNITION MAIN |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
ST16# TAIL,DENSO |
1 | ||
| 90987-02002 |
ST16# TAIL,MARUKO |
1 | ||
| 90987-02006 |
ST16# HEAD |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-20011 |
ST16# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
ST16# MARUKO |
1 | ||
| 90987-02004 |
ST16# DENSO |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||

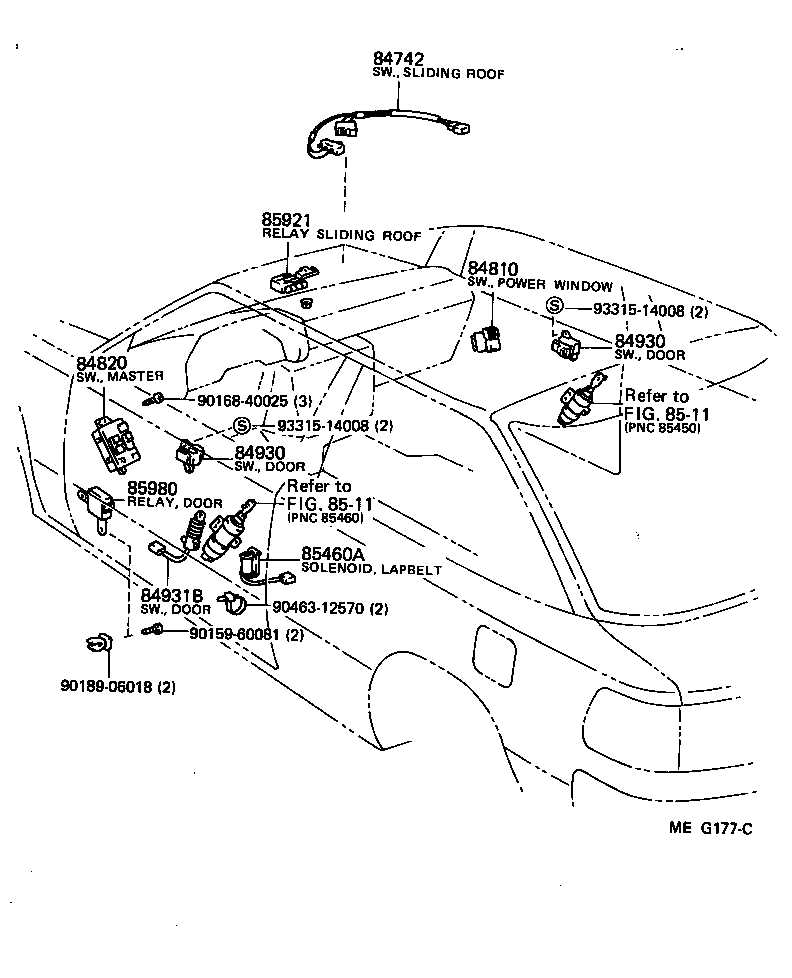

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-20020 |
ST16#..CP,LB |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
ST16#..GT,GTS |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20140 |
ST16#..(CP,LB)..(GT,GTS) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-20020 |
ST16#..GT,GTS RH |
1 | ||
| 84930-20030 |
ST16#..GT,GTS LH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-20020 |
ST16#..GT,GTS RH |
1 | ||
| 84930-20030 |
ST16#..GT,GTS LH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20070 |
ST16#..GT,GTS |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20020 |
ST16#..CP,LB |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20060 |
ST16#..(CP,LB)..(GT,GTS) |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90168-40025 | ||||
| 90189-06018 | ||||
| 90463-12570 | ||||
| 93315-14008 | ||||
| Linked diagrams | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
