ST161L-BLMVEA (1985)
Toyota Celica
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12270 | ||||
| 82711-12450 | ||||
| 82711-14110 | ||||
| 82711-14350 | ||||
| 82711-1A160 | ||||
| 82711-1A170 | ||||
| 82711-1A180 | ||||
| 82711-1A210 | ||||
| 82711-1A330 | ||||
| 82711-1A390 | ||||
| 82711-20490 | ||||
| 82711-20570 | ||||
| 82711-20850 | ||||
| 82711-22270 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-30660 | ||||
| 82711-32090 | ||||
| 82711-32100 | ||||
| 82711-32270 | ||||
| 82711-32460 | ||||
| 82711-32490 | ||||
| 82711-32500 | ||||
| 90464-00284 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82817-20690 | ||||
| 82817-32010 | ||||
| 82819-20140 | ||||
| 90950-01061 | ||||
| 90950-01066 | ||||

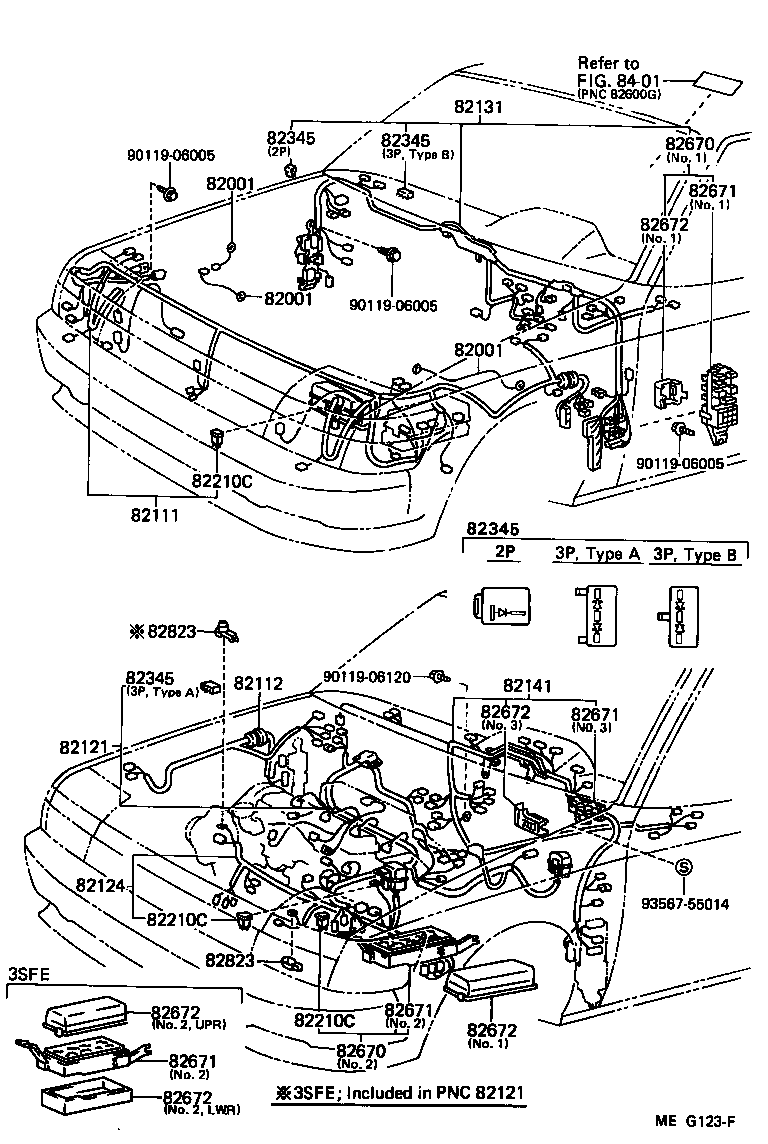

(8508- )GT,ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
ST16# FENDER RH |
1 | ||
| 90980-07264 |
ST16# TRANSMISSION-FENDER LH |
1 | ||
| 90980-07205 |
ST161 ENGINE HANGGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
ST16# FENDER RH |
1 | ||
| 90980-07264 |
ST16# TRANSMISSION-FENDER LH |
1 | ||
| 90980-07205 |
ST161 ENGINE HANGGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
ST16# FENDER RH |
1 | ||
| 90980-07264 |
ST16# TRANSMISSION-FENDER LH |
1 | ||
| 90980-07205 |
ST161 ENGINE HANGGER |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-20490 |
ST16# |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-20130 |
ST161..5F |
1 | ||
| 82112-20140 |
ST161..5F..GT W/*CRC |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-20541 |
ST161..5F |
1 | ||
| 82121-20540 |
ST161..5F |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-20040 |
ST161 |
1 | ||
| 82124-20041 |
ST161 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-2B420 |
ST161..ST |
1 | ||
| 82131-2B440 |
ST161..GT |
1 | ||
| 82131-2B460 |
ST16#..GT,GTS W/*CRC OR *PW |
1 | ||
| 82131-2B450 |
ST161..GT W/*MIH OR *RW(W/O *CRC OR *PW) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-20450 |
ST161..5F..GT W/*CRC & *AS |
1 | ||
| 82141-20452 |
ST161..5F..GT W/*CRC & *AS |
1 | ||
| 82141-20440 |
ST161..5F W/*AS |
1 | ||
| 82141-20460 |
ST161..GT W/*DS |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
ST16# 30A,TERM.:FEMALE,PNK,30A,TYPE A |
3 | ||
| 90982-08189 |
ST16# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08223 |
ST16# 30A,TERM.:MALE,PNK,30A,TYPE B |
1 | ||
| 90982-08203 |
ST16# 80A,TERM.:MALE,BLK,80A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
ST16# 30A,TERM.:FEMALE,PNK,30A,TYPE A |
3 | ||
| 90982-08189 |
ST16# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08223 |
ST16# 30A,TERM.:MALE,PNK,30A,TYPE B |
1 | ||
| 90982-08203 |
ST16# 80A,TERM.:MALE,BLK,80A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
ST16# 30A,TERM.:FEMALE,PNK,30A,TYPE A |
3 | ||
| 90982-08189 |
ST16# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08223 |
ST16# 30A,TERM.:MALE,PNK,30A,TYPE B |
1 | ||
| 90982-08203 |
ST16# 80A,TERM.:MALE,BLK,80A |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST16# 3P,TYPE B |
1 | ||
| 82345-12020 |
ST16#..CP,LB 2P |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST16# 3P,TYPE B |
1 | ||
| 82345-12020 |
ST16#..CP,LB 2P |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST16# 3P,TYPE B |
1 | ||
| 82345-12020 |
ST16#..CP,LB 2P |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST16# 3P,TYPE B |
1 | ||
| 82345-12020 |
ST16#..CP,LB 2P |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20050 |
ST16# NO.2 |
1 | ||
| 82670-20030 |
ST16# NO.1 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20050 |
ST16# NO.2 |
1 | ||
| 82670-20030 |
ST16# NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-20030 |
ST16# NO.1 |
1 | ||
| 82671-20040 |
ST16# NO.2 |
1 | ||
| 82671-20050 |
ST16# NO.3 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-20030 |
ST16# NO.1 |
1 | ||
| 82671-20040 |
ST16# NO.2 |
1 | ||
| 82671-20050 |
ST16# NO.3 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-20030 |
ST16# NO.1 |
1 | ||
| 82671-20040 |
ST16# NO.2 |
1 | ||
| 82671-20050 |
ST16# NO.3 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-20030 |
ST16# NO.1 |
1 | ||
| 82671-20040 |
ST16# NO.2 |
1 | ||
| 82671-20050 |
ST16# NO.3 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-20040 |
ST16# NO.2 |
1 | ||
| 82672-20020 |
ST16# NO.1 |
1 | ||
| 82672-20080 |
ST16# NO.3 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-20040 |
ST16# NO.2 |
1 | ||
| 82672-20020 |
ST16# NO.1 |
1 | ||
| 82672-20080 |
ST16# NO.3 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-20040 |
ST16# NO.2 |
1 | ||
| 82672-20020 |
ST16# NO.1 |
1 | ||
| 82672-20080 |
ST16# NO.3 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-20040 |
ST16# NO.2 |
1 | ||
| 82672-20020 |
ST16# NO.1 |
1 | ||
| 82672-20080 |
ST16# NO.3 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-20040 |
ST16# NO.2 |
1 | ||
| 82672-20020 |
ST16# NO.1 |
1 | ||
| 82672-20080 |
ST16# NO.3 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
ST16#..GT,ST STARTER |
1 | ||
| 82823-20040 |
ST161 ALTERNATOR |
1 | ||
| 82823-22050 |
ST161 ALTERNATOR |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
ST16#..GT,ST STARTER |
1 | ||
| 82823-20040 |
ST161 ALTERNATOR |
1 | ||
| 82823-22050 |
ST161 ALTERNATOR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06120 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

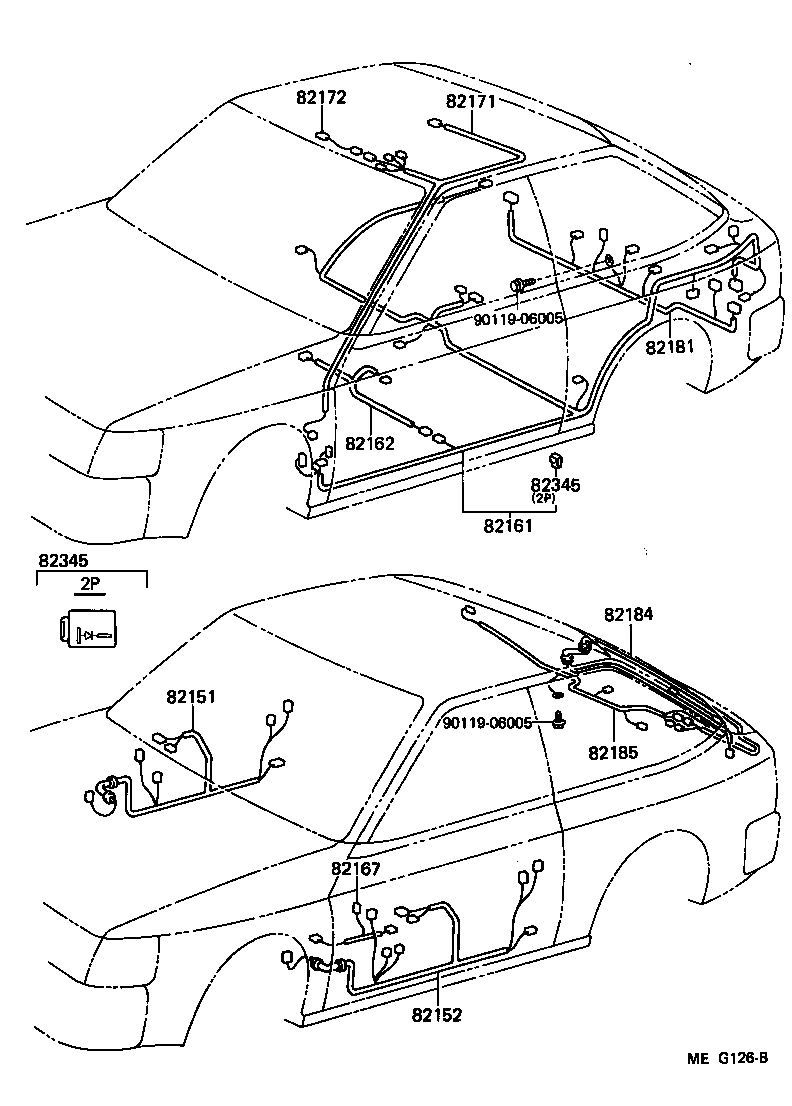

(8508- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-20250 |
ST16#..ST |
1 | ||
| 82151-20340 |
ST16#..(CP,LB)..(GT,GTS) |
1 | ||
| 82151-20350 |
ST16#..(CP,LB)..(GT,GTS) W/*PW |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-20230 |
ST16#..ST |
1 | ||
| 82152-20320 |
ST16#..(CP,LB)..(GT,GTS) |
1 | ||
| 82152-20330 |
ST16#..(CP,LB)..(GT,GTS) W/*PW |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-20650 |
ST16#..LB W/*PW OR *RW |
1 | ||
| 82161-20640 |
ST16#..LB..GT |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20210 |
ST16#..CP,LB W/SUN ROOF |
1 | ||
| 82171-20200 |
ST16#..CP,LB |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-20010 |
ST16# |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20150 |
ST16#..LB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-20060 |
ST16#..LB..GT |
1 | ||
| 82184-20070 |
ST16#..LB W/*RW |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-20130 |
ST16#..LB W/*RW |
1 | ||
| 82185-20120 |
ST16#..LB..GT |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST16# 3P,TYPE B |
1 | ||
| 82345-12020 |
ST16#..CP,LB 2P |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST16# 3P,TYPE B |
1 | ||
| 82345-12020 |
ST16#..CP,LB 2P |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||

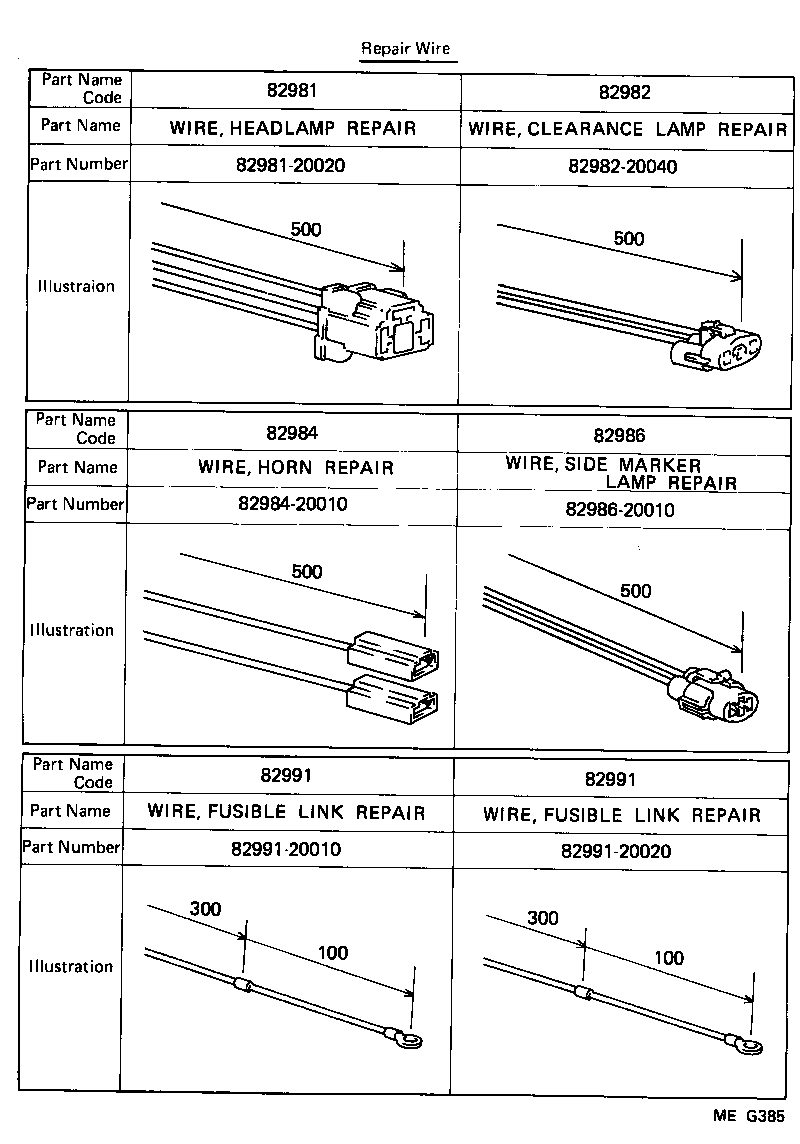

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20020 |
ST16# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20040 |
ST16# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
ST16# |
1 | ||
| 82986 - WIRE, SIDE MARKER LAMP REPAIR | ||||
| 82986-20010 |
ST16# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20010 |
ST16# 0.85R |
1 | ||
| 82991-20020 |
ST16# 1.25L |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20010 |
ST16# 0.85R |
1 | ||
| 82991-20020 |
ST16# 1.25L |
1 | ||
| Common parts | ||||
| 82981-20020 | ||||
| 82982-20040 | ||||
| 82984-20010 | ||||
| 82986-20010 | ||||
| 82991-20010 | ||||
| 82991-20020 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20720 | ||||
| 82711-22220 | ||||
| 82711-2B160 | ||||
| 82711-32620 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32780 | ||||
