ST161L-BLMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

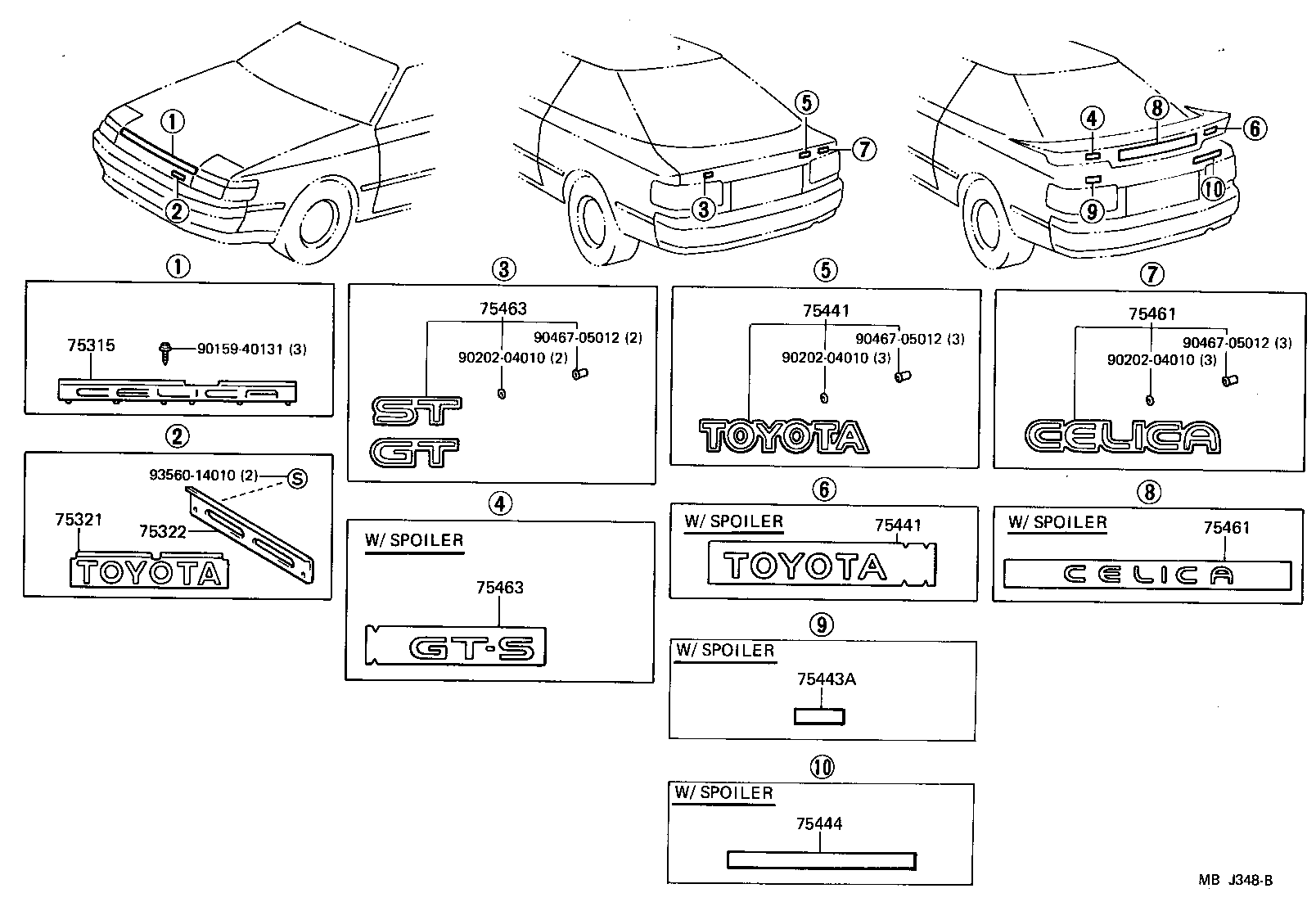

Click highlighted areas on diagram

diagram 75315 75321 75322 75441 75441 75443A 75444 75461 75461 75463 75463 9015940131 9020204010 9020204010 9020204010 9046705012 9046705012 9046705012 9356014010
Part # Description Qty Price
75315 - ORNAMENT, RADIATOR GRILLE
75315-20040

ST16#

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20420

ST16#

TOYOTA

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-20060

ST16#

 1
75441 - PLATE, REAR NAME, NO.1
75443-20130

ST16#..GT,ST

TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75443-20130

ST16#..GT,ST

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-20220

ST16#..GT,ST

CELICA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-20220

ST16#..GT,ST

CELICA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-20250

ST16#..GT

GT

 1
75444-20230

ST16#..ST

ST

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-20250

ST16#..GT

GT

 1
75444-20230

ST16#..ST

ST

 1
Common parts
90159-40131
90202-04010
90467-05012
93560-14010
