ST161L-BLMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LB

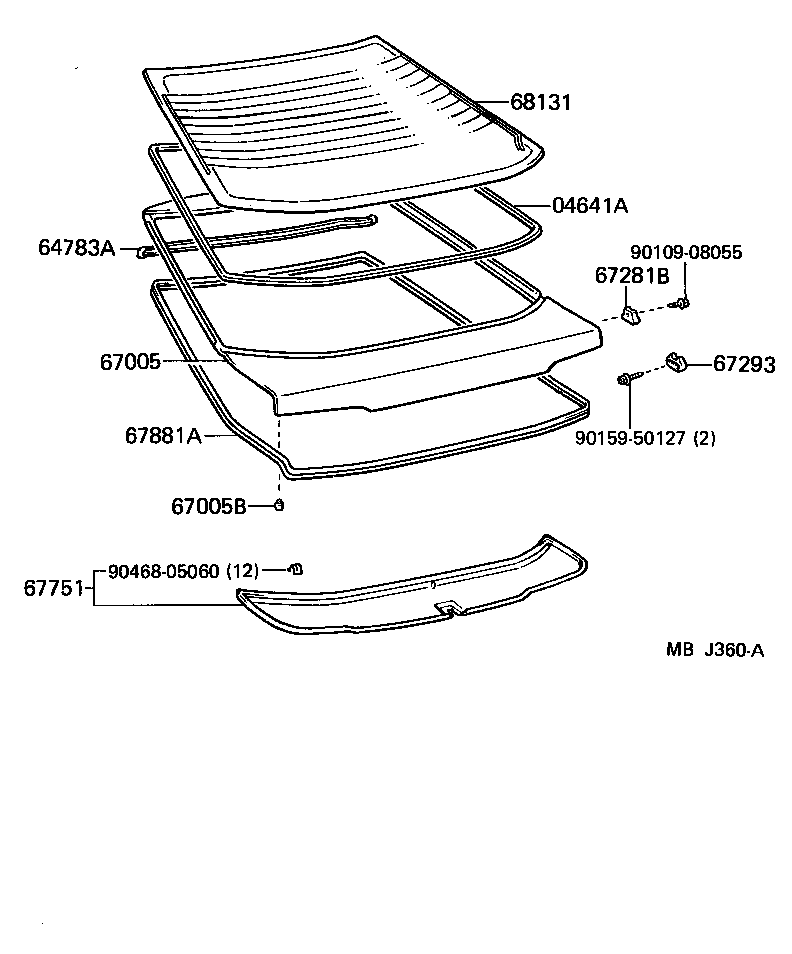

Click highlighted areas on diagram

diagram 04641A 64783A 67005 67005B 67281B 67293 67751 67881A 68131 9010908055 9015950127 9046805060
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
04562-30040

ST16#..LB

 1
64783A - TRIM, BACK WINDOW PANEL, UPPER
64783-20020

ST16#..LB

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-20630

ST161..LB

W/*RW

 1
67005-20640

ST161..LB

W/O *RW

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09041

ST16#..LB

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-20020

ST16#..LB

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-20020

ST16#..LB

 2
67751 - BOARD, BACK DOOR TRIM
64781-2005006

ST16#..LB

BROWN,BROWN,TRIM4#

 1
64781-2005004

ST16#..LB

BLUE,DEEP BLUE,TRIM8#

 1
64781-2005002

ST16#..LB

RED,RED,TRIM3#

 1
64781-2005003

ST16#..LB

GRAY,SHADOW GRAY,TRIM1#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-20050

ST16#..LB

 1
68131 - GLASS, BACK DOOR
68131-20150

ST16#..LB..USA

*EHTT,T=4.0,*EHTT,T=4.0

 1
68131-20160

ST16#..LB

*EHTT,T=4.0,HEAVY *DEF,*EHTT,T=4.0

 1
Common parts
90109-08055
90159-50127
90468-05060
