ST161L-BLMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

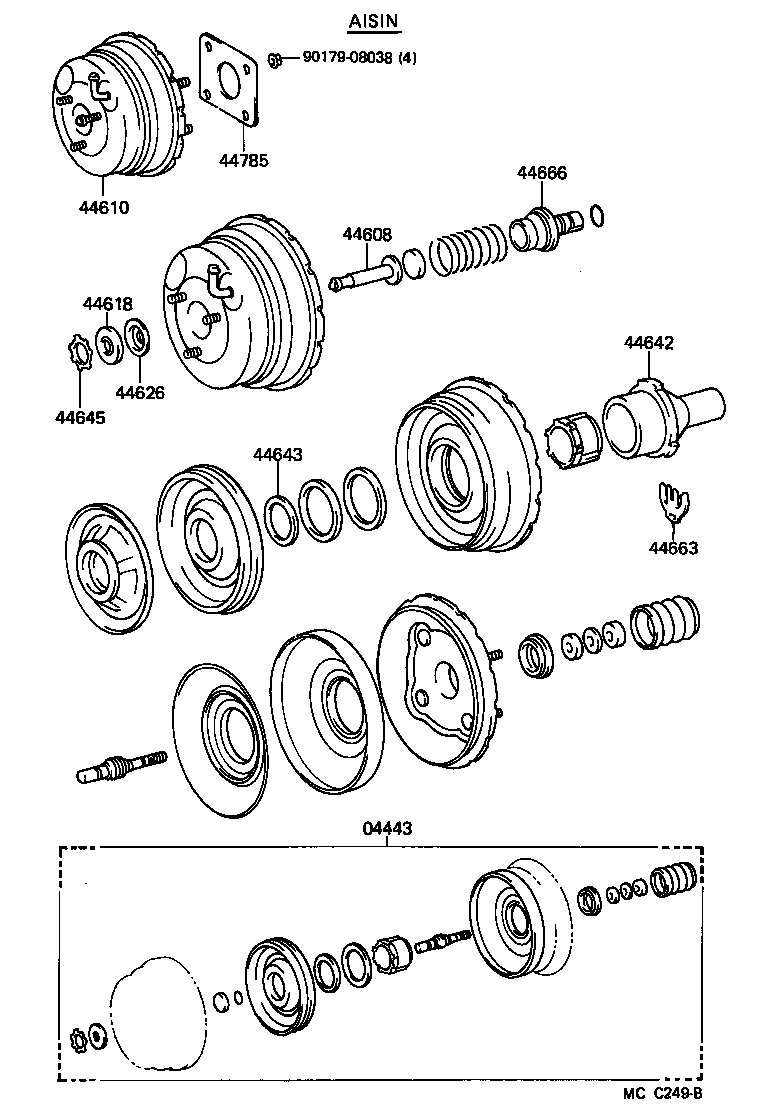

diagram 04443 44608 44610 44618 44626 44642 44643 44645 44663 44666 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-20450

ST16#

JKC

 1
04443-20440

ST16#

AISIN

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-20800

ST16#

AISIN

 1
44608-20810

ST16#

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-20800

ST16#

 1
44618 - SEAL, BOOSTER BODY
44621-14030

ST16#

 1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010

ST16#

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

ST16#

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

ST16#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

ST16#

JKC

 1
44628-60010

ST16#

AISHIN

 1
44663 - KEY, VALVE STOPPER
44635-20800

ST16#

 1
44666 - CASE, REACTION DISC
44657-20800

ST16#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

ST16#

 1
Common parts
90179-08038

(8508- )

Click highlighted areas on diagram

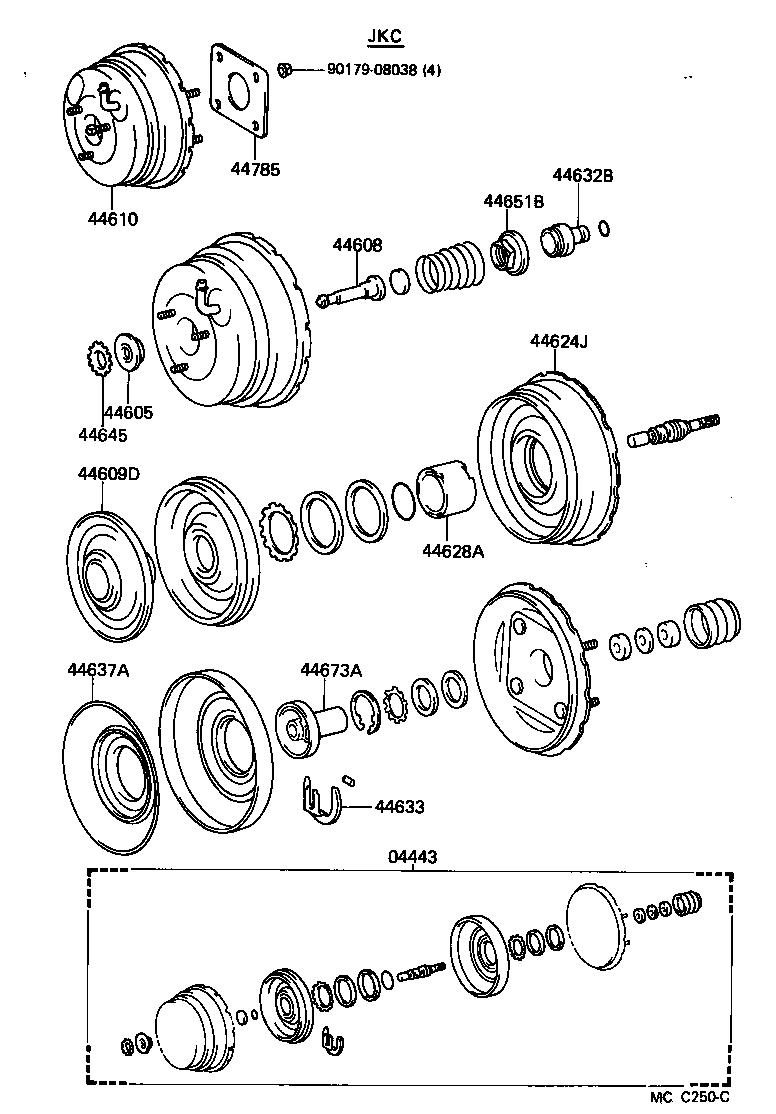

diagram 04443 44605 44608 44609D 44610 44624J 44628A 44632B 44633 44637A 44645 44651B 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-20450

ST16#

JKC

 1
04443-20440

ST16#

AISIN

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-30350

ST16#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-20800

ST16#

AISIN

 1
44608-20810

ST16#

JKC

 1
44609D - PLATE & RETAINER SUB-ASSY, BOOSTER
44609-20810

ST16#

 1
44610 - BOOSTER ASSY, BRAKE
44610-20800

ST16#

 1
44624J - PLATE, BOOSTER CENTER
44624-20810

ST16#

 1
44628A - BODY, BOOSTER CENTER
44628-20810

ST16#

 1
44632B - HUB, BOOSTER REACTION DISK
44632-20810

ST16#

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-20810

ST16#

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-20810

ST16#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

ST16#

JKC

 1
44628-60010

ST16#

AISHIN

 1
44651B - NUT, BOOSTER
44651-20810

ST16#

 1
44673A - BODY, BOOSTER VALVE
44673-20810

ST16#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

ST16#

 1
Common parts
90179-08038

(8508- )

Click highlighted areas on diagram

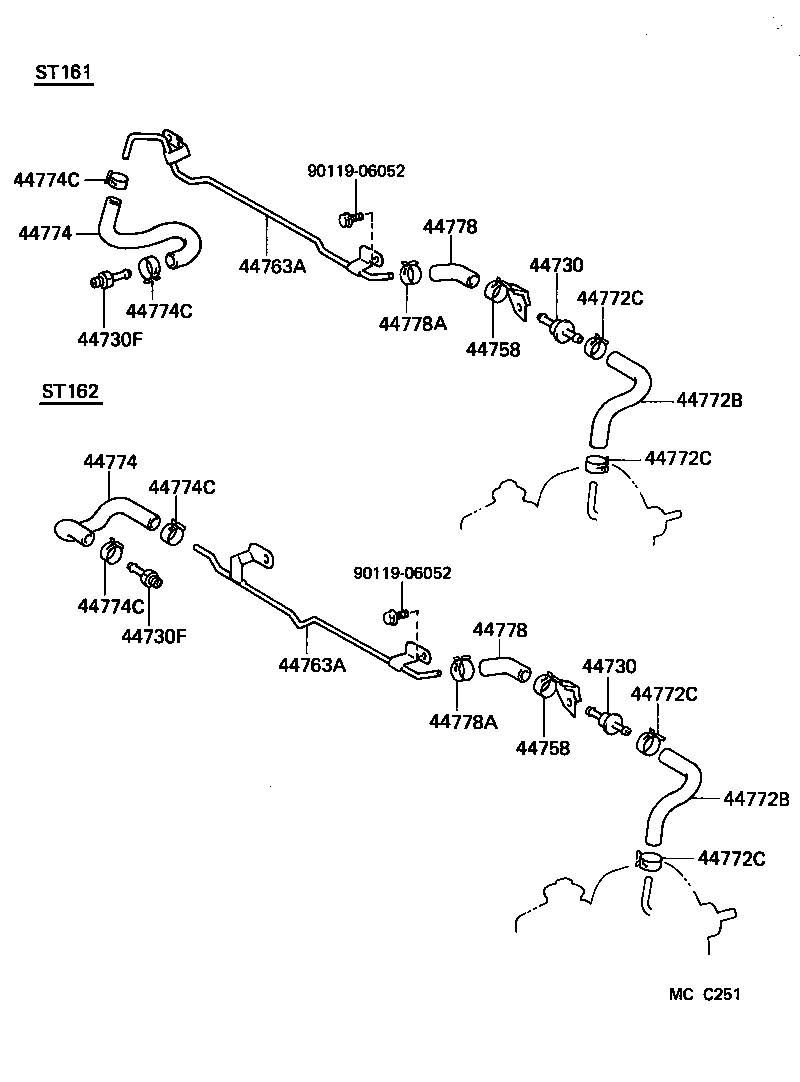

diagram 44730 44730 44730F 44730F 44758 44758 44763A 44763A 44772B 44772B 44772C 44772C 44772C 44772C 44774 44774 44774C 44774C 44774C 44774C 44778 44778 44778A 44778A 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

ST16#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

ST16#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

ST161

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

ST161

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20150

ST16#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20150

ST16#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-20070

ST161

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-20070

ST161

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20170

ST16#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20170

ST16#

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

ST16#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

ST16#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

ST16#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

ST16#

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-20060

ST161

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-20060

ST161

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

ST16#

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

ST16#

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

ST16#

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

ST16#

 2
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-20040

ST16#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-20040

ST16#

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002

ST16#

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002

ST16#

 1
Common parts
90119-06052
