ST161L-BLMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

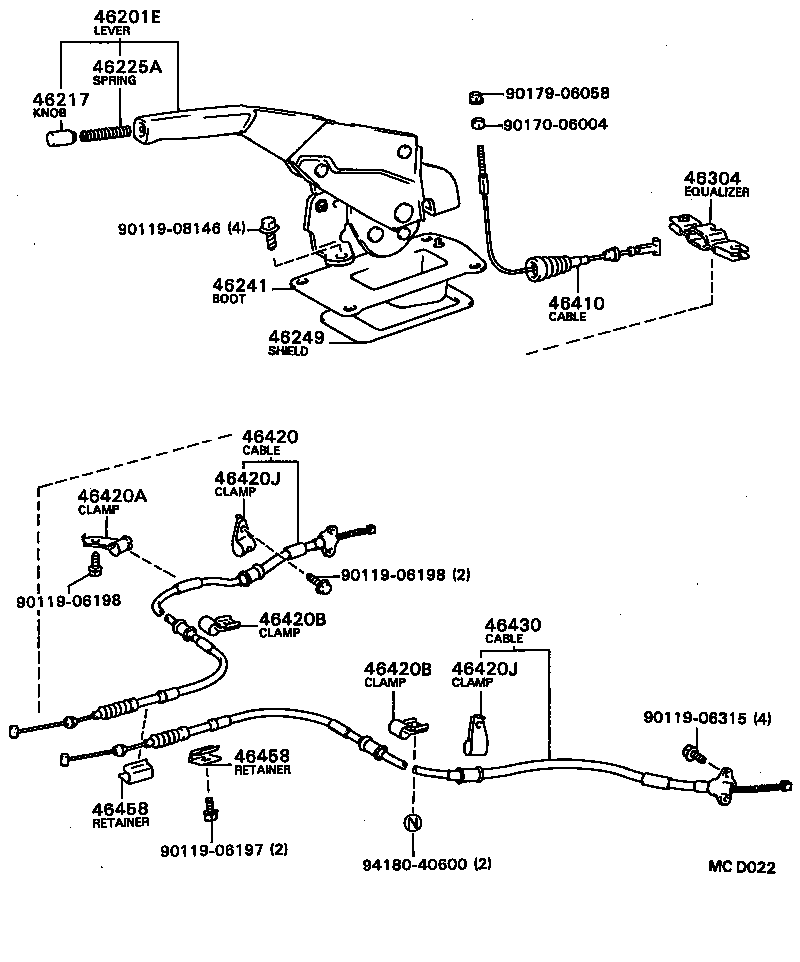

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46249 46304 46410 46420 46420A 46420B 46420B 46420J 46420J 46430 46458 46458 9011906197 9011906198 9011906198 9011906315 9011908146 9017006004 9017906058 9418040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-2016002

ST16#..GT,ST

RED,RED,TRIM3#

 1
46201-2016003

ST16#..GT,ST

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
46201-2016004

ST16#..GT,ST

DEEP BLUE,DEEP BLUE,TRIM8#

 1
46201-2016006

ST16#..GT,ST

BROWN,SABLE,TRIM4#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-2002003

ST16#

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
46217-2002026

ST16#

BROWN,BROWN,TRIM4#

 1
46217-2002022

ST16#

RED,WINE,TRIM3#

 1
46217-2002014

ST16#

DEEP BLUE,DEEP BLUE,TRIM8#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10069

ST16#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20030

ST16#..GT,ST

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20020

ST16#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-20040

ST16#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-20250

ST16#..GT,ST

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-29015

ST16#..GT,ST

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01285

ST16#

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01016

ST16#

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01016

ST16#

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01224

ST16#

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01224

ST16#

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-29025

ST16#..GT,ST

 1
46458 - RETAINER, CABLE
46458-20020

ST16#

 2
46458 - RETAINER, CABLE
46458-20020

ST16#

 2
Common parts
90119-06197
90119-06198
90119-06315
90119-08146
90170-06004
90179-06058
94180-40600
