ST161L-BLMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8608)ST161

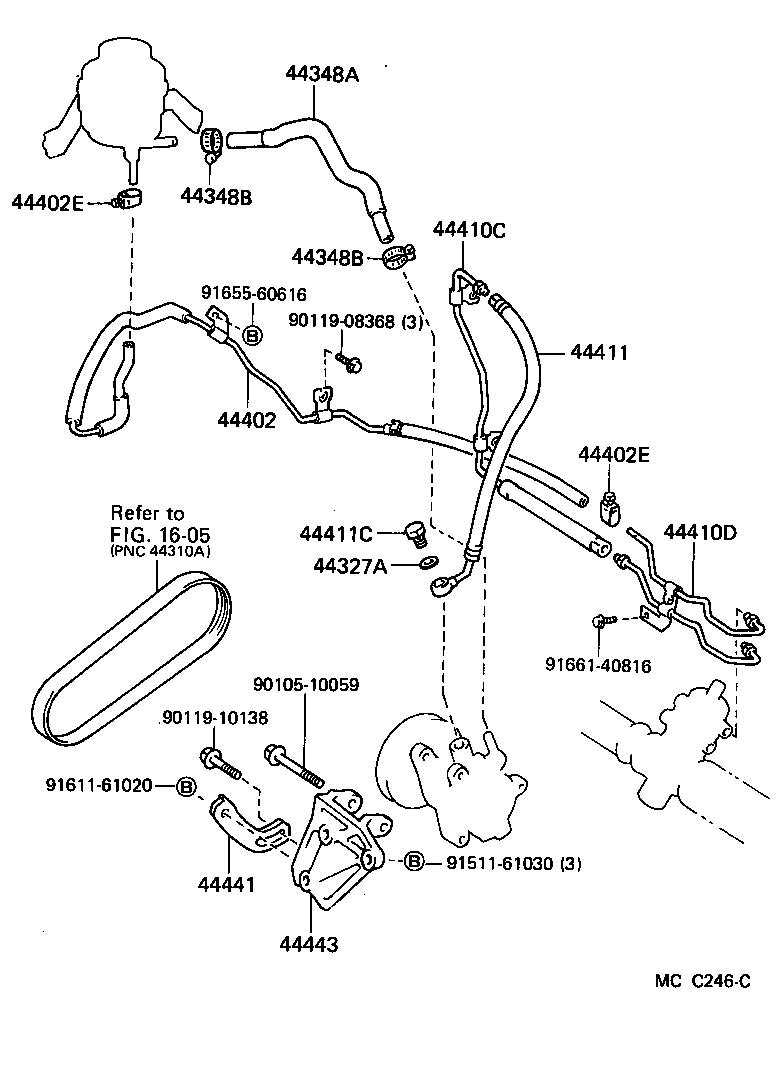

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44348B 44348B 44402 44402E 44402E 44410C 44410D 44411 44411C 44441 44443 9010510059 9011908368 9011910138 9151161030 9161161020 9165560616 9166140816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

ST16#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20110

ST16#

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

ST16#

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

ST16#

 2
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-20110

ST161

 1
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

ST16#

GEAR SIDE

 1
90467-16008

ST16#

RESERVOIE SIDE

 1
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

ST16#

GEAR SIDE

 1
90467-16008

ST16#

RESERVOIE SIDE

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20270

ST16#

 1
44410D - TUBE ASSY, PRESSURE FEED, NO.2
44410-20260

ST16#

 1
44411 - HOSE, PRESSURE FEED
44411-20170

ST16#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

ST16#

 1
44441 - BRACKET, PUMP, FRONT
44441-32010

ST16#

 1
44443 - BRACKET, PUMP
44443-20060

ST161

 1
Common parts
90105-10059
90119-08368
90119-10138
91511-61030
91611-61020
91655-60616
91661-40816
Linked diagrams
1605
