ST161L-BLMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8608)2SELC

Click highlighted areas on diagram

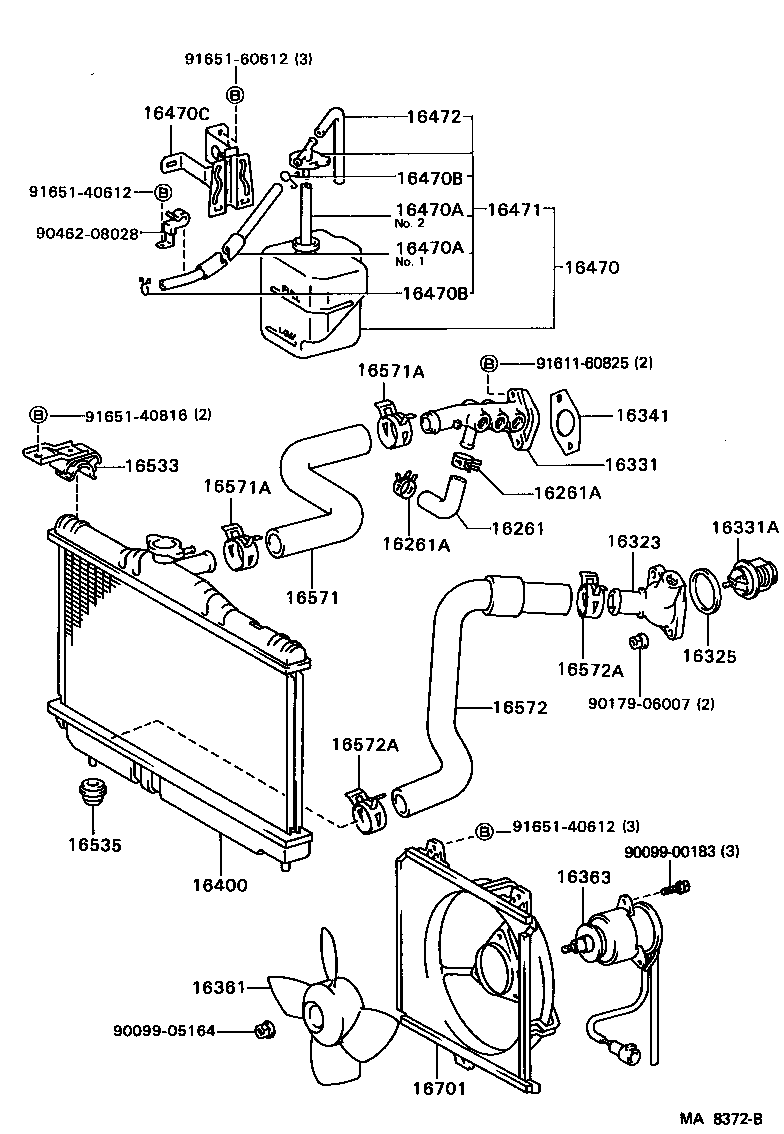

diagram 16261 16261A 16261A 16323 16325 16331 16331A 16341 16361 16363 16400 16470 16470A 16470A 16470B 16470B 16470C 16471 16472 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16701 9009900183 9009905164 9017906007 9046208028 9161160825 9165140612 9165140612 9165140816 9165160612
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-63010

2SELC..ST161

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-21001

2SELC,3SFE..ST16#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-21001

2SELC,3SFE..ST16#

 2
16323 - HOUSING, WATER INLET
16323-63020

2SELC..ST161

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2SELC,3S#..ST16#

 1
16331 - OUTLET, WATER
16331-63080

2SELC..ST161..5F

 1
16331A - THERMOSTAT
90916-03046

2SELC,3S#..ST16#

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-63010

2SELC,3S#..ST16#

 1
16361 - FAN
16361-63040

2SELC,3S#..ST16#..5F

 1
16363 - MOTOR, COOLING FAN
16363-10010

2SELC,3S#..ST16#..5F

 1
16400 - RADIATOR ASSY
16400-63110

2SELC..ST161..5F

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-74010

2SELC,3S#..ST16#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2SELC,3S#..ST16#

*H,L=530,NO.1

 1
90099-33080

2SELC,3S#..ST16#

*H,L=140,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2SELC,3S#..ST16#

*H,L=530,NO.1

 1
90099-33080

2SELC,3S#..ST16#

*H,L=140,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2SELC,3S#..ST16#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2SELC,3S#..ST16#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-74010

2SELC,3S#..ST16#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-74010

2SELC,3S#..ST16#

 1
16472 - HOSE, BREATHER
85338-14030

2SELC,3S#..ST16#

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-74010

2SELC,3S#..ST16#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-74010

2SELC,3S#..ST16#

 2
16571 - HOSE, RADIATOR, INLET
16571-63020

2SELC..ST161

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33002

2SELC,3S#..ST16#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33002

2SELC,3S#..ST16#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-74030

2SELC,3S#..ST16#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33002

2SELC,3S#..ST16#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33002

2SELC,3S#..ST16#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-74020

2SELC,3S#..ST16#..5F

 1
Common parts
90099-00183
90099-05164
90179-06007
90462-08028
91611-60825
91651-40612
91651-40816
91651-60612

(8508- )

Click highlighted areas on diagram

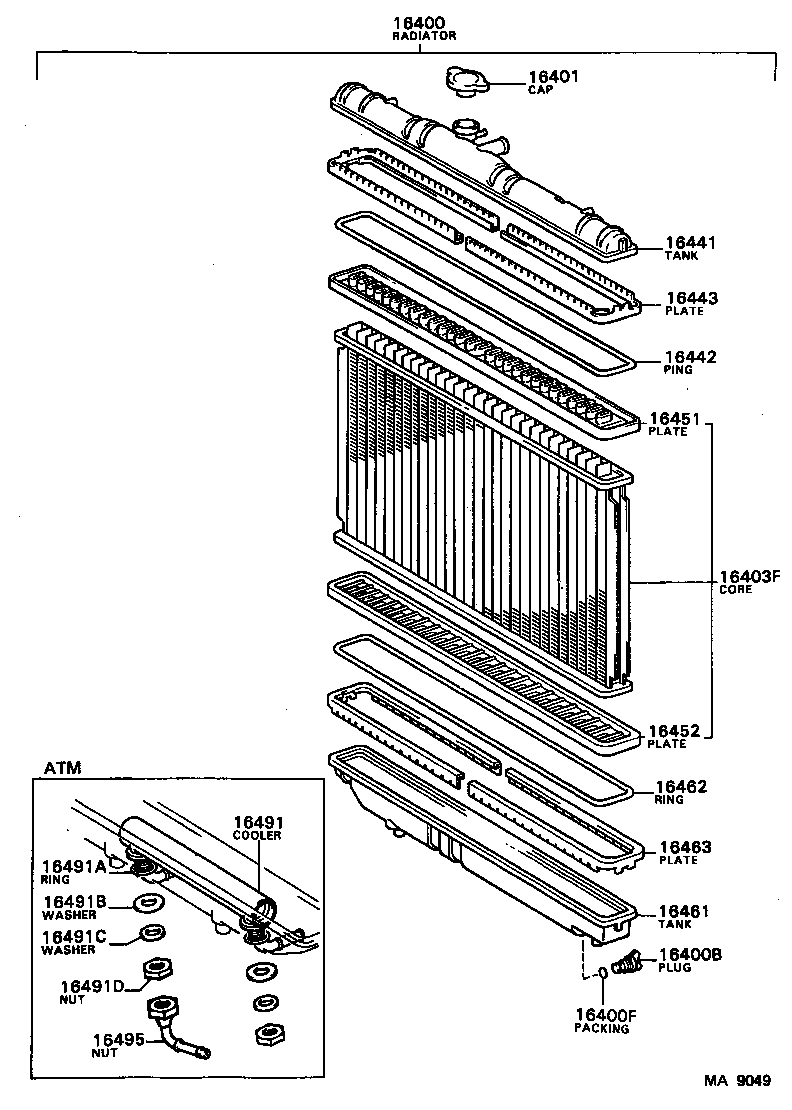

diagram 16400 16400B 16400F 16401 16403F 16441 16442 16443 16451 16452 16461 16462 16463 16491 16491A 16491B 16491C 16491D 16495
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-63110

2SELC..ST161..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

2SELC,3S#..ST16#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

2SELC,3S#..ST16#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

2SELC,3S#..ST16#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-15190

2SELC,3SGELC..ST16#..5F

 1
16441 - TANK, RADIATOR, UPPER
16441-63030

2SELC..ST161

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-63030

2SELC,3S#..ST16#

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-15321

2SELC,3S#..ST16#

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-63030

2SELC,3S#..ST16#

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-63030

2SELC,3S#..ST16#

 1
16461 - TANK, RADIATOR, LOWER
16461-63070

2SELC..ST161..5F

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-63030

2SELC,3S#..ST16#

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-15320

2SELC,3S#..ST16#

 2
