ST161L-BCPVEK (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

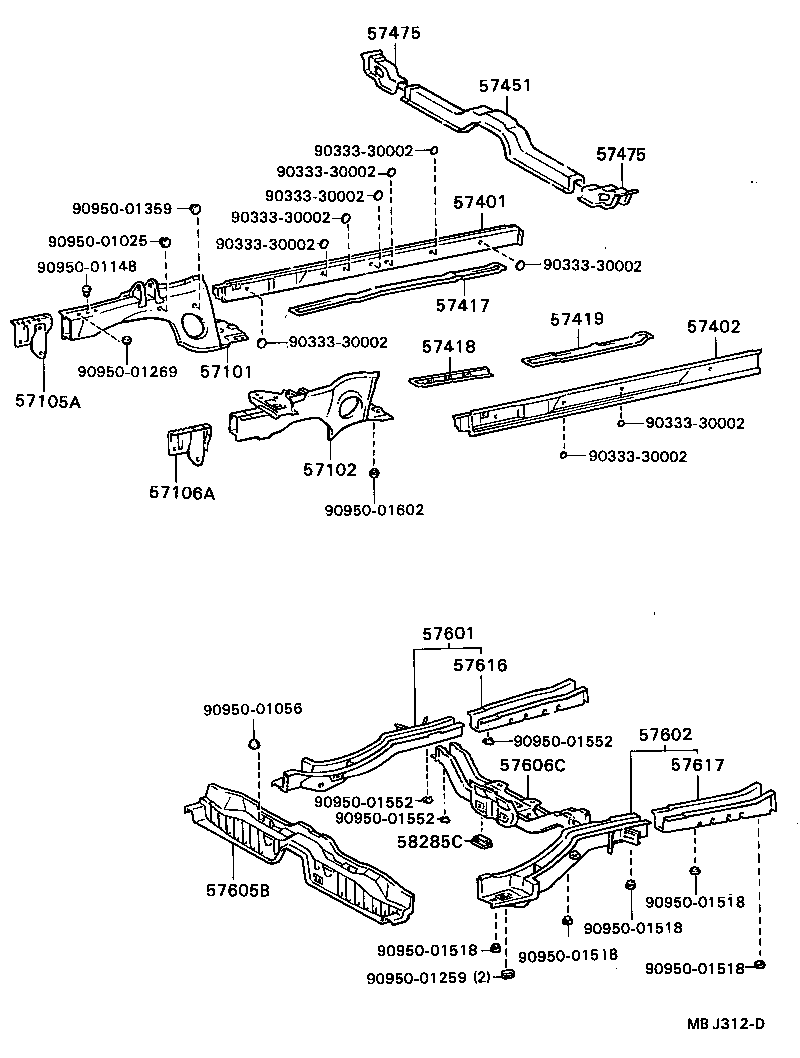

Click highlighted areas on diagram

diagram 57101 57102 57105A 57106A 57401 57402 57417 57418 57419 57451 57475 57475 57601 57602 57605B 57606C 57616 57617 58285C 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9095001025 9095001056 9095001148 9095001259 9095001269 9095001359 9095001518 9095001518 9095001518 9095001518 9095001518 9095001552 9095001552 9095001552 9095001602
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20420

ST16#..CP,LB

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20410

ST16#

 1
57105A - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57105-20040

ST16#

 1
57106A - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57106-20040

ST16#

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-20220

ST16#..CP,LB

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-20220

ST16#..CP,LB

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-20030

ST16#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-20040

ST16#

 1
57419 - REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2
57419-20020

ST16#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-20070

ST16#

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-20020

ST16#

RH

 1
57476-20020

ST16#

LH

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-20020

ST16#

RH

 1
57476-20020

ST16#

LH

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20170

ST16#

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20170

ST16#

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-20040

ST16#

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-20070

ST16#

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-20901

ST16#

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-20901

ST16#

 1
58285C - COVER, REAR FLOOR HOLE
58285-20020

ST16#

 2
Common parts
90333-30002
90950-01025
90950-01056
90950-01148
90950-01259
90950-01269
90950-01359
90950-01518
90950-01552
90950-01602
