ST161L-BCPVEK (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

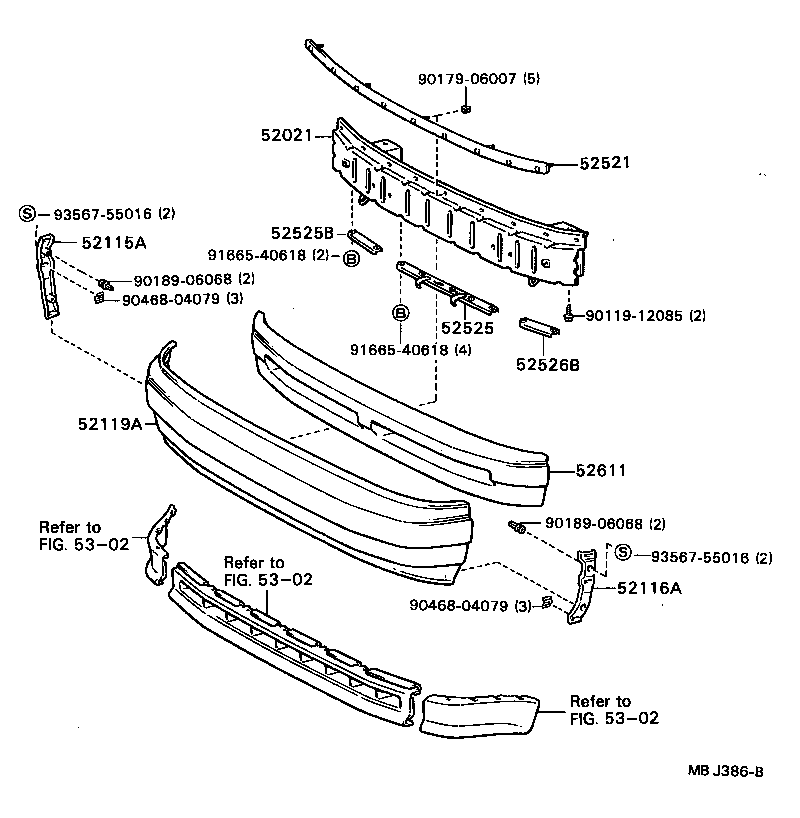

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52521 52525 52525B 52526B 52611 5302 5302 5302 9011912085 9017906007 9018906068 9018906068 9046804079 9046804079 9166540618 9166540618 9356755016 9356755016
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20110

ST16#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20170

ST16#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20150

ST16#

 1
52119A - COVER, FRONT BUMPER
52119-20907

ST16#

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20070

ST16#

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-20070

ST16#

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-20040

ST16#

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-20040

ST16#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20070

ST16#

 1
Common parts
90119-12085
90179-06007
90189-06068
90468-04079
91665-40618
93567-55016
Linked diagrams
5302
