ST161L-BCPVEK (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

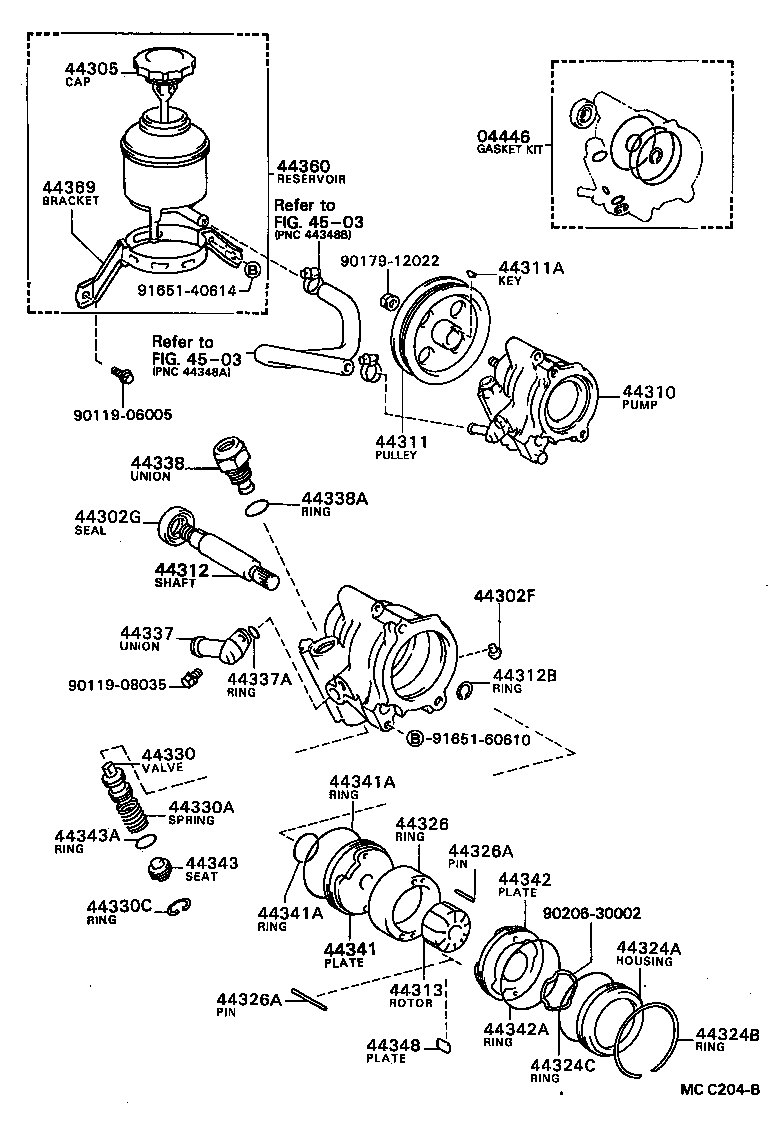

diagram 04446 44302F 44302G 44305 44310 44311 44311A 44312 44312B 44313 44324A 44324B 44324C 44326 44326A 44326A 44330 44330A 44330C 44337 44337A 44338 44338A 44341 44341A 44341A 44342 44342A 44343 44343A 44348 44360 44369 4503 4503 9011906005 9011908035 9017912022 9020630002 9165140614 9165160610
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-20030

ST16#

 1
44302F - SEAT, UNION(FOR VANE PUMP HOUSING)
90410-05035

ST16#

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18007

ST16#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-32010

ST16#

 1
44310 - PUMP ASSY, VANE
44320-20040

ST161

 1
44311 - PULLEY, VANE PUMP
44311-20060

ST16#

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

ST16#

 1
44312 - SHAFT, VANE PUMP
44312-12030

ST16#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003

ST16#

 1
44313 - ROTOR, VANE PUMP
44313-12040

ST16#

MARK 3,MARK 3

 1
44313-12010

ST16#

NO MARK,NO MARK

 1
44313-12050

ST16#

MARK 4,MARK 4

 1
44313-12030

ST16#

MARK 2,MARK 2

 1
44313-12020

ST16#

MARK 1,MARK 1

 1
44324A - HOUSING, PUMP, REAR
44324-12031

ST16#

 1
44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR)
90521-62002

ST16#

 1
44324C - RING, O(FOR PUMP HOUSING REAR)
90301-52001

ST16#

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12120

ST16#

MARK 1,MARK 1

 1
44325-12110

ST16#

NO MARK,NO MARK

 1
44325-12130

ST16#

MARK 2,MARK 2

 1
44325-12150

ST16#

MARK 4,MARK 4

 1
44325-12140

ST16#

MARK 3,MARK 3

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047

ST16#

L=28,OD=4.0,L=28

 1
90250-04049

ST16#

L=43,OD=4.0,L=43

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047

ST16#

L=28,OD=4.0,L=28

 1
90250-04049

ST16#

L=43,OD=4.0,L=43

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-14020

ST161

MARK B,MARK B

 1
44330-14010

ST161

MARK A,MARK A

 1
44330-14030

ST161

MARK C,MARK C

 1
44330-14050

ST161

MARK E,MARK E

 1
44330-14060

ST161

MARK F,MARK F

 1
44330-14040

ST161

MARK D,MARK D

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

ST16#

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

ST16#

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-12030

ST16#

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-12003

ST16#

 1
44338 - UNION, PRESSURE PORT
44308-20020

ST161

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19003

ST16#

ID=19.5,OD=22.5

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-12030

ST16#

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-52001

ST16#

OUTER

 1
90301-25001

ST16#

INNER

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-52001

ST16#

OUTER

 1
90301-25001

ST16#

INNER

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-12021

ST16#

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-52001

ST16#

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12010

ST16#

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014

ST16#

 1
44348 - PLATE, VANE PUMP
44345-12010

ST16#

L=14.997,ROTOR NO MARK

 10
44345-12050

ST16#

L=14.989,ROTOR MARK 4

 10
44345-12020

ST16#

L=14.995,ROTOR MARK 1

 10
44345-12040

ST16#

L=14.991,ROTOR MARK 3

 10
44345-12030

ST16#

L=14.993,ROTOR MARK 2

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-20080

ST16#

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-20050

ST16#

 1
Common parts
90119-06005
90119-08035
90179-12022
90206-30002
91651-40614
91651-60610
Linked diagrams
4503
