ST161L-BCPVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

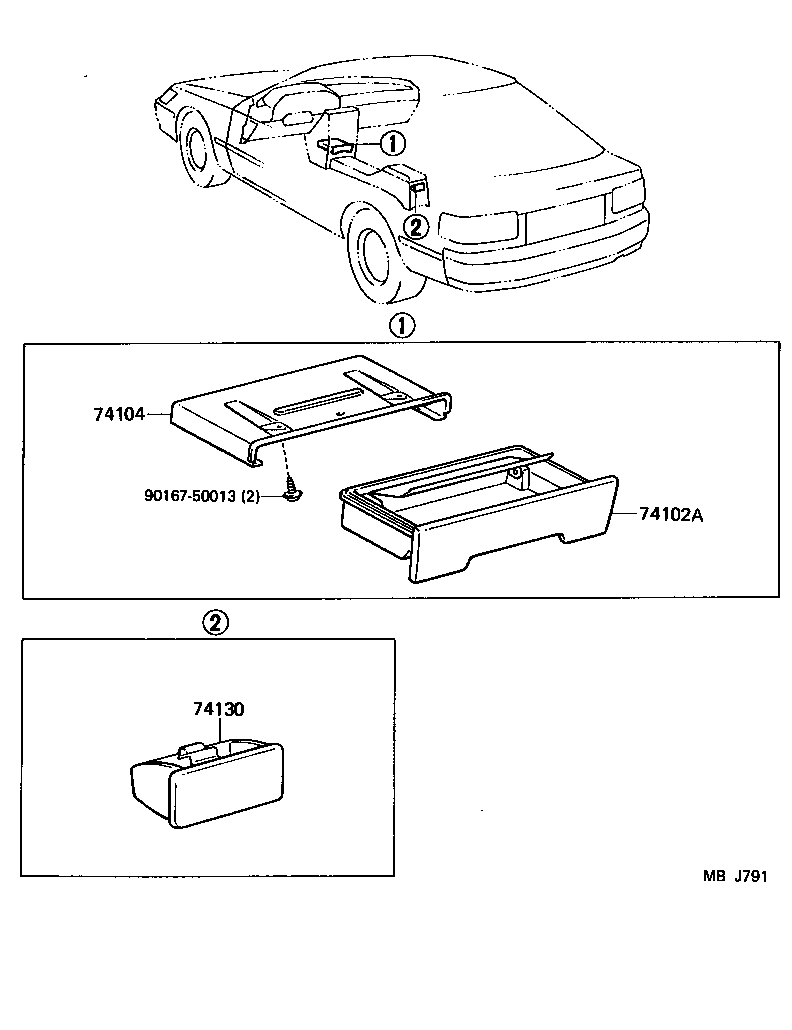

Click highlighted areas on diagram

diagram 74102A 74104 74130 9016750013
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-2013002

ST16#..(CP,LB)..(GT,GTS)

RED,RED,TRIM3#

 1
74102-2013003

ST16#..GT,GTS

GRAY,SHADOW GRAY,TRIM1#

 1
74102-2012004

ST16#..ST

BLUE,DEEP BLUE,TRIM8#

 1
74102-2013004

ST16#..(CP,LB)..(GT,GTS)

BLUE,DEEP BLUE,TRIM8#

 1
74102-2013006

ST16#..(CP,LB)..(GT,GTS)

BROWN,BROWN,TRIM4#

 1
74102-2012002

ST16#..ST

RED,RED,TRIM3#

 1
74102-2012006

ST16#..ST

BROWN,BROWN,TRIM4#

 1
74102-2012003

ST16#..ST

GRAY,SHADOW GRAY,TRIM1#

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-20170

ST16#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-2004003

ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
74109-2004002

ST16#..CP,LB

RED,RED,TRIM3#

 1
74109-2004004

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 1
74109-2004006

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 1
Common parts
90167-50013
