ST161L-BCPVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CP

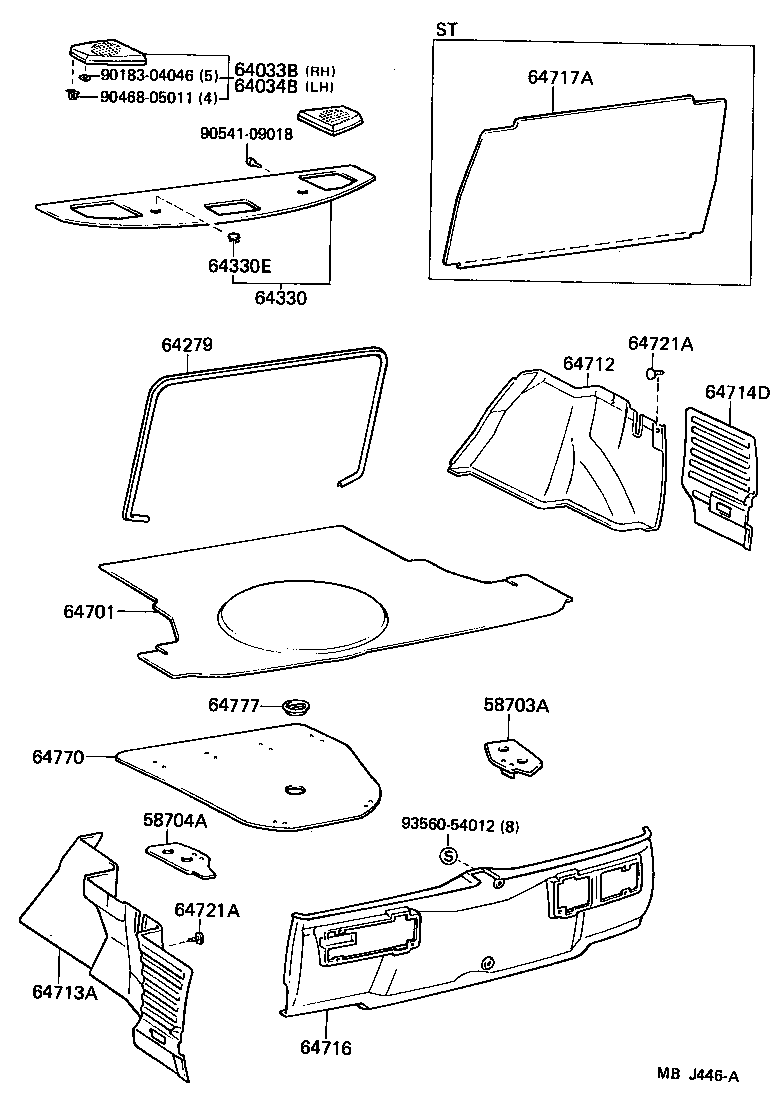

Click highlighted areas on diagram

diagram 58703A 58704A 64033B 64034B 64279 64330 64330E 64701 64712 64713A 64714D 64716 64717A 64721A 64721A 64770 64777 9018304046 9046805011 9054109018 9356054012
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-20080

ST16#..CP

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-20040

ST16#..CP

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-2002006

ST16#..CP

BROWN,BROWN,TRIM4#

 1
64033-2002004

ST16#..CP

BLUE,DEEP BLUE,TRIM8#

 1
64033-2002003

ST16#..CP

GRAY,SHADOW GRAY,TRIM1#

 1
64033-2002002

ST16#..CP

RED,RED,TRIM3#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64034-2002004

ST16#..CP

BLUE,DEEP BLUE,TRIM8#

 1
64034-2002003

ST16#..CP

GRAY,SHADOW GRAY,TRIM1#

 1
64034-2002002

ST16#..CP

RED,RED,TRIM3#

 1
64034-2002006

ST16#..CP

BROWN,BROWN,TRIM4#

 1
64279 - PROTECTOR, ROOM PARTITION
64279-2003004

ST16#..CP..(GT,GTS)

BLUE,DEEP BLUE,TRIM8#

 1
64279-2003003

ST16#..CP..(GT,GTS)

GRAY,SHADOW GRAY,TRIM1#

 1
64279-2003002

ST16#..CP..(GT,GTS)

RED,RED,TRIM3#

 1
64279-2003006

ST16#..CP..(GT,GTS)

BROWN,BROWN,TRIM4#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2069004

ST16#..ST

W/*SPG,BLUE,DEEP BLUE,TRIM8#

 1
64330-2068006

ST161..ST

W/O *SPG,BROWN,BROWN,TRIM4#

 1
64330-2071004

ST16#..CP..(GT,GTS)

BLUE,DEEP BLUE,TRIM8#

 1
64330-2068004

ST161..ST

W/O *SPG,BLUE,DEEP BLUE,TRIM8#

 1
64330-2069006

ST16#..ST

W/*SPG,BROWN,BROWN,TRIM4#

 1
64330-2071003

ST16#..CP..(GT,GTS)

GRAY,SHADOW GRAY,TRIM1#

 1
64330-2069002

ST16#..ST

W/*SPG,RED,RED,TRIM3#

 1
64330-2069003

ST16#..ST

W/*SPG,GRAY,SHADOW GRAY,TRIM1#

 1
64330-2068003

ST161..ST

W/O *SPG,GRAY,SHADOW GRAY,TRIM1#

 1
64330-2068002

ST161..ST

W/O *SPG,RED,RED,TRIM3#

 1
64330-2071006

ST16#..CP..(GT,GTS)

BROWN,BROWN,TRIM4#

 1
64330-2071002

ST16#..CP..(GT,GTS)

RED,RED,TRIM3#

 1
64330E - PLUG(FOR PACKAGE TRAY TRIM PANEL)
90950-0143605

ST16#..CP

BEIGE,BEIGE,TRIM4#

 2
90950-0143613

ST16#..CP

GRAY,GRAY,TRIM1#

 2
90950-0143622

ST16#..CP

RED,RED,TRIM3#

 2
90950-0143614

ST16#..CP

BLUE,DEEP BLUE,TRIM8#

 2
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-20360

ST16#..CP..(GT,GTS)

 1
64711-20310

ST16#..ST

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-20110

ST16#..ST

 1
64712-20120

ST16#..CP..(GT,GTS)

 1
64713A - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64072-20100

ST16#..CP..(GT,GTS)

 1
64072-20090

ST16#..ST

 1
64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64714-20210

ST16#..CP..(GT,GTS)

 1
64714-20200

ST16#..ST

 1
64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER
64716-20150

ST161..ST

 1
64716-20170

ST16#..(CP,CVT)..(GT,GTS)

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-20130

ST16#..ST

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704201

ST16#..CP

BLACK,BLACK,TRIM1#

 2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704201

ST16#..CP

BLACK,BLACK,TRIM1#

 2
64770 - COVER ASSY, SPARE WHEEL
64770-20080

ST16#..ST

165SR13

 1
64770-20090

ST16#..CP,CVT

185/70SR13,205/60R14

 1
64777 - CLAMP, SPARE WHEEL COVER
64777-32020

ST16#..ST

 1
Common parts
90183-04046
90468-05011
90541-09018
93560-54012
