ST161L-BCPVEA (1985)
Toyota Celica
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2015004 |
ST16#..(CP,LB)..(GT,ST) BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 55441-2015006 |
ST16#..(CP,LB)..(GT,ST) BROWN,BROWN,TRIM4# |
1 | ||
| 55441-2015003 |
ST16#..GT,ST GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55441-2015002 |
ST16#..(CP,LB)..(GT,ST) RED,RED,TRIM3# |
1 | ||
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2015004 |
ST16#..(CP,LB)..(GT,ST) BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 55441-2015006 |
ST16#..(CP,LB)..(GT,ST) BROWN,BROWN,TRIM4# |
1 | ||
| 55441-2015003 |
ST16#..GT,ST GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55441-2015002 |
ST16#..(CP,LB)..(GT,ST) RED,RED,TRIM3# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002002 |
ST161 RED,RED,TRIM3# |
1 | ||
| 55539-2002004 |
ST161 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 55539-2002006 |
ST161 BROWN,BROWN,TRIM4# |
1 | ||
| 55539-2002003 |
ST161 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002002 |
ST161 RED,RED,TRIM3# |
1 | ||
| 55539-2002004 |
ST161 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 55539-2002006 |
ST161 BROWN,BROWN,TRIM4# |
1 | ||
| 55539-2002003 |
ST161 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55547B - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2002006 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 55547-2002003 |
ST16#..ST GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55547-2002002 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 55547-2002004 |
ST16#..ST BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58801-2011002 |
ST16#..(CP,LB)..(GT,GTS) RED,RED,TRIM3# |
1 | ||
| 58801-2011003 |
ST16#..(CP,LB)..(GT,GTS) GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58801-2010002 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 58801-2010003 |
ST16#..ST GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58801-2011006 |
ST16#..(CP,LB)..(GT,GTS) BROWN,BROWN,TRIM4# |
1 | ||
| 58801-2010004 |
ST16#..ST BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58801-2010006 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 58801-2011004 |
ST16#..(CP,LB)..(GT,GTS) BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58801-2011002 |
ST16#..(CP,LB)..(GT,GTS) RED,RED,TRIM3# |
1 | ||
| 58801-2011003 |
ST16#..(CP,LB)..(GT,GTS) GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58801-2010002 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 58801-2010003 |
ST16#..ST GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58801-2011006 |
ST16#..(CP,LB)..(GT,GTS) BROWN,BROWN,TRIM4# |
1 | ||
| 58801-2010004 |
ST16#..ST BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58801-2010006 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 58801-2011004 |
ST16#..(CP,LB)..(GT,GTS) BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-2002003 |
ST16# SHADOW GRAY |
1 | ||
| 58839-2002006 |
ST16#..CP,LB BROWN |
1 | ||
| 58839-2002002 |
ST16#..CP,LB RED |
1 | ||
| 58839-2002004 |
ST16#..CP,LB DEEP BLUE |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-2002003 |
ST16# SHADOW GRAY |
1 | ||
| 58839-2002006 |
ST16#..CP,LB BROWN |
1 | ||
| 58839-2002002 |
ST16#..CP,LB RED |
1 | ||
| 58839-2002004 |
ST16#..CP,LB DEEP BLUE |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 90541-04079 |
ST16#..GT,GTS |
2 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2006004 |
ST16#..(CP,LB)..(GT,GTS) BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58905-2006002 |
ST16#..(CP,LB)..(GT,GTS) RED,RED,TRIM3# |
1 | ||
| 58951-2007004 |
ST16#..ST BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58905-2006003 |
ST16#..GT,GTS GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58905-2006006 |
ST16#..(CP,LB)..(GT,GTS) BROWN,BROWN,TRIM4# |
1 | ||
| 58951-2007006 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 58951-2007002 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 58951-2007003 |
ST16#..ST GRAY,GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2006004 |
ST16#..(CP,LB)..(GT,GTS) BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58905-2006002 |
ST16#..(CP,LB)..(GT,GTS) RED,RED,TRIM3# |
1 | ||
| 58951-2007004 |
ST16#..ST BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58905-2006003 |
ST16#..GT,GTS GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58905-2006006 |
ST16#..(CP,LB)..(GT,GTS) BROWN,BROWN,TRIM4# |
1 | ||
| 58951-2007006 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 58951-2007002 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 58951-2007003 |
ST16#..ST GRAY,GRAY,TRIM1# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
ST16# |
2 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
ST16# |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30030 |
ST16# LH |
1 | ||
| 58964-90K00 |
ST16# RH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30030 |
ST16# LH |
1 | ||
| 58964-90K00 |
ST16# RH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30030 |
ST16# LH |
1 | ||
| 58964-90K00 |
ST16# RH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30030 |
ST16# LH |
1 | ||
| 58964-90K00 |
ST16# RH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
ST16#..ST LH |
1 | ||
| 58965-20020 |
ST16#..ST RH |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
ST16# |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
ST16# |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
ST16# |
2 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
ST16# |
2 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
ST16# |
2 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
ST16# |
2 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-20030 |
ST16# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-20030 |
ST16# |
1 | ||
| Common parts | ||||
| 90183-04004 | ||||
| 90183-05094 | ||||
| 90523-05004 | ||||
| 93567-54512 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||

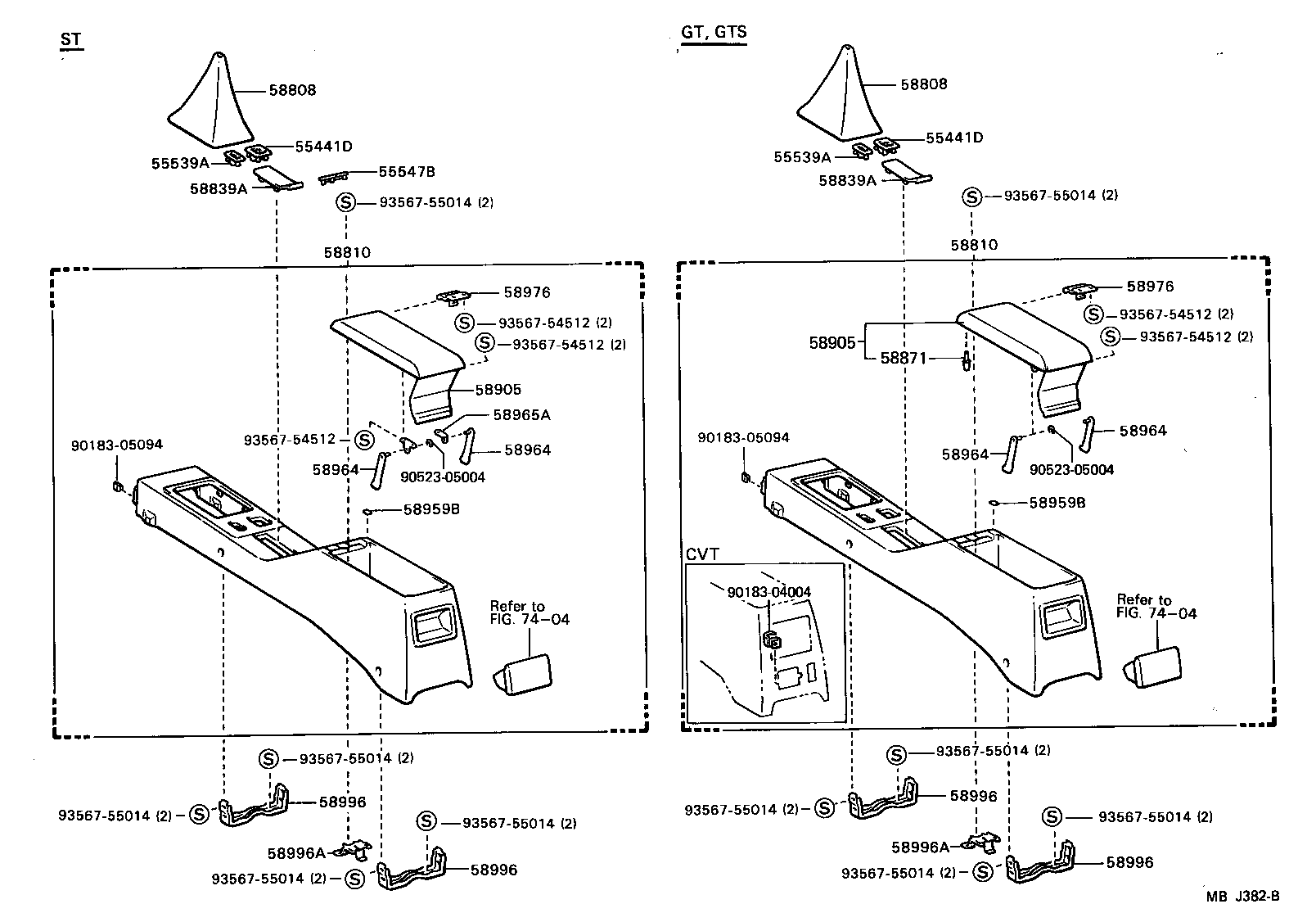

| 7404 | ||||
