ST161L-BCPVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

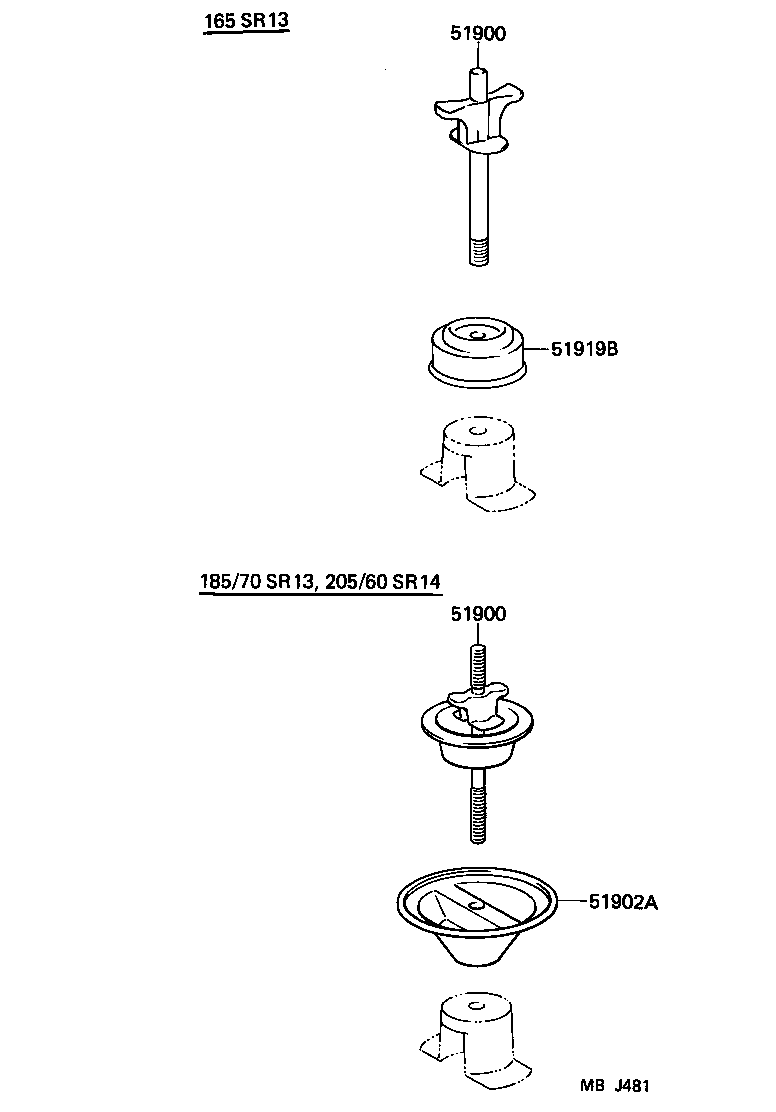

Click highlighted areas on diagram

diagram 51900 51900 51902A 51919B
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-20040

ST16#

185/70SR13,205/60R14

 1
51900-32010

ST16#..ST

165SR13

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-20040

ST16#

185/70SR13,205/60R14

 1
51900-32010

ST16#..ST

165SR13

 1
51902A - COVER SUB-ASSY, SPARE WHEEL
51902-20010

ST16#

 1
51919B - SPACER, SPARE WHEEL CARRIER
51919-32010

ST16#..ST

 1
