ST161L-BCPVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

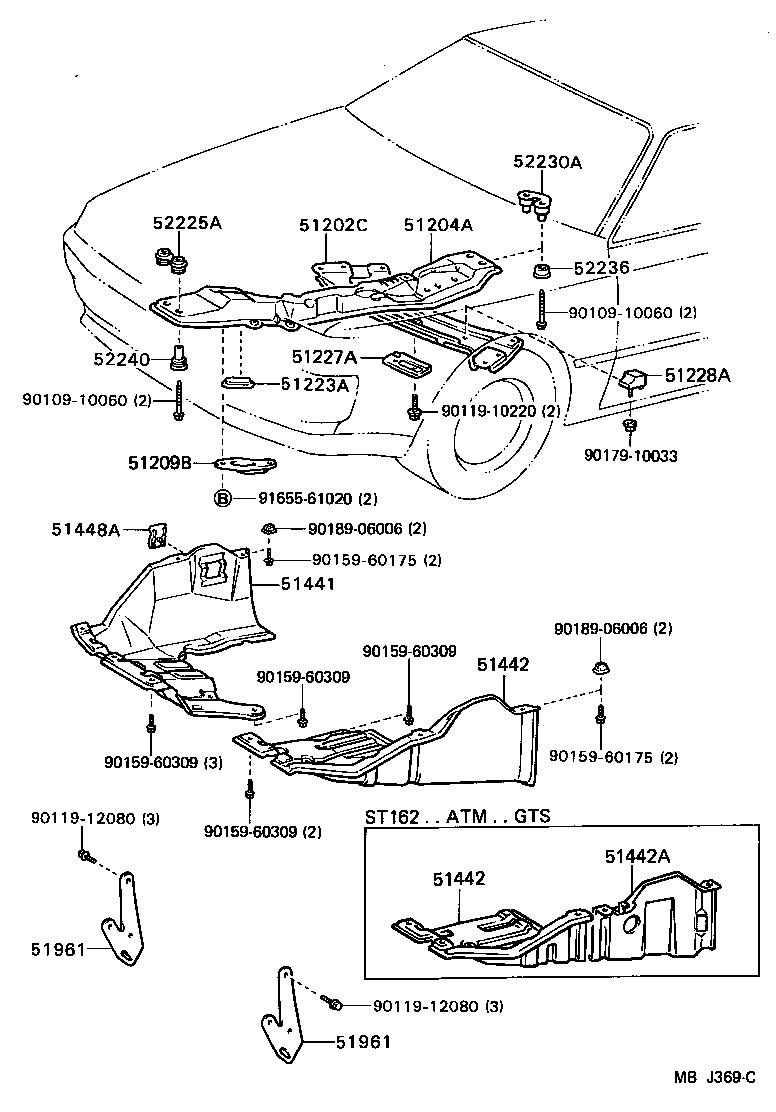

Click highlighted areas on diagram

diagram 51202C 51204A 51209B 51223A 51227A 51228A 51441 51442 51442 51442A 51448A 51961 51961 52225A 52230A 52236 52240 9010910060 9010910060 9011910220 9011912080 9011912080 9015960175 9015960175 9015960309 9015960309 9015960309 9015960309 9017910033 9018906006 9018906006 9165561020
Part # Description Qty Price
51202C - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-20010

ST16#

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20030

ST16#

 1
51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51209-20010

ST16#

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20020

ST16#

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-20120

ST16#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20050

ST16#..4FC..(GT,ST)

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20050

ST16#..4FC..(GT,ST)

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20030

ST16#

 1
51961 - HOOK, NO.1
51963-20070

ST16#

 2
51961 - HOOK, NO.1
51963-20070

ST16#

 2
52225A - CUSHION, CENTER MEMBER MOUNTING, FRONT UPPER
52225-20030

ST16#

 1
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-20030

ST16#

 1
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-20030

ST16#

 2
52240 - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER
52240-20030

ST16#

 2
Common parts
90109-10060
90119-10220
90119-12080
90159-60175
90159-60309
90179-10033
90189-06006
91655-61020
