ST161L-BCPVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

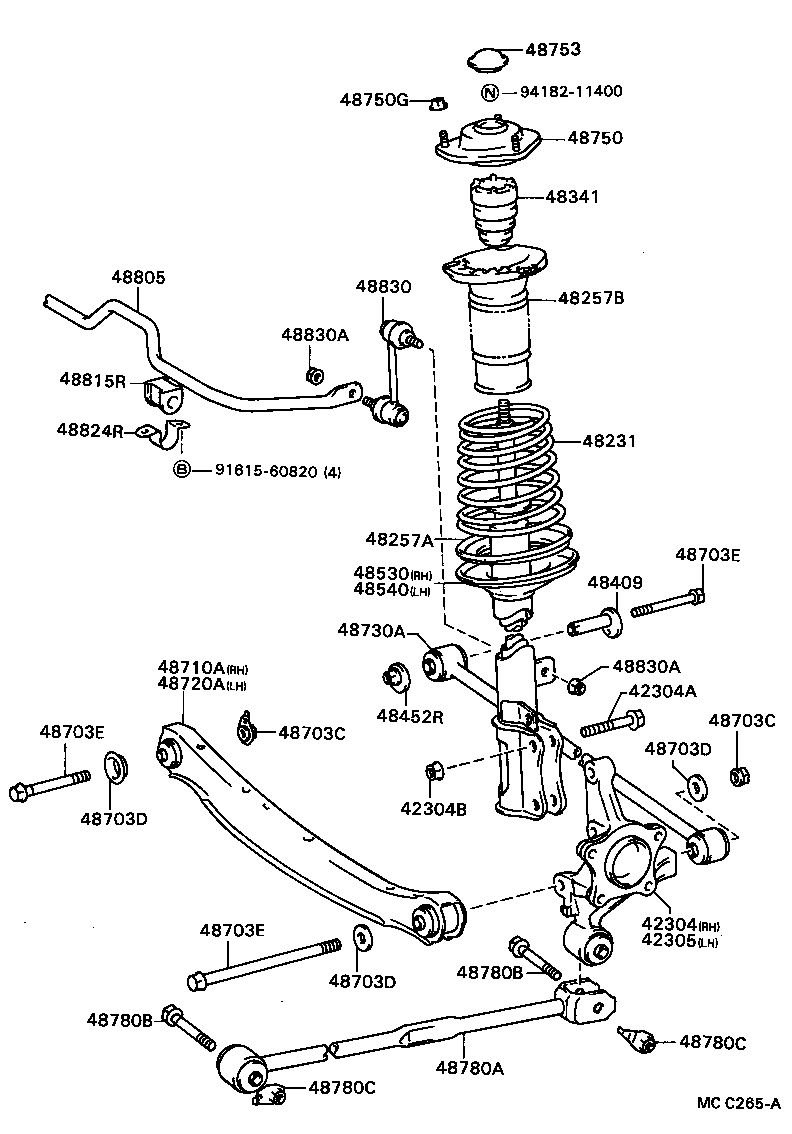

Click highlighted areas on diagram

diagram 42304 42304A 42304B 42305 48231 48257A 48257B 48341 48409 48452R 48530 48540 48703C 48703C 48703D 48703D 48703D 48703E 48703E 48703E 48710A 48720A 48730A 48750 48750G 48753 48780A 48780B 48780B 48780C 48780C 48805 48815R 48824R 48830 48830A 48830A 9161560820 9418211400
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-20010

ST16#..GT,ST

 1
42304A - BOLT (FOR REAR AXLE CARRIER)
90105-12042

ST16#

 4
42304B - NUT (FOR REAR AXLE CARRIER)
90179-12025

ST16#

 4
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-20010

ST16#..GT,ST

 1
48231 - SPRING, COIL, REAR
48231-20580

ST161..ST

 2
48231-20430

ST161..GT

 2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-16010

ST16#

 2
48257B - INSULATOR, REAR COIL SPRING, UPPER
48257-32030

ST16#

 2
48341 - BUMPER, REAR SPRING
48341-20090

ST16#

 2
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-20020

ST16#

 2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-32010

ST16#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-20120

ST16#..(CP,LB)..(GT,ST)

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-20120

ST16#..(CP,LB)..(GT,ST)

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

ST16#

CARRIER SIDE

 2
90179-12049

ST16#

BODY SIDE

 2
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

ST16#

CARRIER SIDE

 2
90179-12049

ST16#

BODY SIDE

 2
48703D - WASHER(FOR REAR SUSPENSION ARM)
90201-14017

ST16#

CARRIER SIDE

 4
90209-13008

ST16#

BODY SIDE

 2
48703D - WASHER(FOR REAR SUSPENSION ARM)
90201-14017

ST16#

CARRIER SIDE

 4
90209-13008

ST16#

BODY SIDE

 2
48703D - WASHER(FOR REAR SUSPENSION ARM)
90201-14017

ST16#

CARRIER SIDE

 4
90209-13008

ST16#

BODY SIDE

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-14036

ST16#

*14-1.5PX248-30,CARRIER SIDE

 2
90105-12117

ST16#

BODY SIDE,FR

 2
90105-10132

ST16#

*10-1.25PX80-20,BODY SIDE,RR

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-14036

ST16#

*14-1.5PX248-30,CARRIER SIDE

 2
90105-12117

ST16#

BODY SIDE,FR

 2
90105-10132

ST16#

*10-1.25PX80-20,BODY SIDE,RR

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-14036

ST16#

*14-1.5PX248-30,CARRIER SIDE

 2
90105-12117

ST16#

BODY SIDE,FR

 2
90105-10132

ST16#

*10-1.25PX80-20,BODY SIDE,RR

 2
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-20060

ST16#

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48720-20050

ST16#

 1
48730A - ARM ASSY, REAR SUSPENSION, NO.2
48730-20010

ST16#

 2
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-20010

ST16#

 1
48750G - NUT(FOR REAR SUSPENSION SUPPORT)
90179-08095

ST16#

 6
48753 - COVER, REAR SUSPENSION SUPPORT
48753-16010

ST16#

 1
48780A - ROD ASSY, STRUT, REAR
48780-20020

ST16#

 2
48780B - BOLT(FOR STRUT ROD)
90105-12035

ST16#

 4
48780B - BOLT(FOR STRUT ROD)
90105-12035

ST16#

 4
48780C - NUT(FOR STRUT ROD)
90179-12049

ST16#

BODY SIDE

 2
90179-12023

ST16#

CARRIER SIDE

 2
48780C - NUT(FOR STRUT ROD)
90179-12049

ST16#

BODY SIDE

 2
90179-12023

ST16#

CARRIER SIDE

 2
48805 - BAR SUB-ASSY, REAR STABILIZER
48812-20150

ST16#..CP,LB

 1
48815R - BUSH, STABILIZER(FOR REAR)
48818-20080

ST16#..CP,LB

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48832-20020

ST16#

 2
48830 - LINK ASSY, REAR STABILIZER
48830-20010

ST16#

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054

ST16#

 4
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054

ST16#

 4
Common parts
91615-60820
94182-11400
