ST161L-BCPVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

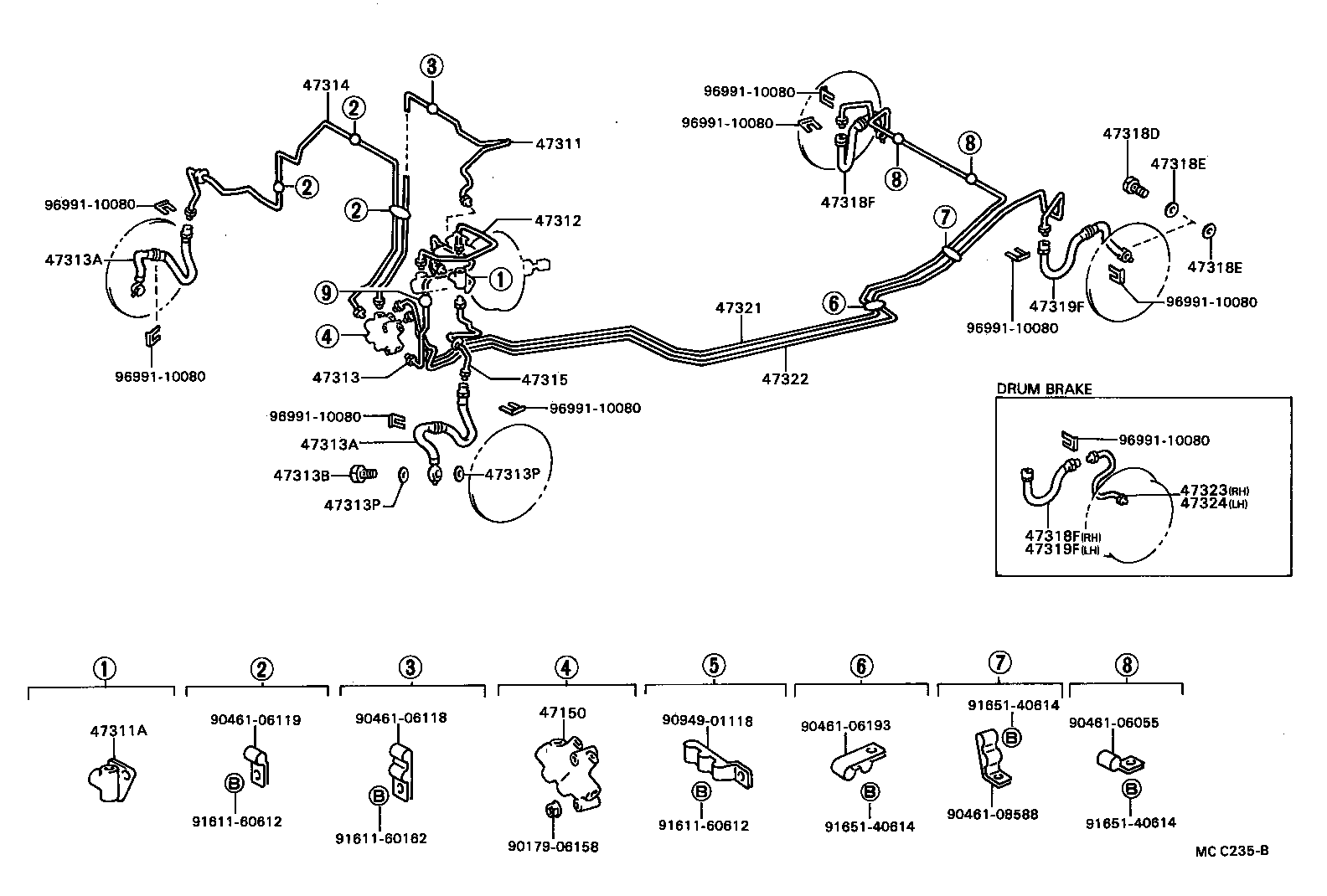

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47318F 47319F 47319F 47321 47322 47323 47324 9017906158 9046106055 9046106118 9046106119 9046106193 9046108588 9094901118 9161160162 9161160612 9161160612 9165140614 9165140614 9165140614 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12060

ST16#..(CP,LB)..(GT,ST)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20430

ST16#

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10182

ST16#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20150

ST16#

 2
47313 - TUBE, FRONT BRAKE, NO.3
47313-20260

ST16#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02455

ST16#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02455

ST16#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

ST16#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

ST16#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

ST16#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20200

ST16#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20340

ST16#

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02472

ST16#..GT,ST

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02472

ST16#..GT,ST

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02472

ST16#..GT,ST

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02472

ST16#..GT,ST

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20130

ST16#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20250

ST16#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-20060

ST16#..GT,ST

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-20060

ST16#..GT,ST

 1
Common parts
90179-06158
90461-06055
90461-06118
90461-06119
90461-06193
90461-08588
90949-01118
91611-60162
91611-60612
91651-40614
96991-10080
