ST161L-BCPSEA (1985)
Toyota Celica
(8508- )

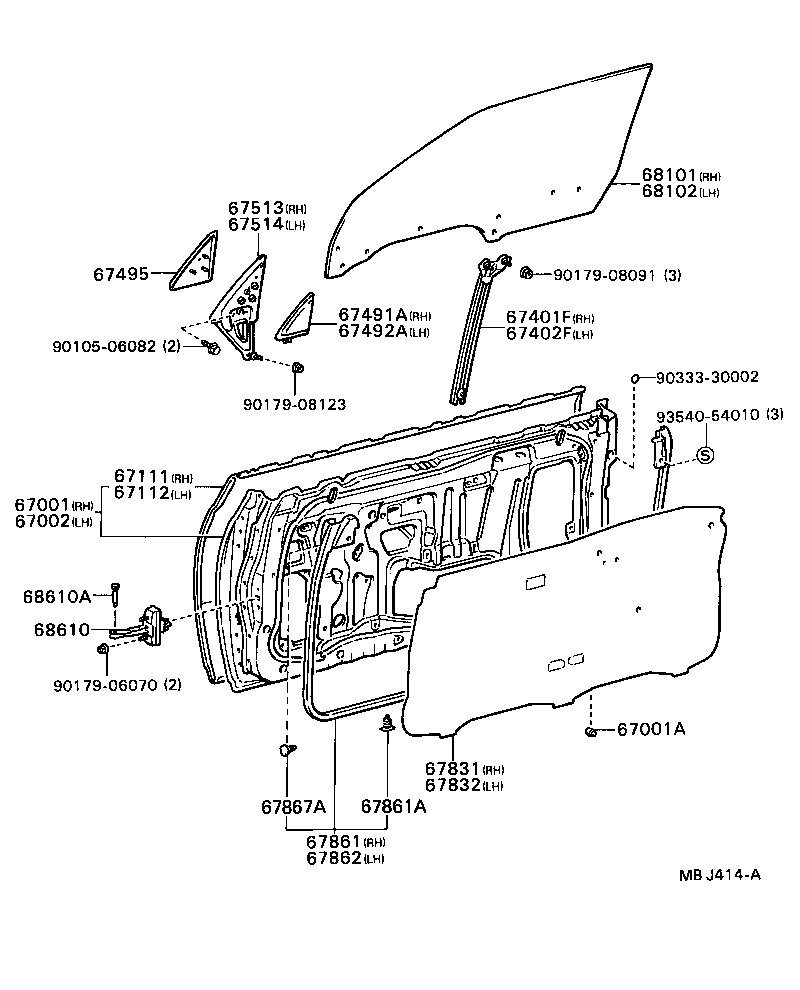

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20660 |
ST16# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
ST16# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20630 |
ST16# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20160 |
ST16# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20180 |
ST16# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-20160 |
ST16# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-20150 |
ST16# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20120 |
ST16# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20140 |
ST16# |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67495-20060 |
ST16#..ST W/O DOOR MIRROR |
1 | ||
| 67513 - BRACKET, FRONT DOOR MIRROR, RH | ||||
| 67513-20050 |
ST161..ST W/O DOOR MIRROR |
1 | ||
| 67513-20070 |
ST16# W/DOOR MIRROR |
1 | ||
| 67514 - BRACKET, FRONT DOOR MIRROR, LH | ||||
| 67514-20070 |
ST16# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-20310 |
ST16# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-20140 |
ST16# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20250 |
ST16#..CP,LB |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
ST16# |
42 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20250 |
ST16#..CP,LB |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-30020 |
ST16# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-20400 |
ST16# *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-20320 |
ST16# *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-20050 |
ST16# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90K00 |
ST16# |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90179-06070 | ||||
| 90179-08091 | ||||
| 90179-08123 | ||||
| 90333-30002 | ||||
| 93540-54010 | ||||
(8508- )

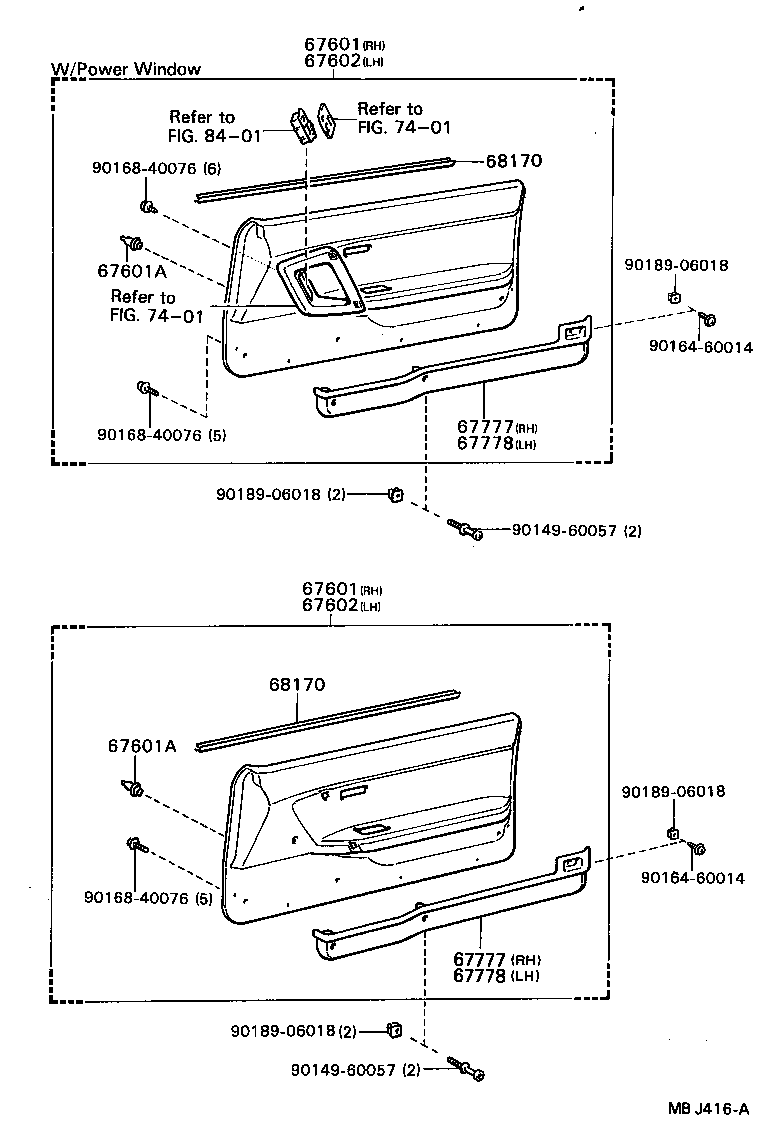

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2B71003 |
ST16#..ST GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2B71004 |
ST16#..ST BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67610-2B71002 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 67610-2B71006 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2B71003 |
ST16#..ST GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2B71004 |
ST16#..ST BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67610-2B71002 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 67610-2B71006 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
ST16# |
22 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
ST16# |
22 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2D20003 |
ST16#..ST GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2D20004 |
ST16#..ST BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67620-2D20002 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 67620-2D20006 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2D20003 |
ST16#..ST GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2D20004 |
ST16#..ST BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67620-2D20002 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 67620-2D20006 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2005004 |
ST16#..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67770-2005002 |
ST16#..CP,LB RED,RED,TRIM3# |
1 | ||
| 67770-2005003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2005006 |
ST16#..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2005004 |
ST16#..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67770-2005002 |
ST16#..CP,LB RED,RED,TRIM3# |
1 | ||
| 67770-2005003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2005006 |
ST16#..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2002006 |
ST16#..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 67780-2002003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2002002 |
ST16#..CP,LB RED,RED,TRIM3# |
1 | ||
| 67780-2002004 |
ST16#..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2002006 |
ST16#..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 67780-2002003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2002002 |
ST16#..CP,LB RED,RED,TRIM3# |
1 | ||
| 67780-2002004 |
ST16#..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20310 |
ST16# RH |
1 | ||
| 68220-20240 |
ST16# LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20310 |
ST16# RH |
1 | ||
| 68220-20240 |
ST16# LH |
1 | ||
| Common parts | ||||
| 90149-60057 | ||||
| 90164-60014 | ||||
| 90168-40076 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
