ST161L-BCMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

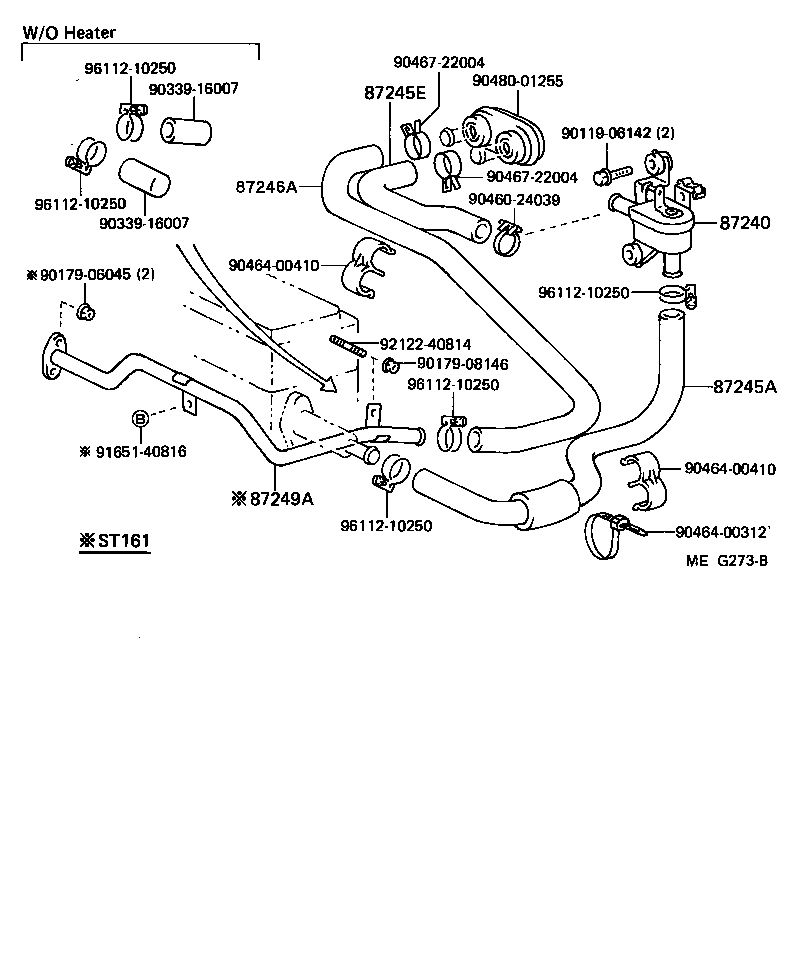

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246A 87249A 9011906142 9017906045 9017908146 9033916007 9033916007 9046024039 9046400312 9046400410 9046400410 9046722004 9046722004 9048001255 9165140816 9212240814 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-20300

ST16#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-20830

ST161

 1
87245E - HOSE, HEATER WATER, INLET E
87245-20820

ST16#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-20870

ST16#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-20170

ST161

 1
Common parts
90119-06142
90179-06045
90179-08146
90339-16007
90460-24039
90464-00312
90464-00410
90467-22004
90480-01255
91651-40816
92122-40814
96112-10250
