ST161L-BCMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

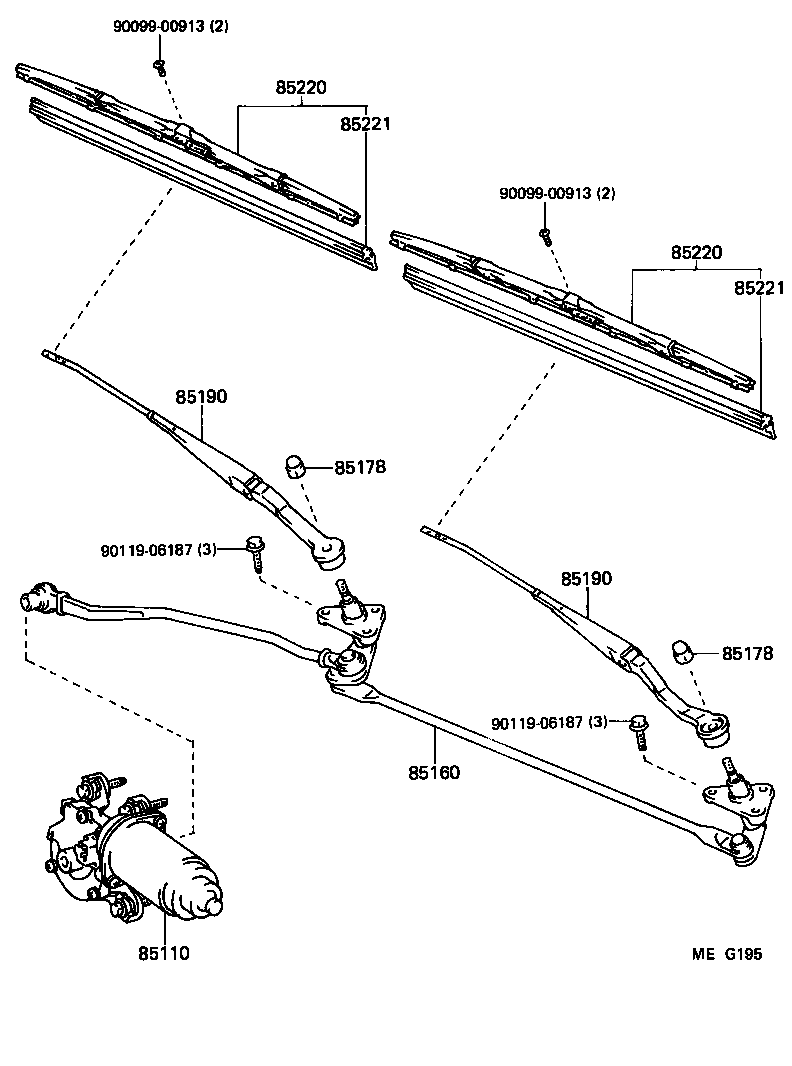

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85220 85220 85221 85221 9009900913 9009900913 9011906187 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-20260

ST16#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-20170

ST16#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08033

ST16#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08033

ST16#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-20430

ST16#

LH

 1
85210-20140

ST16#

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-20430

ST16#

LH

 1
85210-20140

ST16#

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16340

ST16#

RH

 1
85220-32280

ST16#

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16340

ST16#

RH

 1
85220-32280

ST16#

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30100

ST16#

RH

 1
85221-32060

ST16#

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30100

ST16#

RH

 1
85221-32060

ST16#

LH

 1
Common parts
90099-00913
90119-06187
