ST161L-BCMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

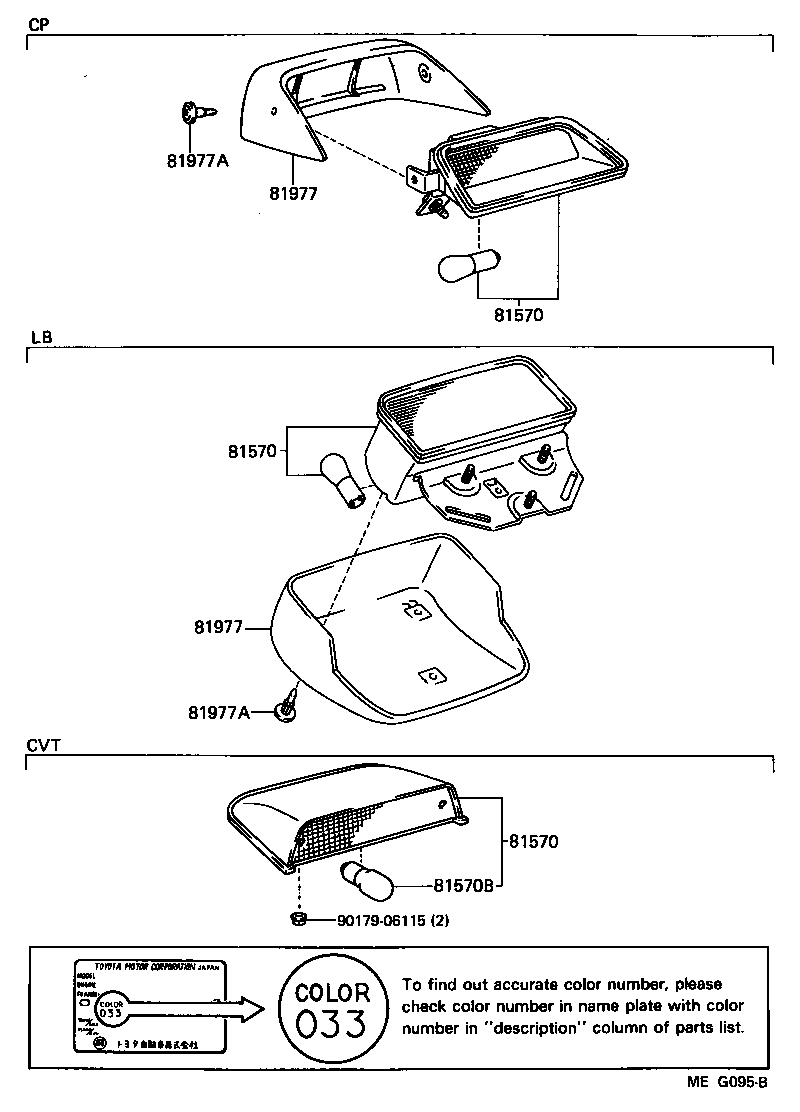

diagram 81570 81570 81570 81570B 81977 81977 81977A 81977A 9017906115
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-20020

ST16#..CP

 1
81570 - LAMP ASSY, CENTER STOP
81570-20020

ST16#..CP

 1
81570 - LAMP ASSY, CENTER STOP
81570-20020

ST16#..CP

 1
81977 - COVER, CENTER STOP LAMP
81977-2002006

ST16#..CP

BROWN,BROWN,TRIM4#

 1
81977-2002004

ST16#..CP

DEEP BLUE,DEEP BLUE,TRIM8#

 1
81977-2002002

ST16#..CP

RED,RED,TRIM3#

 1
81977-2002003

ST16#..CP

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
81977 - COVER, CENTER STOP LAMP
81977-2002006

ST16#..CP

BROWN,BROWN,TRIM4#

 1
81977-2002004

ST16#..CP

DEEP BLUE,DEEP BLUE,TRIM8#

 1
81977-2002002

ST16#..CP

RED,RED,TRIM3#

 1
81977-2002003

ST16#..CP

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90467-0704124

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 3
90467-0704116

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 3
90467-0704142

ST16#..CP,LB

RED,RED,TRIM3#

 3
90467-0704143

ST16#..CP,LB

GRAY,SHADOW GRAY,TRIM1#

 3
81977A - CLIP (FOR CENTER STOP LAMP)
90467-0704124

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 3
90467-0704116

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 3
90467-0704142

ST16#..CP,LB

RED,RED,TRIM3#

 3
90467-0704143

ST16#..CP,LB

GRAY,SHADOW GRAY,TRIM1#

 3
Common parts
90179-06115
