ST161L-BCMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

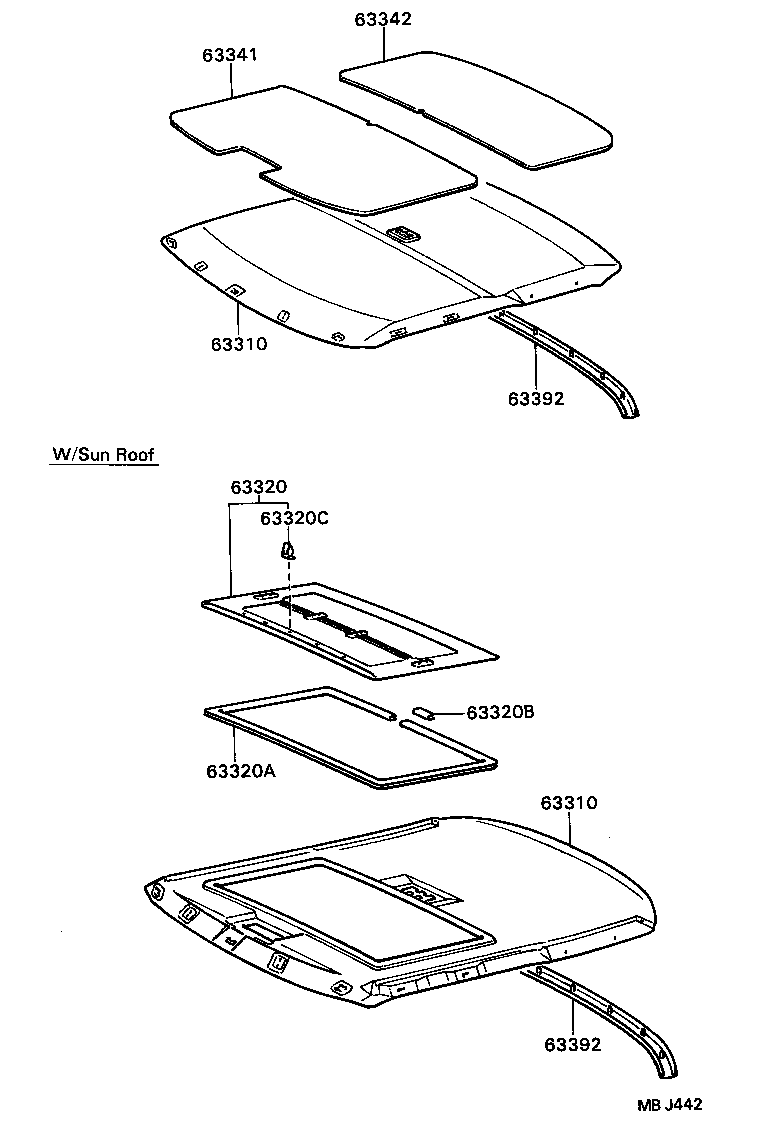

Click highlighted areas on diagram

diagram 63310 63310 63320 63320A 63320B 63320C 63341 63342 63392 63392
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-2054004

ST16#..CP

W/SUN ROOF,BLUE,DEEP BLUE,TRIM8#

 1
63310-2052002

ST16#..CP

W/O SUN ROOF,RED,RED,TRIM3#

 1
63310-2052003

ST16#..CP

W/O SUN ROOF,GRAY,SHADOW GRAY,TRIM1#

 1
63310-2054003

ST16#..CP

W/SUN ROOF,GRAY,SHADOW GRAY,TRIM1#

 1
63310-2054002

ST16#..CP

W/SUN ROOF,RED,RED,TRIM3#

 1
63310-2052004

ST16#..CP

W/O SUN ROOF,BLUE,DEEP BLUE,TRIM8#

 1
63310-2052006

ST16#..CP

W/O SUN ROOF,BROWN,BROWN,TRIM4#

 1
63310-2054006

ST16#..CP

W/SUN ROOF,BROWN,BROWN,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-2054004

ST16#..CP

W/SUN ROOF,BLUE,DEEP BLUE,TRIM8#

 1
63310-2052002

ST16#..CP

W/O SUN ROOF,RED,RED,TRIM3#

 1
63310-2052003

ST16#..CP

W/O SUN ROOF,GRAY,SHADOW GRAY,TRIM1#

 1
63310-2054003

ST16#..CP

W/SUN ROOF,GRAY,SHADOW GRAY,TRIM1#

 1
63310-2054002

ST16#..CP

W/SUN ROOF,RED,RED,TRIM3#

 1
63310-2052004

ST16#..CP

W/O SUN ROOF,BLUE,DEEP BLUE,TRIM8#

 1
63310-2052006

ST16#..CP

W/O SUN ROOF,BROWN,BROWN,TRIM4#

 1
63310-2054006

ST16#..CP

W/SUN ROOF,BROWN,BROWN,TRIM4#

 1
63320 - HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF
63320-2002003

ST16#..CP,LB

GRAY,GRAY,TRIM1#

 1
63320-2002006

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 1
63320-2002004

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 1
63320-2002002

ST16#..CP,LB

RED,RED,TRIM3#

 1
63320A - MOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM
63318-2004004

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 1
63318-2004002

ST16#..CP,LB

RED,RED,TRIM3#

 1
63318-2004003

ST16#..CP,LB

GRAY,SHADOW GRAY,TRIM1#

 1
63318-2004006

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 1
63320B - JOINT, SUN ROOF OPENING TRIM
63319-14011

ST16#..CP,LB

 1
63320C - RETAINER, TRIM BOARD(FOR SUN ROOF)
90467-10029

ST16#..CP,LB

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-20100

ST16#..CP,LB

 1
63342 - PAD, ROOF SILENCER, NO.2
63343-20060

ST16#..CP

 1
63392 - TRIM, ROOF HEADLINING, REAR
63305-2007004

ST16#..CP

BLUE,BLUE,TRIM8#

 1
63305-2007002

ST16#..CP

RED,RED,TRIM3#

 1
63305-2007006

ST16#..CP

BROWN,BROWN,TRIM4#

 1
63305-2007003

ST16#..CP

GRAY,SHADOW GRAY,TRIM1#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63305-2007004

ST16#..CP

BLUE,BLUE,TRIM8#

 1
63305-2007002

ST16#..CP

RED,RED,TRIM3#

 1
63305-2007006

ST16#..CP

BROWN,BROWN,TRIM4#

 1
63305-2007003

ST16#..CP

GRAY,SHADOW GRAY,TRIM1#

 1
