ST161L-BCMVEA (1985)
Toyota Celica

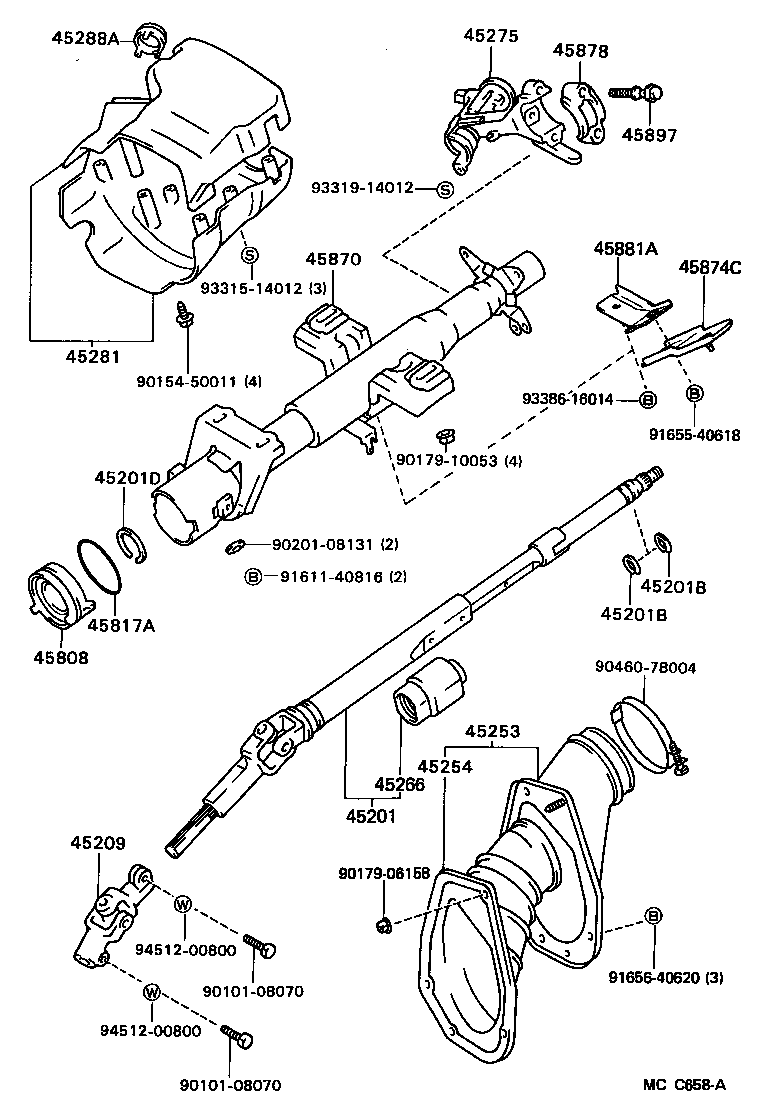

(8508- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-20200 |
ST16#..GT,ST W/TILT SEERING |
1 | ||
| 45210-20220 |
ST16#..(CP,LB)..(GT,GTS) W/TILT & TELESCOPIC STEERING |
1 | ||
| 45210-20250 |
ST16#..ST |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
ST16#..ST T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
ST16#..GT,ST T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
ST16#..ST T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
ST16#..GT,ST T=1.20,T=1.2 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
ST16# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
ST16# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-20160 |
ST16# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20110 |
ST16# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
ST16# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-20340 |
ST16#..GT,ST W/TILT STEERING |
1 | ||
| 45280-20350 |
ST16#..GT,GTS W/TILT & TELESCOPIC STEERING |
1 | ||
| 45280-20330 |
ST16#..ST |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2090203 |
ST16#..ST SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2090204 |
ST16#..ST DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090202 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 45287-2090402 |
ST16#..GT,ST W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45287-2090404 |
ST16#..GT,ST W/TILT STEERING,DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090602 |
ST16#..(CP,LB)..(GT,GTS) W/TILT & TELESCOPIC,RED,RED,TRIM3# |
1 | ||
| 45287-2090206 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2090604 |
ST16#..(CP,LB)..(GT,GTS) W/TILT&TELESCOPIC,DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090403 |
ST16#..GT,ST W/TILT STEERING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2090406 |
ST16#..GT,ST W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2090606 |
ST16#..(CP,LB)..(GT,GTS) W/TILT&TELESCOPIC,BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2090603 |
ST16#..(CP,LB)..(GT,GTS) W/TILT&TELESCOPIC,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-30010 |
ST16#..ST |
1 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-20030 |
ST16# |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24056 |
ST16# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-20170 |
ST16#..ST |
1 | ||
| 45870-20180 |
ST16#..GT,ST W/TILT STEERING |
1 | ||
| 45870-20190 |
ST16#..(CP,LB)..(GT,GTS) W/TILT & TELESCOPIC STEERING |
1 | ||
| 45874C - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45802-20010 |
ST16#..ST |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-20200 |
ST16#..ST |
1 | ||
| 45881A - PROTECTOR, STEERING COLUMN, NO.2 | ||||
| 45881-20010 |
ST16#..ST |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ST16#..GT,ST |
2 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90154-50011 | ||||
| 90179-06158 | ||||
| 90179-10053 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-40816 | ||||
| 91655-40618 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93386-16014 | ||||
| 94512-00800 | ||||

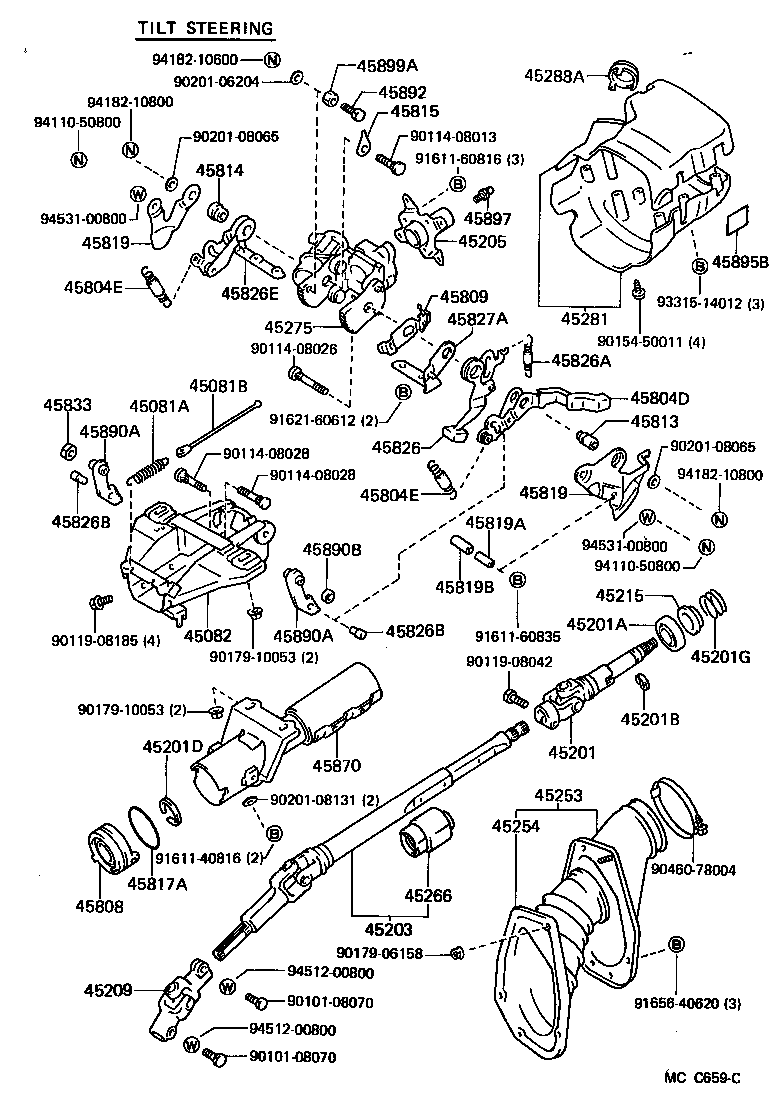

(8508- )GT,ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-32003 |
ST16#..(CP,LB)..(GT,GTS) W/TELESC0PIC STEERING |
2 | ||
| 90506-29010 |
ST16#..GT,ST |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02086 |
ST16#..(CP,LB)..(GT,GTS) L=121,W/TELESCOPIC STEERING,L=133.5 |
2 | ||
| 90945-02052 |
ST16#..(CP,LB)..(GT,GTS) L=122,W/TELESCOPIC STEERING,L=134.5 |
2 | ||
| 90945-02087 |
ST16#..GT,ST L=139,L=151.5 |
2 | ||
| 90945-02090 |
ST16#..GT,ST L=141,L=153.5 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-20060 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45082-20050 |
ST16#..GT,ST |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-20200 |
ST16#..GT,ST W/TILT SEERING |
1 | ||
| 45210-20220 |
ST16#..(CP,LB)..(GT,GTS) W/TILT & TELESCOPIC STEERING |
1 | ||
| 45210-20250 |
ST16#..ST |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
ST16#..GT,ST UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
ST16#..ST T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
ST16#..GT,ST T=1.20,T=1.2 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
ST16# |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
ST16#..GT,ST |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-20110 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45220-20100 |
ST16#..GT,ST |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-20210 |
ST16#..GT,ST |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
ST16# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
ST16#..GT,ST |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-20160 |
ST16# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20110 |
ST16# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
ST16# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-20340 |
ST16#..GT,ST W/TILT STEERING |
1 | ||
| 45280-20350 |
ST16#..GT,GTS W/TILT & TELESCOPIC STEERING |
1 | ||
| 45280-20330 |
ST16#..ST |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2090203 |
ST16#..ST SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2090204 |
ST16#..ST DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090202 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 45287-2090402 |
ST16#..GT,ST W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45287-2090404 |
ST16#..GT,ST W/TILT STEERING,DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090602 |
ST16#..(CP,LB)..(GT,GTS) W/TILT & TELESCOPIC,RED,RED,TRIM3# |
1 | ||
| 45287-2090206 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2090604 |
ST16#..(CP,LB)..(GT,GTS) W/TILT&TELESCOPIC,DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090403 |
ST16#..GT,ST W/TILT STEERING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2090406 |
ST16#..GT,ST W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2090606 |
ST16#..(CP,LB)..(GT,GTS) W/TILT&TELESCOPIC,BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2090603 |
ST16#..(CP,LB)..(GT,GTS) W/TILT&TELESCOPIC,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-30010 |
ST16#..ST |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-20050 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45804-20030 |
ST16#..GT,ST |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13001 |
ST16#..GT,ST |
2 | ||
| 90507-13002 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
2 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13001 |
ST16#..GT,ST |
2 | ||
| 90507-13002 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
2 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-20030 |
ST16# |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-20050 |
ST16#..GT,ST |
1 | ||
| 45809-20060 |
ST16#..(CP,LB)..(GT,GTS) W/TELESC0PIC STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20020 |
ST16# OD=17.996-18.003 |
1 | ||
| 45813-20060 |
ST16# OD=17.989-17.996 |
1 | ||
| 45813-20030 |
ST16# OD=18.003-18.010 |
1 | ||
| 45813-20050 |
ST16# OD=18.017-18.024 |
1 | ||
| 45813-20040 |
ST16# OD=18.010-18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20010 |
ST16# OD=17.996-18.003 |
1 | ||
| 45814-20030 |
ST16# OD=18.010-18.017 |
1 | ||
| 45814-20050 |
ST16# OD=17.989-17.996 |
1 | ||
| 45814-20040 |
ST16# OD=18.017-18.024 |
1 | ||
| 45814-20020 |
ST16# OD=18.003-18.010 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20010 |
ST16# T=0.2 |
1 | ||
| 45815-20050 |
ST16# T=1.8 |
1 | ||
| 45815-20040 |
ST16# T=1.4 |
1 | ||
| 45815-20030 |
ST16# T=0.8 |
1 | ||
| 45815-20020 |
ST16# T=0.5 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24056 |
ST16# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-20010 |
ST16#..GT,ST LH |
1 | ||
| 45819-20020 |
ST16# RH |
1 | ||
| 45819-20030 |
ST16#..(CP,LB)..(GT,GTS) LH,W/TELESCOPIC STEERING |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-20010 |
ST16#..GT,ST LH |
1 | ||
| 45819-20020 |
ST16# RH |
1 | ||
| 45819-20030 |
ST16#..(CP,LB)..(GT,GTS) LH,W/TELESCOPIC STEERING |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08046 |
ST16# |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-11007 |
ST16# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-20050 |
ST16#..GT,ST |
1 | ||
| 45826-20070 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-11006 |
ST16#..GT,ST |
1 | ||
| 90507-09005 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
ST16# |
2 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
ST16# |
2 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45804-20070 |
ST16#..GT,ST |
1 | ||
| 45804-20040 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45805-20010 |
ST16# |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20020 |
ST16# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-20170 |
ST16#..ST |
1 | ||
| 45870-20180 |
ST16#..GT,ST W/TILT STEERING |
1 | ||
| 45870-20190 |
ST16#..(CP,LB)..(GT,GTS) W/TILT & TELESCOPIC STEERING |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20070 |
ST16# LH |
1 | ||
| 45890-20080 |
ST16# RH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20070 |
ST16# LH |
1 | ||
| 45890-20080 |
ST16# RH |
1 | ||
| 45890B - SPACER(FOR TILT STEERING PAWL) | ||||
| 90560-13008 |
ST16# |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
ST16# |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-20050 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45895-20040 |
ST16#..GT,ST |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ST16#..GT,ST |
2 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
ST16# |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90154-50011 | ||||
| 90179-06158 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-40816 | ||||
| 91611-60816 | ||||
| 91611-60835 | ||||
| 91621-60612 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||

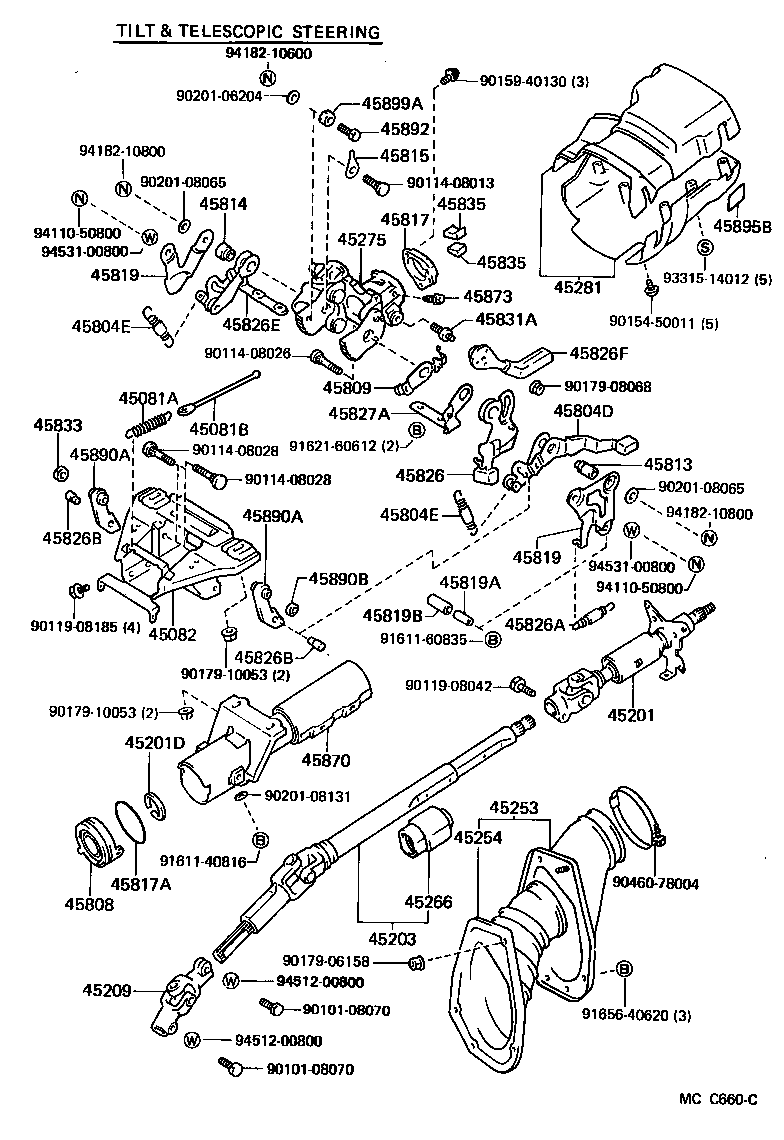

(8508- )CP,LB..GT,GTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-32003 |
ST16#..(CP,LB)..(GT,GTS) W/TELESC0PIC STEERING |
2 | ||
| 90506-29010 |
ST16#..GT,ST |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02086 |
ST16#..(CP,LB)..(GT,GTS) L=121,W/TELESCOPIC STEERING,L=133.5 |
2 | ||
| 90945-02052 |
ST16#..(CP,LB)..(GT,GTS) L=122,W/TELESCOPIC STEERING,L=134.5 |
2 | ||
| 90945-02087 |
ST16#..GT,ST L=139,L=151.5 |
2 | ||
| 90945-02090 |
ST16#..GT,ST L=141,L=153.5 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-20060 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45082-20050 |
ST16#..GT,ST |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-20200 |
ST16#..GT,ST W/TILT SEERING |
1 | ||
| 45210-20220 |
ST16#..(CP,LB)..(GT,GTS) W/TILT & TELESCOPIC STEERING |
1 | ||
| 45210-20250 |
ST16#..ST |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
ST16# |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-20110 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45220-20100 |
ST16#..GT,ST |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
ST16# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-20160 |
ST16# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20110 |
ST16# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
ST16# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-20340 |
ST16#..GT,ST W/TILT STEERING |
1 | ||
| 45280-20350 |
ST16#..GT,GTS W/TILT & TELESCOPIC STEERING |
1 | ||
| 45280-20330 |
ST16#..ST |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2090203 |
ST16#..ST SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2090204 |
ST16#..ST DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090202 |
ST16#..ST RED,RED,TRIM3# |
1 | ||
| 45287-2090402 |
ST16#..GT,ST W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45287-2090404 |
ST16#..GT,ST W/TILT STEERING,DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090602 |
ST16#..(CP,LB)..(GT,GTS) W/TILT & TELESCOPIC,RED,RED,TRIM3# |
1 | ||
| 45287-2090206 |
ST16#..ST BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2090604 |
ST16#..(CP,LB)..(GT,GTS) W/TILT&TELESCOPIC,DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090403 |
ST16#..GT,ST W/TILT STEERING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2090406 |
ST16#..GT,ST W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2090606 |
ST16#..(CP,LB)..(GT,GTS) W/TILT&TELESCOPIC,BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2090603 |
ST16#..(CP,LB)..(GT,GTS) W/TILT&TELESCOPIC,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-20050 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45804-20030 |
ST16#..GT,ST |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13001 |
ST16#..GT,ST |
2 | ||
| 90507-13002 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
2 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13001 |
ST16#..GT,ST |
2 | ||
| 90507-13002 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
2 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-20030 |
ST16# |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-20050 |
ST16#..GT,ST |
1 | ||
| 45809-20060 |
ST16#..(CP,LB)..(GT,GTS) W/TELESC0PIC STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20020 |
ST16# OD=17.996-18.003 |
1 | ||
| 45813-20060 |
ST16# OD=17.989-17.996 |
1 | ||
| 45813-20030 |
ST16# OD=18.003-18.010 |
1 | ||
| 45813-20050 |
ST16# OD=18.017-18.024 |
1 | ||
| 45813-20040 |
ST16# OD=18.010-18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20010 |
ST16# OD=17.996-18.003 |
1 | ||
| 45814-20030 |
ST16# OD=18.010-18.017 |
1 | ||
| 45814-20050 |
ST16# OD=17.989-17.996 |
1 | ||
| 45814-20040 |
ST16# OD=18.017-18.024 |
1 | ||
| 45814-20020 |
ST16# OD=18.003-18.010 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20010 |
ST16# T=0.2 |
1 | ||
| 45815-20050 |
ST16# T=1.8 |
1 | ||
| 45815-20040 |
ST16# T=1.4 |
1 | ||
| 45815-20030 |
ST16# T=0.8 |
1 | ||
| 45815-20020 |
ST16# T=0.5 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-20020 |
ST16#..(CP,LB)..(GT,GTS) |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24056 |
ST16# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-20010 |
ST16#..GT,ST LH |
1 | ||
| 45819-20020 |
ST16# RH |
1 | ||
| 45819-20030 |
ST16#..(CP,LB)..(GT,GTS) LH,W/TELESCOPIC STEERING |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-20010 |
ST16#..GT,ST LH |
1 | ||
| 45819-20020 |
ST16# RH |
1 | ||
| 45819-20030 |
ST16#..(CP,LB)..(GT,GTS) LH,W/TELESCOPIC STEERING |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08046 |
ST16# |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-11007 |
ST16# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-20050 |
ST16#..GT,ST |
1 | ||
| 45826-20070 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-11006 |
ST16#..GT,ST |
1 | ||
| 90507-09005 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
ST16# |
2 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
ST16# |
2 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45804-20070 |
ST16#..GT,ST |
1 | ||
| 45804-20040 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45826F - LEVER, STEERING TELESCOPIC | ||||
| 45804-20060 |
ST16#..(CP,LB)..(GT,GTS) |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45805-20010 |
ST16# |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-20020 |
ST16#..(CP,LB)..(GT,GTS) |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20020 |
ST16# |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-20050 |
ST16#..(CP,LB)..(GT,GTS) BOLT SIDE |
1 | ||
| 45835-20040 |
ST16#..(CP,LB)..(GT,GTS) TUBE SIDE |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-20050 |
ST16#..(CP,LB)..(GT,GTS) BOLT SIDE |
1 | ||
| 45835-20040 |
ST16#..(CP,LB)..(GT,GTS) TUBE SIDE |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-20170 |
ST16#..ST |
1 | ||
| 45870-20180 |
ST16#..GT,ST W/TILT STEERING |
1 | ||
| 45870-20190 |
ST16#..(CP,LB)..(GT,GTS) W/TILT & TELESCOPIC STEERING |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-20030 |
ST16#..GT,GTS |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20070 |
ST16# LH |
1 | ||
| 45890-20080 |
ST16# RH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20070 |
ST16# LH |
1 | ||
| 45890-20080 |
ST16# RH |
1 | ||
| 45890B - SPACER(FOR TILT STEERING PAWL) | ||||
| 90560-13008 |
ST16# |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
ST16# |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-20050 |
ST16#..(CP,LB)..(GT,GTS) W/TELESCOPIC STEERING |
1 | ||
| 45895-20040 |
ST16#..GT,ST |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
ST16# |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90154-50011 | ||||
| 90159-40130 | ||||
| 90179-06158 | ||||
| 90179-08068 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-40816 | ||||
| 91611-60835 | ||||
| 91621-60612 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
