ST161L-BCMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )5F

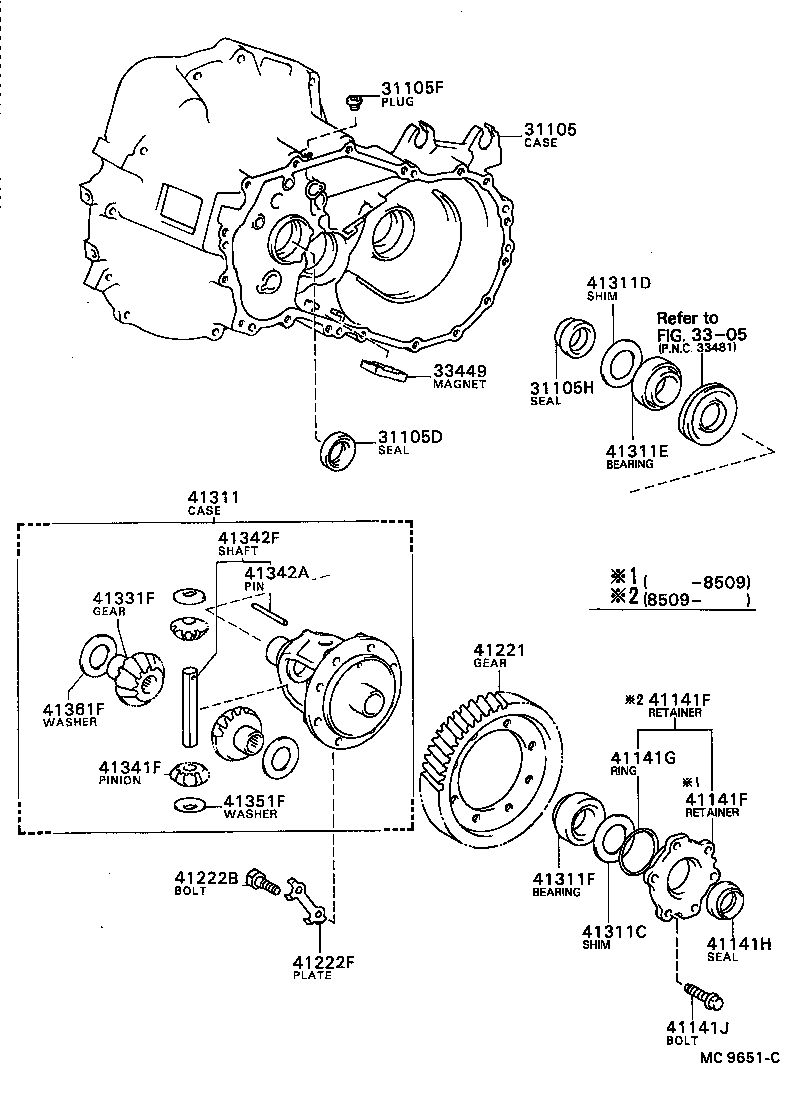

Click highlighted areas on diagram

diagram 31105 31105D 31105F 31105H 3305 33449 41141F 41141F 41141G 41141H 41141J 41221 41222B 41222F 41311 41311C 41311D 41311E 41311F 41331F 41341F 41342A 41342F 41351F 41361F
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-32014

ST16#..5F

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30002

ST16#..5F

 1
31105F - PLUG(FOR TRANSAXLE CASE)
90341-10065

ST16#..5F

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35014

ST16#..5F

 1
33449 - MAGNET, TRANSMISSION
33449-32010

ST16#..5F

 1
41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141-32010

ST16#..5F

 1
41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141-32010

ST16#..5F

 1
41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90301-63004

ST16#..5F

 1
41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-35014

ST16#..5F

 1
41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90105-08061

ST16#..5F

*8-1.25PX26.5-23.5

 6
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-32030

ST16#..GT,ST

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003

ST16#

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010

ST16#

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-32010

ST16#..5F

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-45001

ST16#..5F

T=1.90,MARK 01,T=1.90

 1
90564-45005

ST16#..5F

T=2.10,MARK 05,T=2.10

 1
90564-45009

ST16#..5F

T=2.30,MARK 09,T=2.30

 1
90564-45006

ST16#..5F

T=2.15,MARK 06,T=2.15

 1
90564-45003

ST16#..5F

T=2.00,MARK 03,T=2.00

 1
90564-45004

ST16#..5F

T=2.05,MARK 04,T=2.05

 1
90564-45007

ST16#..5F

T=2.20,MARK 07,T=2.20

 1
90564-45011

ST16#

T=2.40,MARK 11,T=2.40

 1
90564-45008

ST16#..5F

T=2.25,MARK 08,T=2.25

 1
90564-45002

ST16#..5F

T=1.95,MARK 02,T=1.95

 1
90564-45015

ST16#..5F

T=2.60,MARK 15,T=2.60

 1
90564-45019

ST16#..5F

T=2.80,MARK 19,T=2.80

 1
90564-45010

ST16#..5F

T=2.35,MARK 10,T=2.35

 1
90564-45017

ST16#..5F

T=2.70,MARK 17,T=2.70

 1
90564-45012

ST16#..5F

T=2.45,MARK 12,T=2.45

 1
90564-45018

ST16#..5F

T=2.75,MARK 18,T=2.75

 1
90564-45013

ST16#..5F

T=2.50,MARK 13,T=2.50

 1
90564-45016

ST16#..5F

T=2.65,MARK 16,T=2.65

 1
90564-45014

ST16#..5F

T=2.55,MARK 14,T=2.55

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011

ST16#

T=2.40,MARK 11,T=2.40

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016

ST16#

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40023

ST16#

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

ST16#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

ST16#

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ST16#

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-39025

ST16#

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ST16#

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030

ST16#

T=1.10,MARK 03,T=1.1

 2
41361-22020

ST16#

T=1.00,MARK 02,T=1.0

 2
41361-22040

ST16#

T=1.20,MARK 04,T=1.2

 2
41361-22150

ST16#

T=1.05,MARK 15,T=1.05

 2
41361-22140

ST16#

T=0.95,MARK 14,T=0.95

 2
41361-22160

ST16#

T=1.15,MARK 16,T=1.15

 2
