ST161L-BCMSEA (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508-8601)

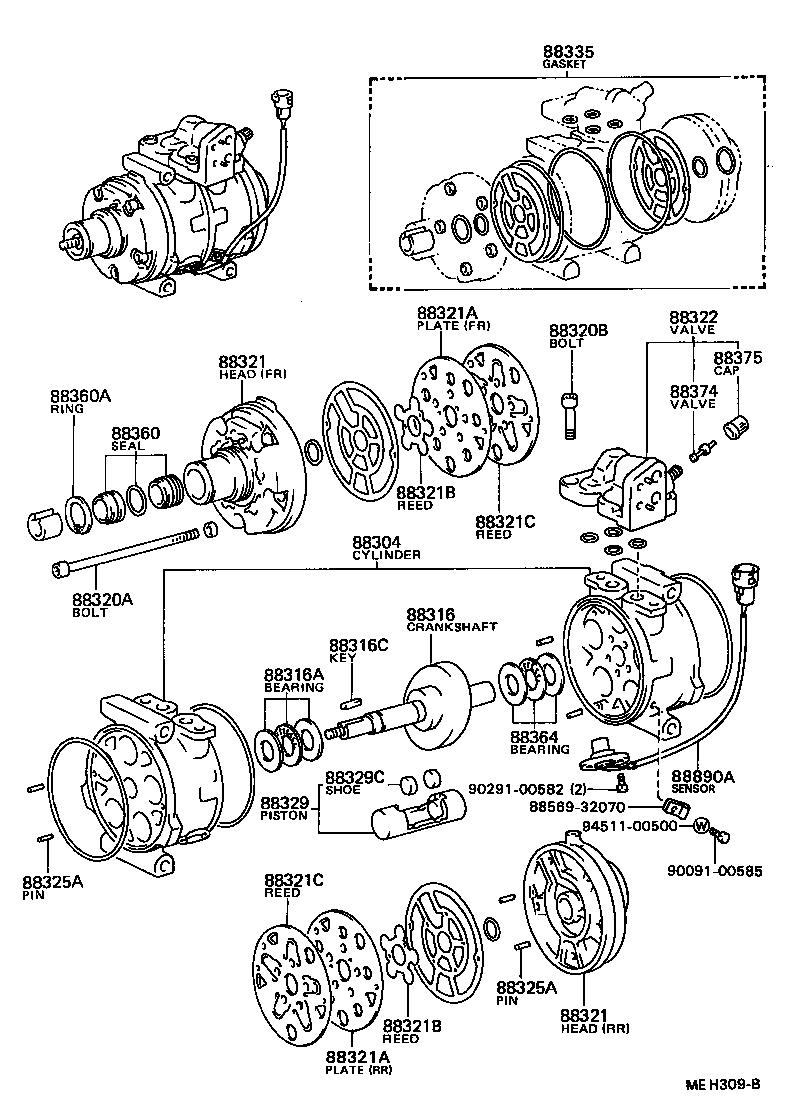

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-20080 |
ST16# |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20080 |
ST16# |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
ST16# |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13024 |
ST16# |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
ST16# |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04255 |
ST16# |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
ST16# RR |
1 | ||
| 88321-14011 |
ST16# FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
ST16# RR |
1 | ||
| 88321-14011 |
ST16# FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
ST16# FR |
1 | ||
| 88342-14010 |
ST16# RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
ST16# FR |
1 | ||
| 88342-14010 |
ST16# RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
ST16# |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
ST16# |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
ST16# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
ST16# |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-20210 |
ST16# |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
ST16# |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
ST16# |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-14020 |
ST16# |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
ST16# |
10 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12020 |
ST16# |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
ST16# |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
ST16# |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
ST16# |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
ST16# |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
ST16# |
1 | ||
| 88890A - PICK UP, ASSY | ||||
| 88890-20030 |
ST16# |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90091-00585 | ||||
| 90291-00582 | ||||
| 94511-00500 | ||||
(8601- )

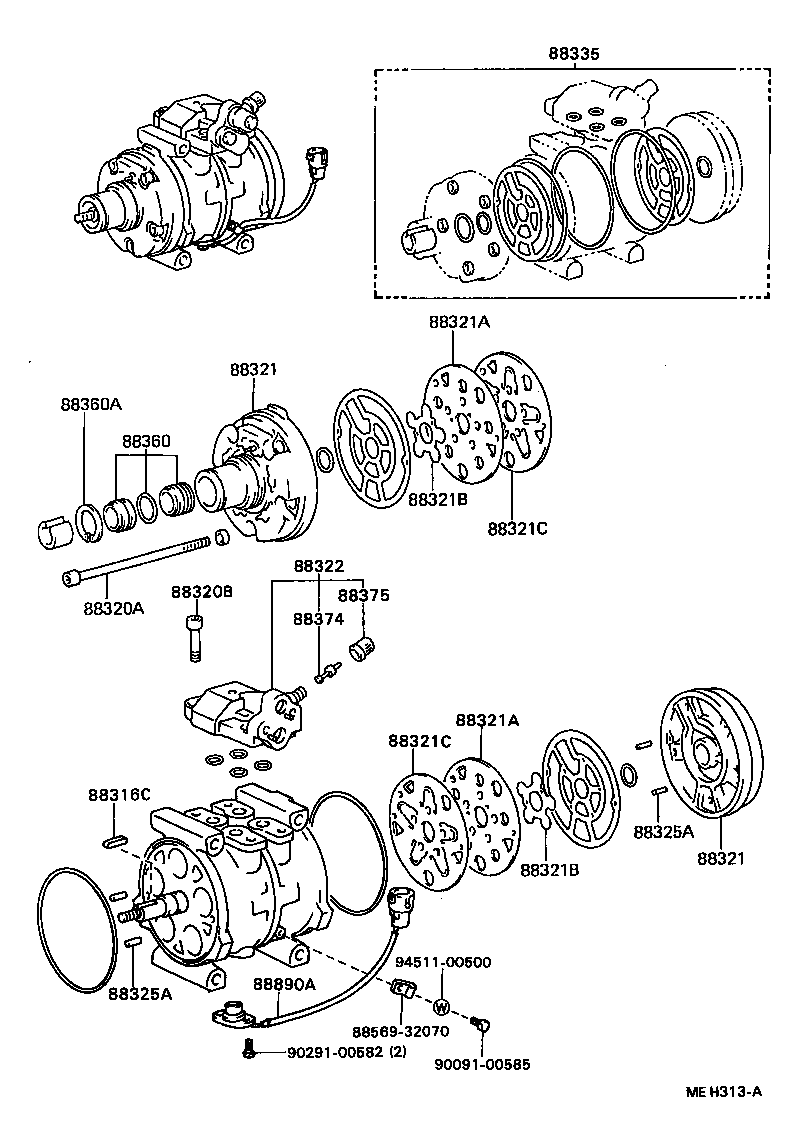

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13024 |
ST16# |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
ST16# |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04255 |
ST16# |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
ST16# RR |
1 | ||
| 88321-14011 |
ST16# FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
ST16# RR |
1 | ||
| 88321-14011 |
ST16# FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
ST16# FR |
1 | ||
| 88342-14010 |
ST16# RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
ST16# FR |
1 | ||
| 88342-14010 |
ST16# RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
ST16# |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
ST16# |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
ST16# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
ST16# |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-20210 |
ST16# |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
ST16# |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
ST16# |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12020 |
ST16# |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
ST16# |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
ST16# |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
ST16# |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
ST16# |
1 | ||
| 88890A - PICK UP, ASSY | ||||
| 88890-20030 |
ST16# |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90091-00585 | ||||
| 90291-00582 | ||||
| 94511-00500 | ||||
(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04326 | ||||

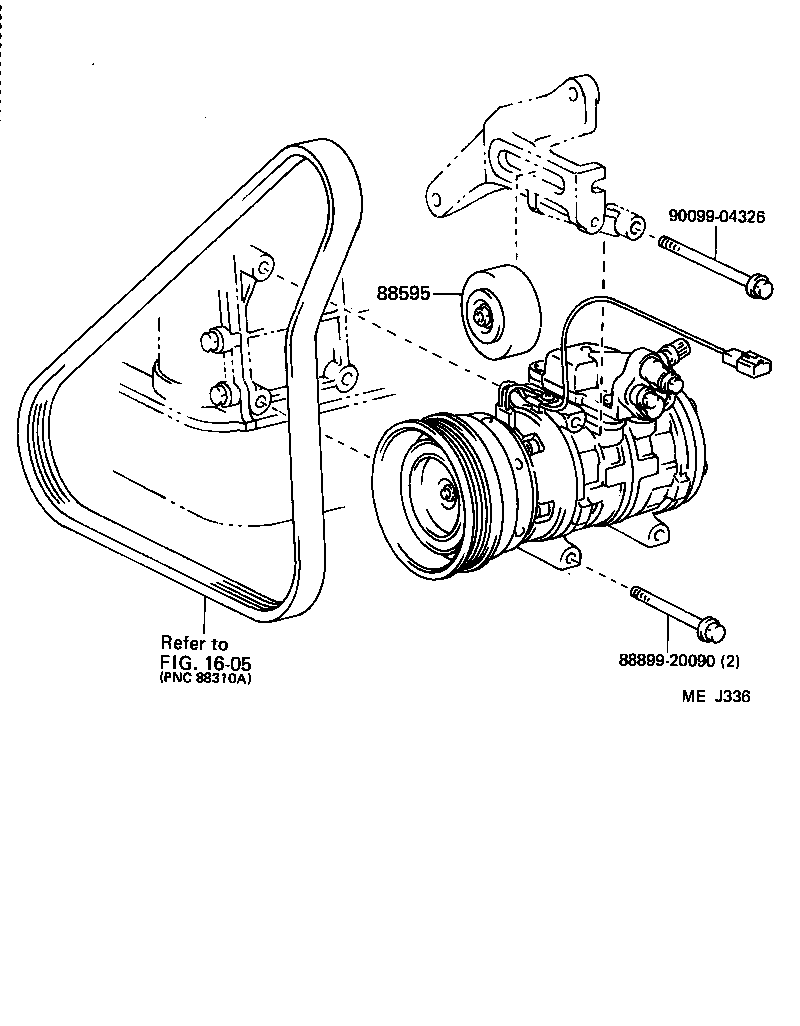

| Linked diagrams | ||||
| 1605 | ||||
(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

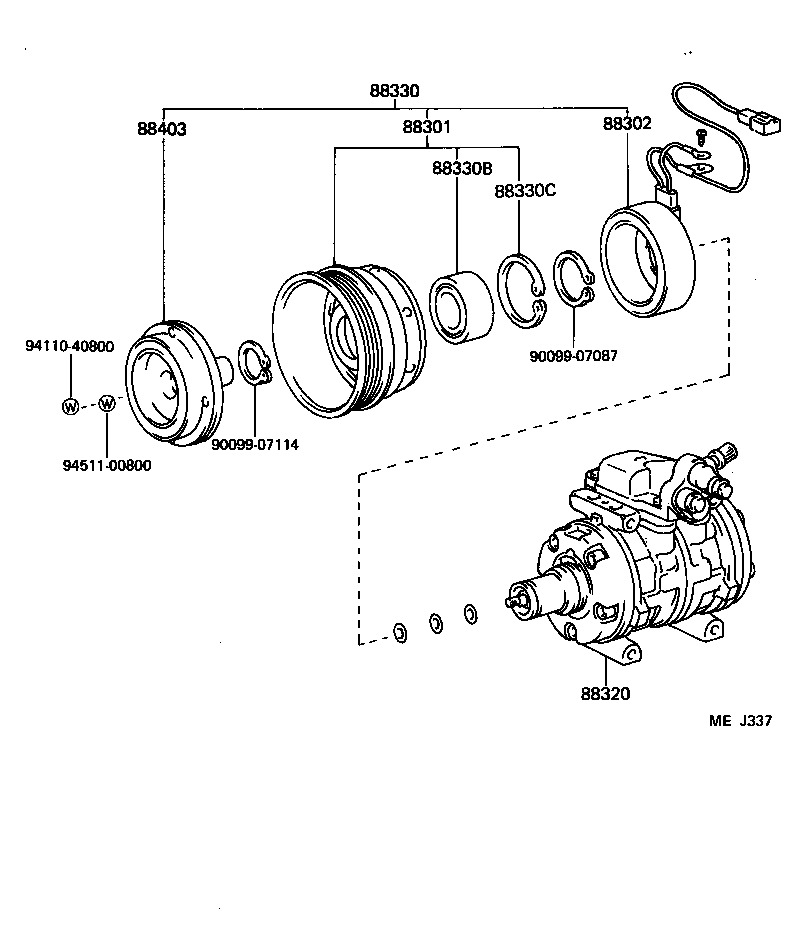

| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-32010 |
ST16# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-32010 |
ST16# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20450 |
ST16# |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14170 |
ST16# |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
ST16# |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07118 |
ST16# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
ST16# |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
