RA65L-BLMQEK (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)22R

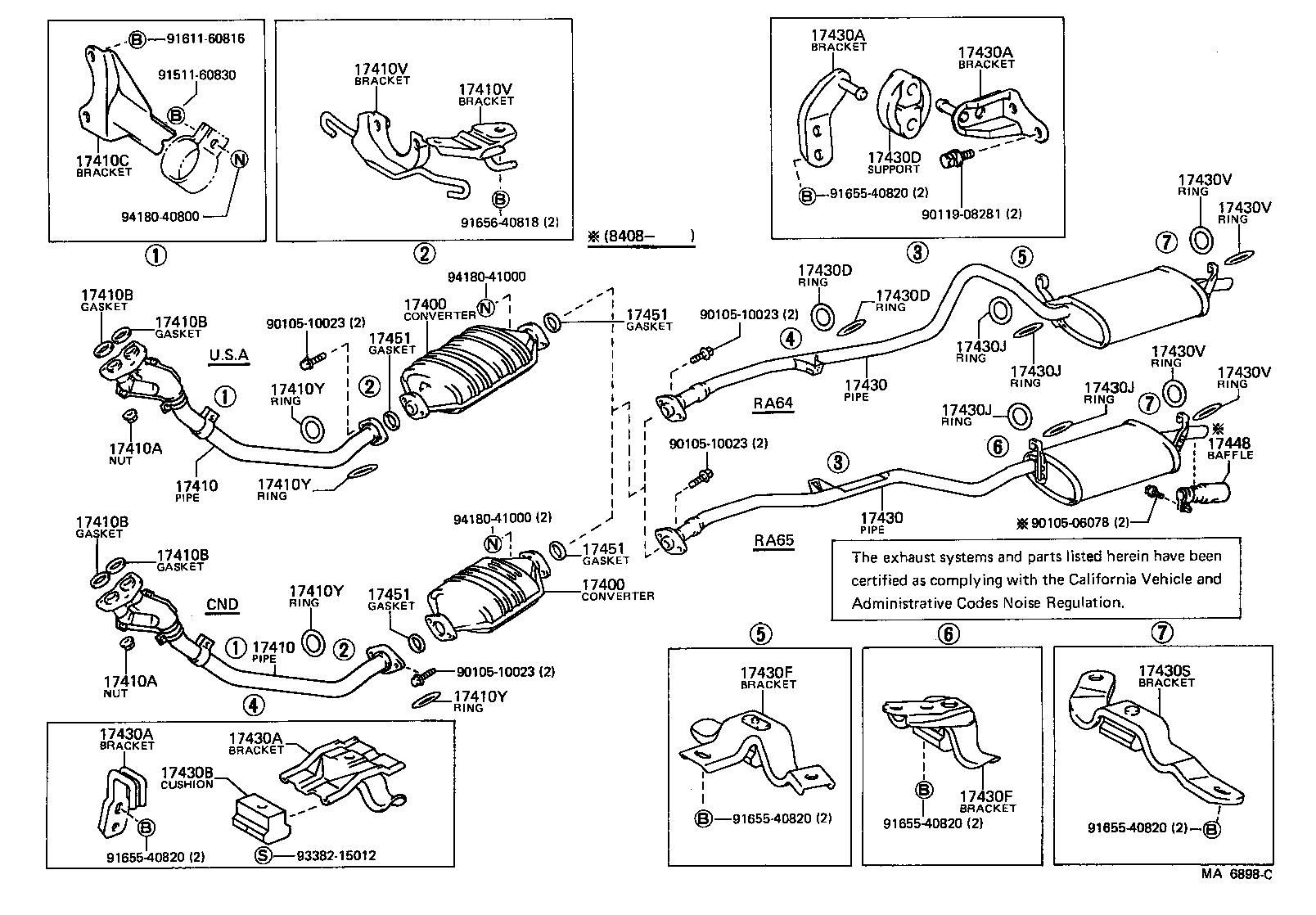

Click highlighted areas on diagram

diagram 17400 17400A 17410 17410A 17410B 17410B 17410C 17410E 17410V 17410V 17410Y 17410Y 17430 17430A 17430A 17430B 17430D 17430D 17430F 17430J 17430J 17430S 17430V 17430V 17451 17451 9010510023 9010510023 9151161070 9161140816 9165540820 9165540820 9165540820 9165640818 9338215012 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-13030

22REC..RA6#..CND

 1
18450-13031

22REC..RA6#..CND

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35070

22REC..RA6#..CND

 1
17410-35131

22REC..RA6#..CND

 1
17410-35130

22REC..RA6#..CND

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

22R#,5MGE..MA61,RA6#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

22R#..RA6#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22R#..RA6#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-34091

22REC..RA6#

 1
17571-37040

22R#..RA6#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04030

22R#,5MGE..MA61,RA6#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-28050

22R#..RA6#

SIDE MEMBER

 1
17503-35050

22REC..RA6#..CND

CCO SUPPORT

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-28050

22R#..RA6#

SIDE MEMBER

 1
17503-35050

22REC..RA6#..CND

CCO SUPPORT

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

22R#,5MGE..MA61,RA6#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

22R#,5MGE..MA61,RA6#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-35110

22REC..RA65

 1
17430-35410

22REC..RA65

 1
17430-35080

22REC..RA65

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17509-28010

22REC,5MGE..MA61,RA65

LWR

 1
17506-28010

22REC,5MGE..MA61,RA65

UPR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17509-28010

22REC,5MGE..MA61,RA65

LWR

 1
17506-28010

22REC,5MGE..MA61,RA65

UPR

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

22REC,5MGE..MA61,RA65

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

22REC,5MGE..MA61,RA65

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-28010

22REC,5MGE..MA61,RA65

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-26100

22R#,5MGE..MA61,RA6#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

22REC..RA6#..CND

 2
90917-06012

22R#,5MGE..MA61,RA6#

RR

 1
90917-06023

22R#,5MGE..MA61,RA6#

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

22REC..RA6#..CND

 2
90917-06012

22R#,5MGE..MA61,RA6#

RR

 1
90917-06023

22R#,5MGE..MA61,RA6#

FR

 1
Common parts
90105-10023
91511-61070
91611-40816
91655-40820
91656-40818
93382-15012
94180-41000

(8208-8308)22REC

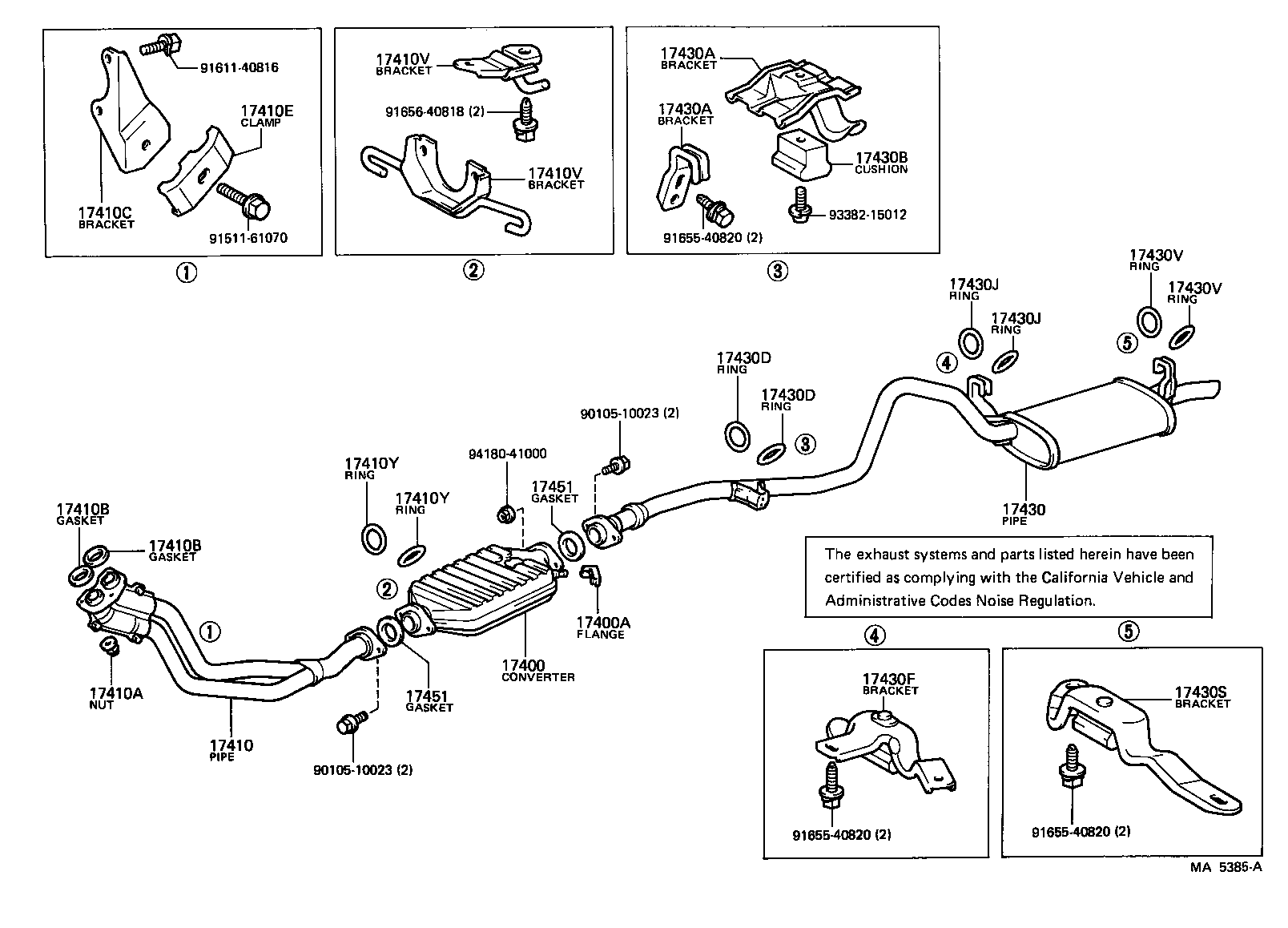

Click highlighted areas on diagram

diagram 17400 17400 17410 17410 17410A 17410A 17410B 17410B 17410B 17410B 17410C 17410E 17410V 17410V 17410V 17410Y 17410Y 17410Y 17410Y 17430 17430 17430A 17430A 17430A 17430A 17430B 17430D 17430D 17430D 17430F 17430F 17430J 17430J 17430J 17430J 17430S 17430V 17430V 17430V 17430V 17451 17451 17451 17451 18435 18448 9010510023 9010510023 9010510023 9010510023 9011908281 9017908046 9151161070 9151560825 9161140816 9165540820 9165540820 9165540820 9165540820 9165540820 9165640818 9165640818 9338215012 9418041000 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-13030

22REC..RA6#..CND

 1
18450-13031

22REC..RA6#..CND

 1
17400 - CONVERTER ASSY, W/CATALYST
18450-13030

22REC..RA6#..CND

 1
18450-13031

22REC..RA6#..CND

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35070

22REC..RA6#..CND

 1
17410-35131

22REC..RA6#..CND

 1
17410-35130

22REC..RA6#..CND

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35070

22REC..RA6#..CND

 1
17410-35131

22REC..RA6#..CND

 1
17410-35130

22REC..RA6#..CND

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

22R#,5MGE..MA61,RA6#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

22R#,5MGE..MA61,RA6#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

22R#..RA6#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22R#..RA6#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22R#..RA6#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22R#..RA6#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-34091

22REC..RA6#

 1
17571-37040

22R#..RA6#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04030

22R#,5MGE..MA61,RA6#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-28050

22R#..RA6#

SIDE MEMBER

 1
17503-35050

22REC..RA6#..CND

CCO SUPPORT

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-28050

22R#..RA6#

SIDE MEMBER

 1
17503-35050

22REC..RA6#..CND

CCO SUPPORT

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-28050

22R#..RA6#

SIDE MEMBER

 1
17503-35050

22REC..RA6#..CND

CCO SUPPORT

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

22R#,5MGE..MA61,RA6#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

22R#,5MGE..MA61,RA6#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

22R#,5MGE..MA61,RA6#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

22R#,5MGE..MA61,RA6#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-35110

22REC..RA65

 1
17430-35410

22REC..RA65

 1
17430-35080

22REC..RA65

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-35110

22REC..RA65

 1
17430-35410

22REC..RA65

 1
17430-35080

22REC..RA65

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17509-28010

22REC,5MGE..MA61,RA65

LWR

 1
17506-28010

22REC,5MGE..MA61,RA65

UPR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17509-28010

22REC,5MGE..MA61,RA65

LWR

 1
17506-28010

22REC,5MGE..MA61,RA65

UPR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17509-28010

22REC,5MGE..MA61,RA65

LWR

 1
17506-28010

22REC,5MGE..MA61,RA65

UPR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17509-28010

22REC,5MGE..MA61,RA65

LWR

 1
17506-28010

22REC,5MGE..MA61,RA65

UPR

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

22REC,5MGE..MA61,RA65

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

22REC,5MGE..MA61,RA65

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

22REC,5MGE..MA61,RA65

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-28010

22REC,5MGE..MA61,RA65

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-28010

22REC,5MGE..MA61,RA65

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-26100

22R#,5MGE..MA61,RA6#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

22REC..RA6#..CND

 2
90917-06012

22R#,5MGE..MA61,RA6#

RR

 1
90917-06023

22R#,5MGE..MA61,RA6#

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

22REC..RA6#..CND

 2
90917-06012

22R#,5MGE..MA61,RA6#

RR

 1
90917-06023

22R#,5MGE..MA61,RA6#

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

22REC..RA6#..CND

 2
90917-06012

22R#,5MGE..MA61,RA6#

RR

 1
90917-06023

22R#,5MGE..MA61,RA6#

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

22REC..RA6#..CND

 2
90917-06012

22R#,5MGE..MA61,RA6#

RR

 1
90917-06023

22R#,5MGE..MA61,RA6#

FR

 1
Common parts
90105-10023
90119-08281
90179-08046
91511-61070
91515-60825
91611-40816
91655-40820
91656-40818
93382-15012
94180-41000

(8308-8507)22REC

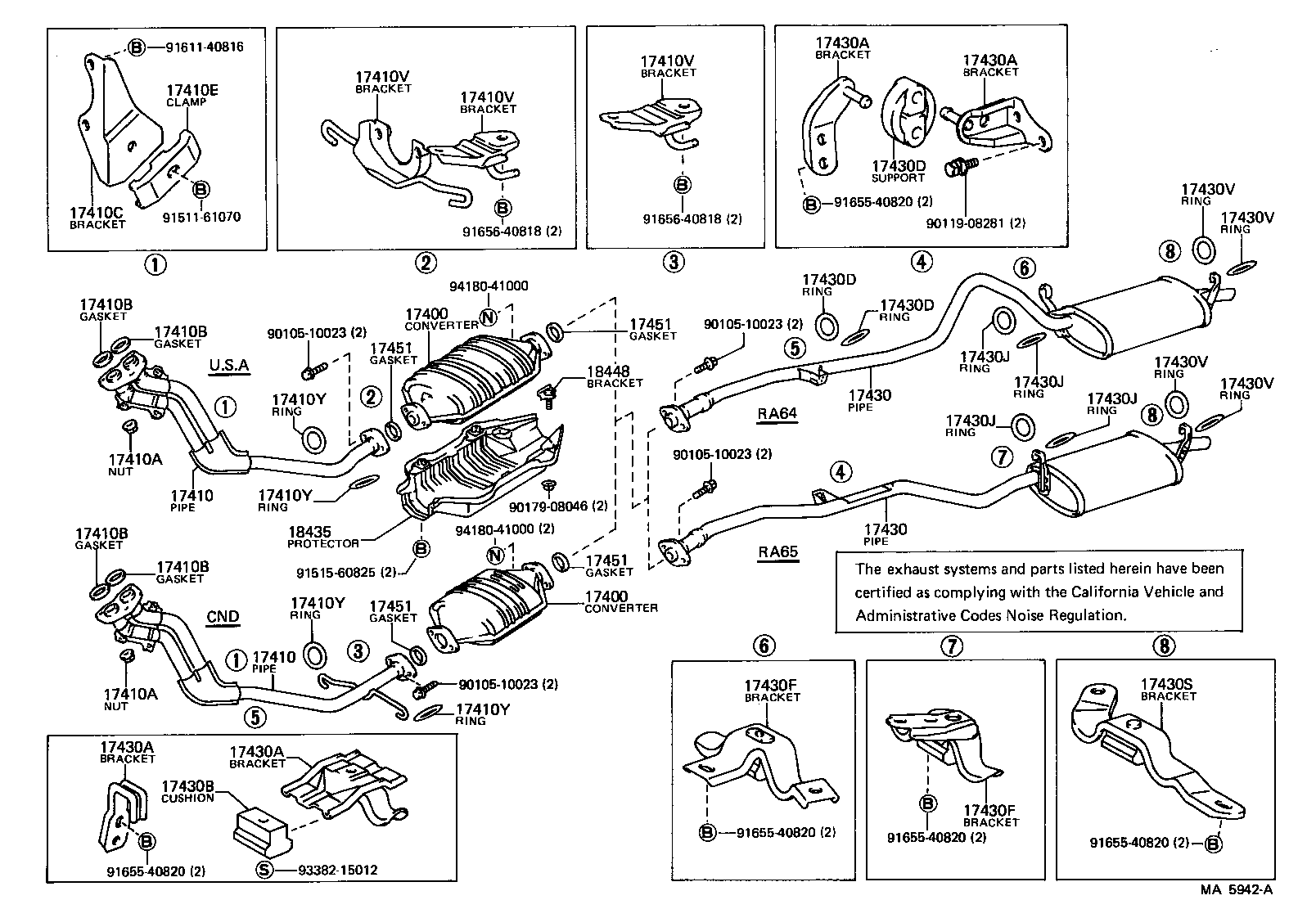

Click highlighted areas on diagram

diagram 17400 17400 17410 17410 17410A 17410A 17410B 17410B 17410B 17410B 17410C 17410V 17410V 17410Y 17410Y 17410Y 17410Y 17430 17430 17430A 17430A 17430A 17430A 17430B 17430D 17430D 17430D 17430F 17430F 17430J 17430J 17430J 17430J 17430S 17430V 17430V 17430V 17430V 17448 17451 17451 17451 17451 9010506078 9010510023 9010510023 9010510023 9010510023 9011908281 9151160830 9161160816 9165540820 9165540820 9165540820 9165540820 9165540820 9165640818 9338215012 9418040800 9418041000 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-13030

22REC..RA6#..CND

 1
18450-13031

22REC..RA6#..CND

 1
17400 - CONVERTER ASSY, W/CATALYST
18450-13030

22REC..RA6#..CND

 1
18450-13031

22REC..RA6#..CND

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35070

22REC..RA6#..CND

 1
17410-35131

22REC..RA6#..CND

 1
17410-35130

22REC..RA6#..CND

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35070

22REC..RA6#..CND

 1
17410-35131

22REC..RA6#..CND

 1
17410-35130

22REC..RA6#..CND

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

22R#,5MGE..MA61,RA6#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

22R#,5MGE..MA61,RA6#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

22R#..RA6#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22R#..RA6#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22R#..RA6#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22R#..RA6#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-34091

22REC..RA6#

 1
17571-37040

22R#..RA6#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-28050

22R#..RA6#

SIDE MEMBER

 1
17503-35050

22REC..RA6#..CND

CCO SUPPORT

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-28050

22R#..RA6#

SIDE MEMBER

 1
17503-35050

22REC..RA6#..CND

CCO SUPPORT

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

22R#,5MGE..MA61,RA6#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

22R#,5MGE..MA61,RA6#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

22R#,5MGE..MA61,RA6#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

22R#,5MGE..MA61,RA6#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-35110

22REC..RA65

 1
17430-35410

22REC..RA65

 1
17430-35080

22REC..RA65

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-35110

22REC..RA65

 1
17430-35410

22REC..RA65

 1
17430-35080

22REC..RA65

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17509-28010

22REC,5MGE..MA61,RA65

LWR

 1
17506-28010

22REC,5MGE..MA61,RA65

UPR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17509-28010

22REC,5MGE..MA61,RA65

LWR

 1
17506-28010

22REC,5MGE..MA61,RA65

UPR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17509-28010

22REC,5MGE..MA61,RA65

LWR

 1
17506-28010

22REC,5MGE..MA61,RA65

UPR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17509-28010

22REC,5MGE..MA61,RA65

LWR

 1
17506-28010

22REC,5MGE..MA61,RA65

UPR

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

22REC,5MGE..MA61,RA65

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

22REC,5MGE..MA61,RA65

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

22REC,5MGE..MA61,RA65

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-28010

22REC,5MGE..MA61,RA65

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-28010

22REC,5MGE..MA61,RA65

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-26100

22R#,5MGE..MA61,RA6#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

22R#,5MGE..MA61,RA6#

 2
17448 - BAFFLE, TAIL PIPE
17408-70010

22REC..RA65

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

22REC..RA6#..CND

 2
90917-06012

22R#,5MGE..MA61,RA6#

RR

 1
90917-06023

22R#,5MGE..MA61,RA6#

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

22REC..RA6#..CND

 2
90917-06012

22R#,5MGE..MA61,RA6#

RR

 1
90917-06023

22R#,5MGE..MA61,RA6#

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

22REC..RA6#..CND

 2
90917-06012

22R#,5MGE..MA61,RA6#

RR

 1
90917-06023

22R#,5MGE..MA61,RA6#

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

22REC..RA6#..CND

 2
90917-06012

22R#,5MGE..MA61,RA6#

RR

 1
90917-06023

22R#,5MGE..MA61,RA6#

FR

 1
Common parts
90105-06078
90105-10023
90119-08281
91511-60830
91611-60816
91655-40820
91656-40818
93382-15012
94180-40800
94180-41000
