RA65L-BLMQEA (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)22R..USA

Click highlighted areas on diagram

diagram 17061 1709 17680D 17680E 17700 17700A 17700F 17700T 17705 17728 17728A 17729 17749 17801 17841 17841 17845 17848 17853 17881 17882 17882A 17882A 17883 9017908146 9017908146 9165540616 9461210800 9461210800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-35131

22REC..RA6#

 1
17700-35130

22REC..RA6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35090

22REC..RA6#

 1
17705-35120

22REC..RA6#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41110

22REC..RA6#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-35010

22REC..RA6#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-35020

22REC..RA6#

 1
Common parts
90179-08146
91655-40616
94612-10800
Linked diagrams
1709

(8208-8507)22REC

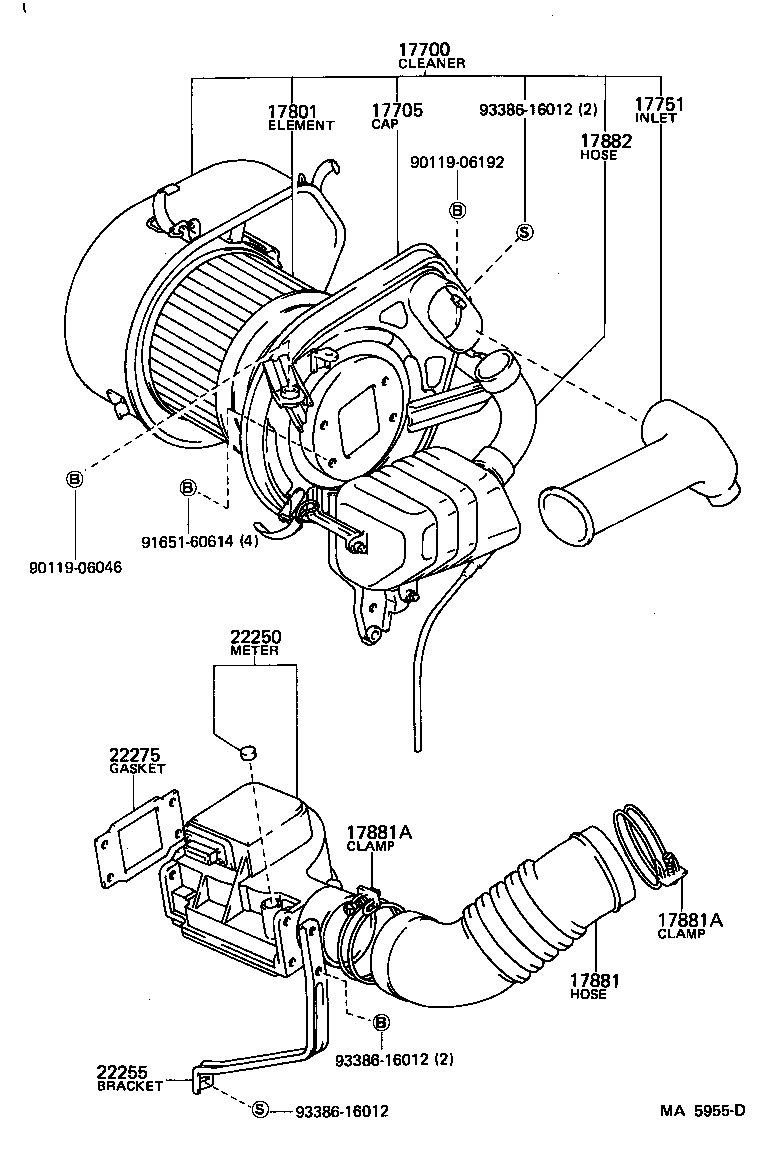

Click highlighted areas on diagram

diagram 17700 17705 17751 17801 17881 17881A 17881A 17882 22250 22255 22275 9011906046 9011906192 9165160614 9338616012 9338616012 9338616012
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-35131

22REC..RA6#

 1
17700-35130

22REC..RA6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35090

22REC..RA6#

 1
17705-35120

22REC..RA6#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-35010

22REC..RA6#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41110

22REC..RA6#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-35010

22REC..RA6#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

22REC..RA6#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

22REC..RA6#

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-35020

22REC..RA6#

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-35010

22REC..RA6#

 1
22255 - BRACKET, AIR FLOW METER
22255-35010

22REC..RA6#

 1
22275 - GASKET, AIR FLOW METER
22275-34011

22REC..RA6#

 1
Common parts
90119-06046
90119-06192
91651-60614
93386-16012
