RA65L-BCPQEA (1984)

Toyota Celica

Production Aug 1984 - Jul 1985
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP,CVT

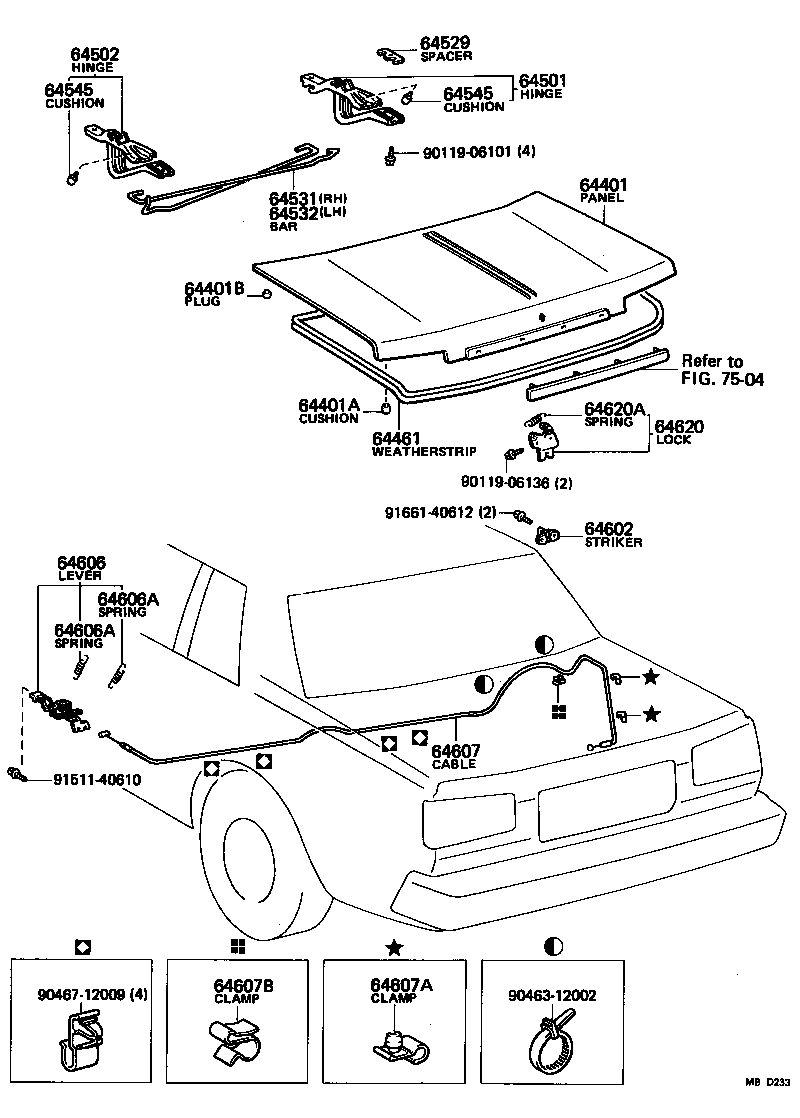

Click highlighted areas on diagram

diagram 64401 64401A 64401B 64461 64501 64502 64529 64531 64532 64545 64545 64602 64606 64606A 64606A 64607 64607A 64607B 64620 64620A 7504 9011906101 9011906136 9046312002 9046712009 9151140610 9166140612
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-14370

RA6#..CP,CVT

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09021

RA6#..CP,CVT

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06076

RA6#..CP,CVT

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-14190

RA6#..CP,CVT

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-14110

RA6#..CP

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-14100

RA6#..CP

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-22010

RA6#..CP,CVT

T=1.0

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-14140

RA6#..CP,CVT

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-14140

RA6#..CP,CVT

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07007

RA6#..CP

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07007

RA6#..CP

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-95800

RA6#..CP,CVT

 1
Common parts
90119-06101
90119-06136
90463-12002
90467-12009
91511-40610
91661-40612
Linked diagrams
7504
