RA65L-BCMQEK (1982)
Toyota Celica
Production
Aug 1982
-
Jul 1985
Engine
22REC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8507)RA65

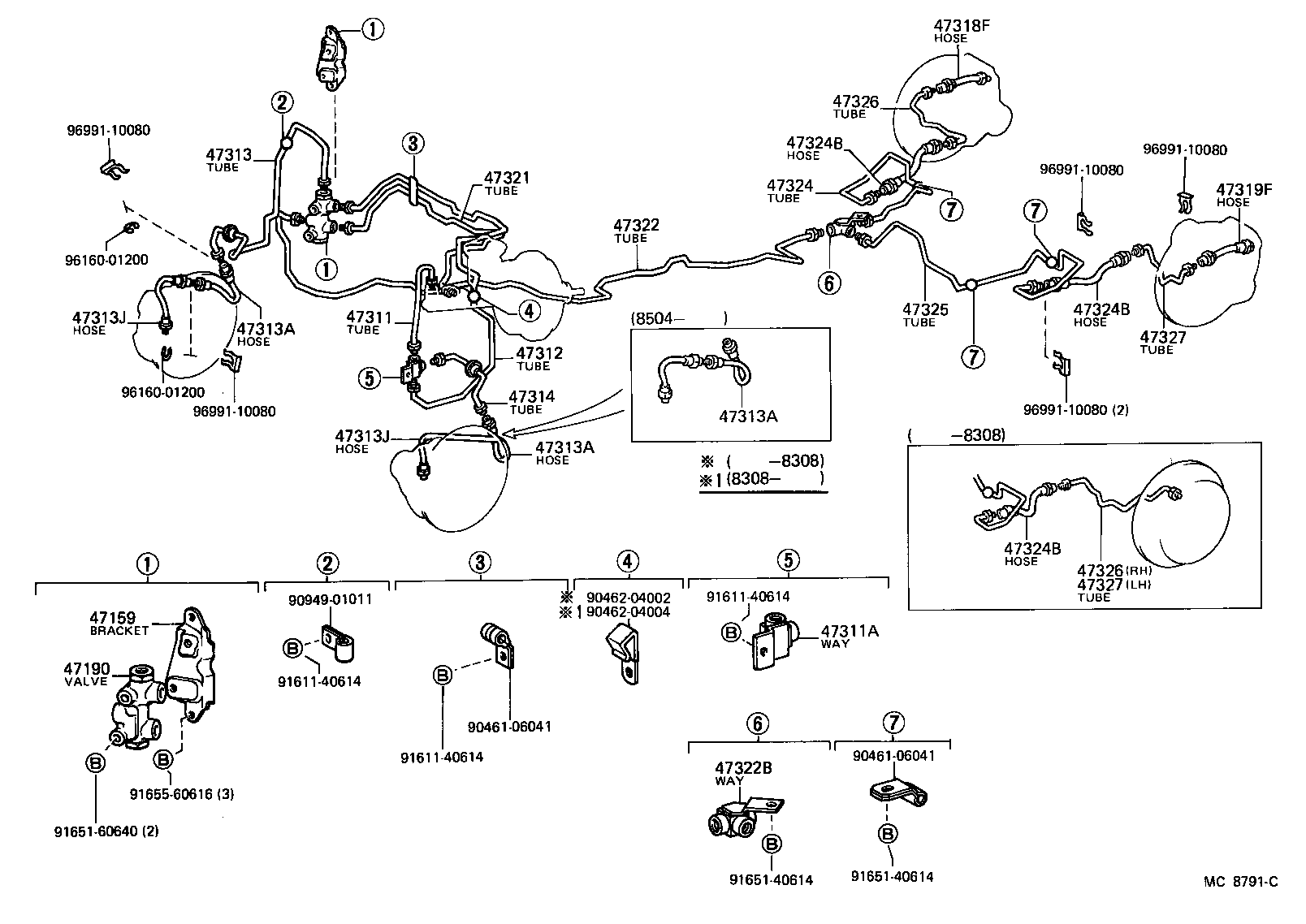

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-14041 |
RA6# |
1 | ||
| 47159-14040 |
RA6# |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-14020 |
RA6# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-14220 |
RA6# |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10004 |
RA6# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-14120 |
RA6# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-14120 |
RA6# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02427 |
RA6# |
2 | ||
| 90947-02474 |
RA6# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02427 |
RA6# |
2 | ||
| 90947-02474 |
RA6# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02427 |
RA6# |
2 | ||
| 90947-02474 |
RA6# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 96960-32455 |
RA6# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 96960-32455 |
RA6# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-14090 |
RA6# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-14110 |
RA6# |
1 | ||
| 47321-14170 |
RA6# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-14200 |
RA65 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10109 |
MA61,RA65 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-14030 |
MA61,RA65 |
1 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 96950-39955 |
MA61,RA65 |
2 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 96950-39955 |
MA61,RA65 |
2 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 96950-39955 |
MA61,RA65 |
2 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47326-14030 |
MA61,RA65 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47327-22020 |
MA61,RA65 |
1 | ||
| 47327-14020 |
RA65 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47327-22020 |
MA61,RA65 |
1 | ||
| 47327-14020 |
RA65 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47328-22020 |
MA61,RA65 |
1 | ||
| 47328-14020 |
RA65 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47328-22020 |
MA61,RA65 |
1 | ||
| 47328-14020 |
RA65 |
1 | ||
| Common parts | ||||
| 90461-06041 | ||||
| 90462-04002 | ||||
| 90462-04004 | ||||
| 90949-01011 | ||||
| 91611-40614 | ||||
| 91651-40614 | ||||
| 91651-60640 | ||||
| 91655-60616 | ||||
| 96160-01200 | ||||
| 96991-10080 | ||||
