RA65L-BCMQEA (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8507)22REC

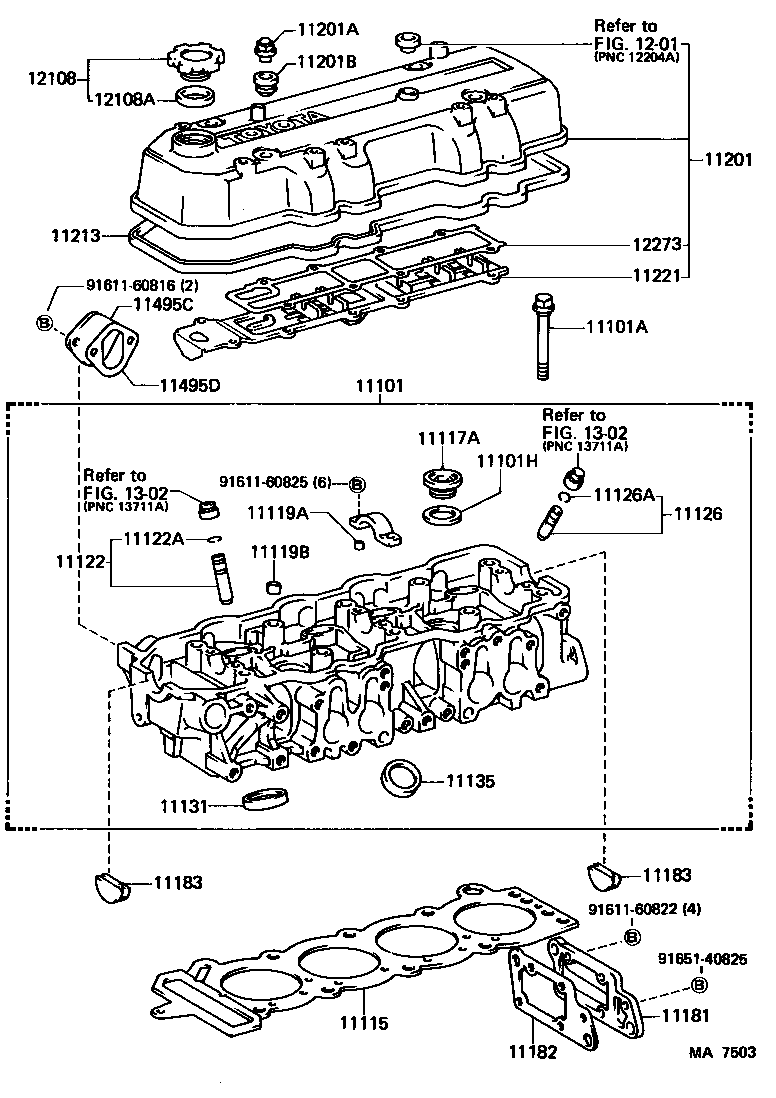

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11119A 11119B 11122 11122A 11126 11126A 11131 11135 11181 11182 11183 11183 11201 11201A 11201B 11213 11221 11495C 11495D 1201 12108 12108A 12273 1302 1302 9161160816 9161160822 9161160825 9165140825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-35060

22REC..RA6#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02058

22R#..RA6#

 10
90105-12092

22REC..RA6#

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-32222

22R#..RA6#

 2
90430-33133

22REC..RA6#

 2
11115 - GASKET, CYLINDER HEAD
11115-35030

22REC..RA6#

 1
11115-35010

22R#..RA6#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-32070

22R#..RA6#

OD=32

 2
11119A - PIN, STRAIGHT, NO.1
90253-11021

22R#..RA6#

L=8,OD=11,L=8,OD=11

 6
11119B - PIN, STRAIGHT, NO.2
90253-16020

22R#..RA6#

L=16,OD=15.5

 5
11122 - BUSH, INTAKE VALVE GUIDE
11123-38021

22R#..RA6#

O/S 0.05,O/S 0.05

 4
11122-38021

22R#..RA6#

STD,STD

 4
11123-35020

22REC..RA6#

O/S 0.05,O/S 0.05

 4
11122-35020

22REC..RA6#

STD,STD

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

22R#..RA6#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11123-38021

22R#..RA6#

O/S 0.05,O/S 0.05

 4
11122-38021

22R#..RA6#

STD,STD

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

22R#..RA6#

 6
11131 - SEAT, INTAKE VALVE
11131-35010

22R#..RA6#

STD,STD

 4
11132-35010

22R#..RA6#

O/S 0.03,O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-35010

22R#..RA6#

STD,STD

 4
11136-35010

22R#..RA6#

O/S 0.03,O/S 0.03

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-35050

22REC..RA6#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-35040

22REC..RA6#

 1
11183 - PLUG, SEMICIRCULAR
11183-38010

22R#..RA6#

 2
11183 - PLUG, SEMICIRCULAR
11183-38010

22R#..RA6#

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-35030

22REC..RA6#

 1
11201-39235

22R#..RA6#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

22R#..RA6#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08002

22R#..RA6#

 4
90210-08023

22REC..RA6#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-38010

22R#..RA6#

 1
11213-35010

22R#..RA6#

 1
11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1
11221-35020

22REC..RA6#

 1
11221-35010

22R#..RA6#

 1
11495C - PLUG, PLATE(FOR CYLINDER HEAD)
11495-40010

22REC..RA6#

 1
11495D - GASKET(FOR CYLINDER HEAD)
90923-05011

22REC..RA6#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

22R#..RA6#

 1
12180-70010

22REC..RA6#

 1
12180-13010

22REC..RA6#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

22R#..RA6#

 1
12273 - GASKET, OIL SEPARATOR
12273-35020

22REC..RA6#

 1
12273-38011

22R#..RA6#

 1
12273-35010

22R#..RA6#

 1
Common parts
91611-60816
91611-60822
91611-60825
91651-40825
Linked diagrams
1201
1302
