RA64L-BLPQEK (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)RA6#

Click highlighted areas on diagram

diagram 44601 44608 44610 44610K 44626 44642 44643 44645 44647 44657A 44662 44662B 44662C 44669 44696 44697 44697A 44730 44758 44785 9017908038 9331914008 9411070600
Part # Description Qty Price
44601 - BAND SUB-ASSY, BOOSTER BODY
44605-30030

RA6#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-35100

RA6#

AISIN

 1
44608-22090

RA6#

JKC

 1
44606-32010

RA6#

AISIN

 1
44608-32020

RA6#

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-14680

RA6#

JKC

 1
44610-14700

RA6#

AISIN

 1
44610-14580

RA6#

 1
44610K - BOOSTER KIT, BRAKE
04443-14470

RA6#

JKC

 1
04443-14400

RA6#

JKC

 1
04443-14430

RA6#

AISIN

 1
04443-14390

RA6#

AISIN

 1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010

RA6#

 1
44642 - PISTON, BRAKE BOOSTER
44642-30310

RA6#

JKC

 1
44642-30030

RA6#

AISIN

 1
44642-32030

RA6#

AISIN

 1
44643 - RETAINER, DIAPHRAGM
44643-60010

RA6#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44628-60010

MA61,RA6#

AISIN

 1
44645-22020

RA6#

JKC

 1
44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)
44629-30090

RA6#

 1
44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
96150-01600

RA6#

 1
44662 - RETAINER, REACTION, NO.1
44662-20460

RA6#

 1
44662B - LEVER, REACTION
44661-35100

RA6#

 1
44662C - PLATE, REACTION, NO.1
44607-30300

RA6#

 1
44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER
44669-60010

RA6#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

MA61,RA6#

AISIN

 1
90480-24517

RA6#

JKC

 1
44697 - SCREW, BOOSTER BAND SET
44681-30170

RA6#

 1
44697A - NUT(FOR BOOSTER BAND SET)
44686-30030

RA6#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22090

RA6#

JKC

 1
44730-14050

RA6#

AISIN

 1
44730-14060

RA6#

JKC

 1
44730-20060

MA61,RA6#

AISIN

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-14150

RA6#

 1
44758-22030

RA6#

 1
44785 - GASKET, BRAKE BOOSTER
44785-20030

MA61,RA6#

 1
Common parts
90179-08038
93319-14008
94110-70600

(8108-8308)RA6#

Click highlighted areas on diagram

diagram 44605 44608 44610K 44633 44642 44645 44678 44696 44730 44758 44785 9017908038
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

RA6#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-35100

RA6#

AISIN

 1
44608-22090

RA6#

JKC

 1
44606-32010

RA6#

AISIN

 1
44608-32020

RA6#

JKC

 1
44610K - BOOSTER KIT, BRAKE
04443-14470

RA6#

JKC

 1
04443-14400

RA6#

JKC

 1
04443-14430

RA6#

AISIN

 1
04443-14390

RA6#

AISIN

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

RA6#

 1
44633-22020

RA6#

 1
44642 - PISTON, BRAKE BOOSTER
44642-30310

RA6#

JKC

 1
44642-30030

RA6#

AISIN

 1
44642-32030

RA6#

AISIN

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44628-60010

MA61,RA6#

AISIN

 1
44645-22020

RA6#

JKC

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

RA6#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

MA61,RA6#

AISIN

 1
90480-24517

RA6#

JKC

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22090

RA6#

JKC

 1
44730-14050

RA6#

AISIN

 1
44730-14060

RA6#

JKC

 1
44730-20060

MA61,RA6#

AISIN

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-14150

RA6#

 1
44758-22030

RA6#

 1
44785 - GASKET, BRAKE BOOSTER
44785-20030

MA61,RA6#

 1
Common parts
90179-08038

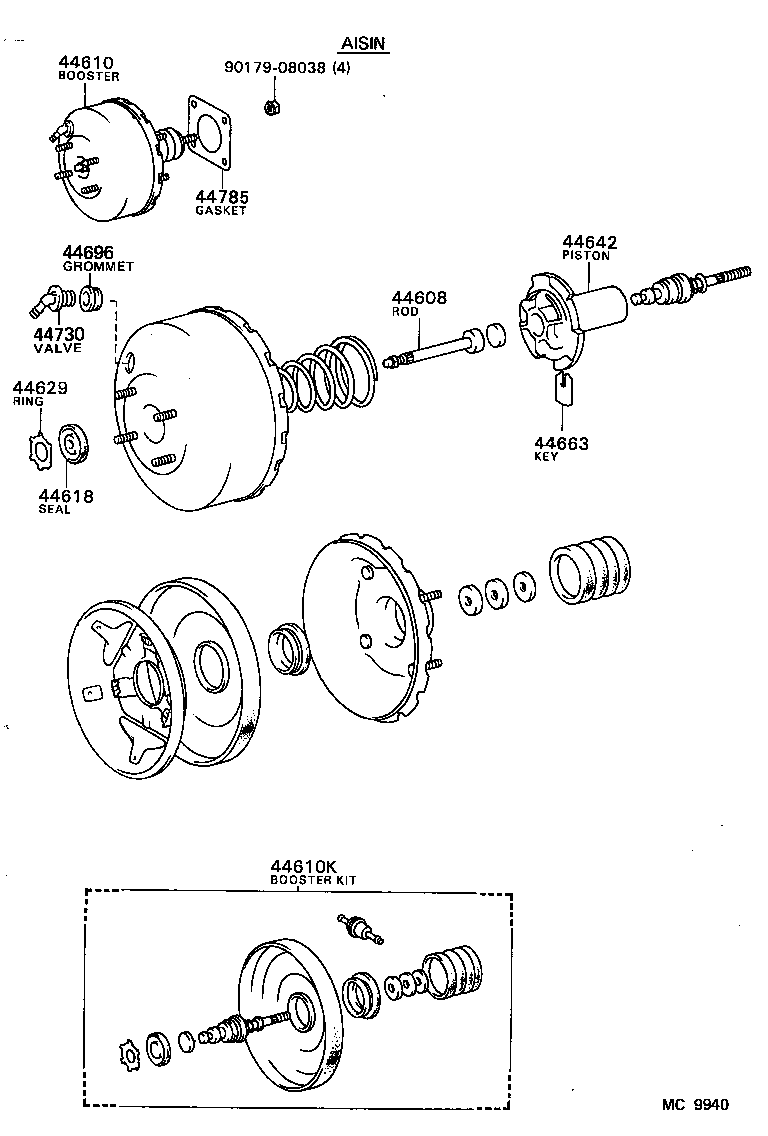

(8308-8507)RA6#

Click highlighted areas on diagram

diagram 44608 44610 44610K 44618 44629 44642 44663 44696 44730 44785 9017908038
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-35100

RA6#

AISIN

 1
44608-22090

RA6#

JKC

 1
44606-32010

RA6#

AISIN

 1
44608-32020

RA6#

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-14680

RA6#

JKC

 1
44610-14700

RA6#

AISIN

 1
44610-14580

RA6#

 1
44610K - BOOSTER KIT, BRAKE
04443-14470

RA6#

JKC

 1
04443-14400

RA6#

JKC

 1
04443-14430

RA6#

AISIN

 1
04443-14390

RA6#

AISIN

 1
44618 - SEAL, BOOSTER BODY
44621-28120

RA6#

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

RA6#

 1
44642 - PISTON, BRAKE BOOSTER
44642-30310

RA6#

JKC

 1
44642-30030

RA6#

AISIN

 1
44642-32030

RA6#

AISIN

 1
44663 - KEY, VALVE STOPPER
44635-28120

RA6#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

MA61,RA6#

AISIN

 1
90480-24517

RA6#

JKC

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22090

RA6#

JKC

 1
44730-14050

RA6#

AISIN

 1
44730-14060

RA6#

JKC

 1
44730-20060

MA61,RA6#

AISIN

 1
44785 - GASKET, BRAKE BOOSTER
44785-20030

MA61,RA6#

 1
Common parts
90179-08038

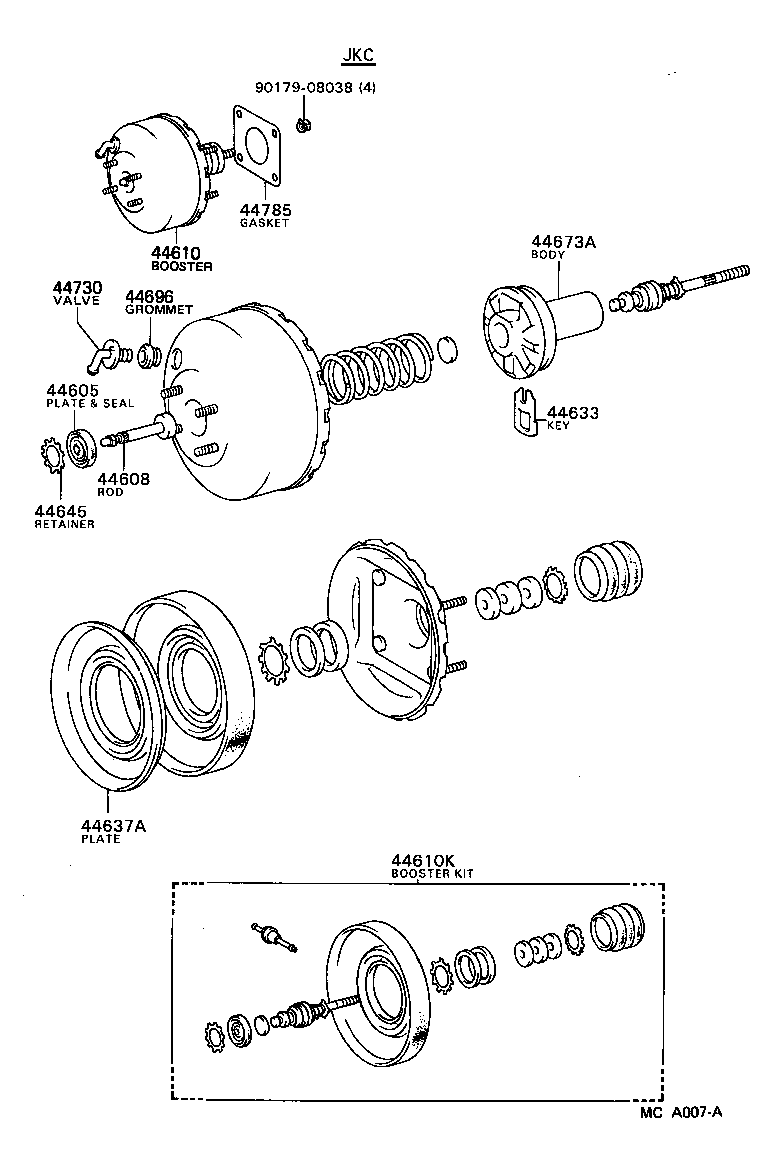

(8308-8507)RA6#

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44637A 44645 44673A 44696 44730 44785 9017908038
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

RA6#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-35100

RA6#

AISIN

 1
44608-22090

RA6#

JKC

 1
44606-32010

RA6#

AISIN

 1
44608-32020

RA6#

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-14680

RA6#

JKC

 1
44610-14700

RA6#

AISIN

 1
44610-14580

RA6#

 1
44610K - BOOSTER KIT, BRAKE
04443-14470

RA6#

JKC

 1
04443-14400

RA6#

JKC

 1
04443-14430

RA6#

AISIN

 1
04443-14390

RA6#

AISIN

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

RA6#

 1
44633-22020

RA6#

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

RA6#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44628-60010

MA61,RA6#

AISIN

 1
44645-22020

RA6#

JKC

 1
44673A - BODY, BOOSTER VALVE
44673-32040

RA6#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

MA61,RA6#

AISIN

 1
90480-24517

RA6#

JKC

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22090

RA6#

JKC

 1
44730-14050

RA6#

AISIN

 1
44730-14060

RA6#

JKC

 1
44730-20060

MA61,RA6#

AISIN

 1
44785 - GASKET, BRAKE BOOSTER
44785-20030

MA61,RA6#

 1
Common parts
90179-08038
