RA64L-BLPQEA (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

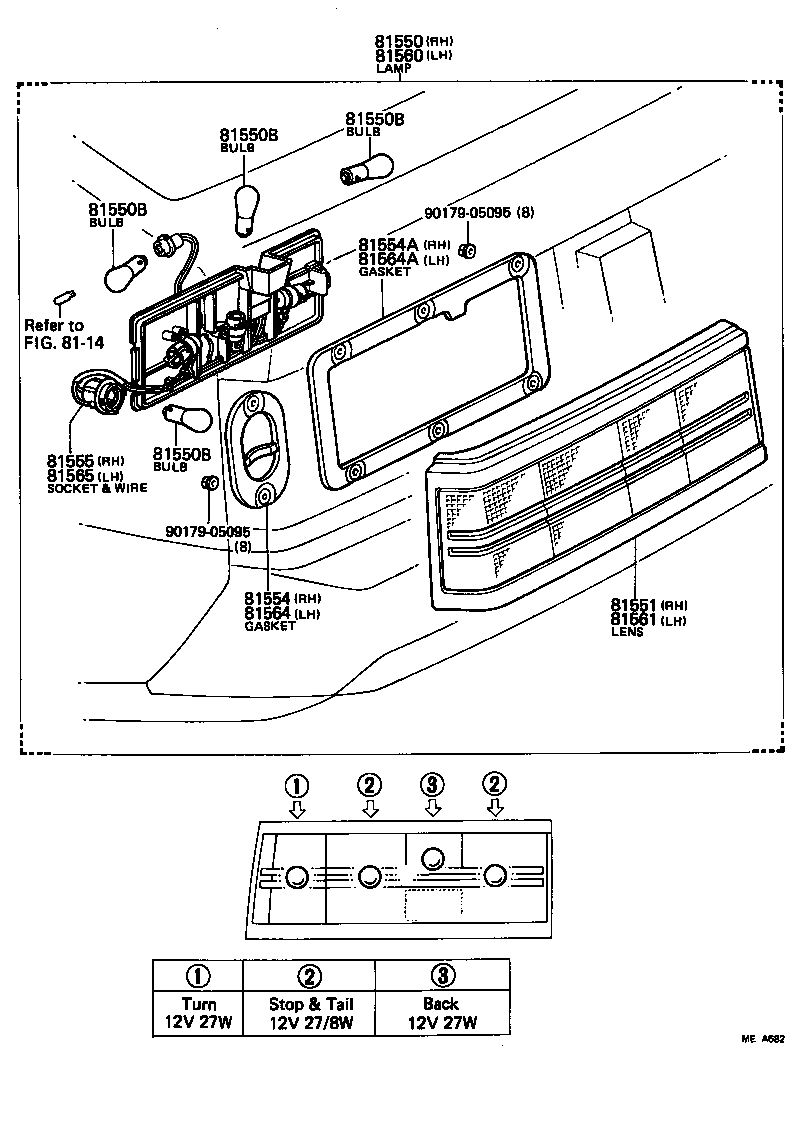

(8108-8308)RA6#..LB

Click highlighted areas on diagram

diagram 8114 81550 81550B 81550B 81550B 81550B 81551 81554 81554A 81555 81560 81561 81564 81564A 81565 9017905095 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80104

RA64..LB

 1
81550-80191

RA6#..LB

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-14502

RA6#..LB

 1
81551-14500

RA64..LB

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-14480

RA6#..LB

 1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81552-14480

RA6#..LB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-14500

RA64..LB

 1
81555-14501

RA6#..LB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80108

RA64..LB

 1
81560-80196

RA6#..LB

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-14500

RA64..LB

 1
81561-14502

RA6#..LB

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-14480

RA6#..LB

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81552-14480

RA6#..LB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-14500

RA64..LB

 1
81565-14501

RA6#..LB

 1
Common parts
90179-05095
Linked diagrams
8114

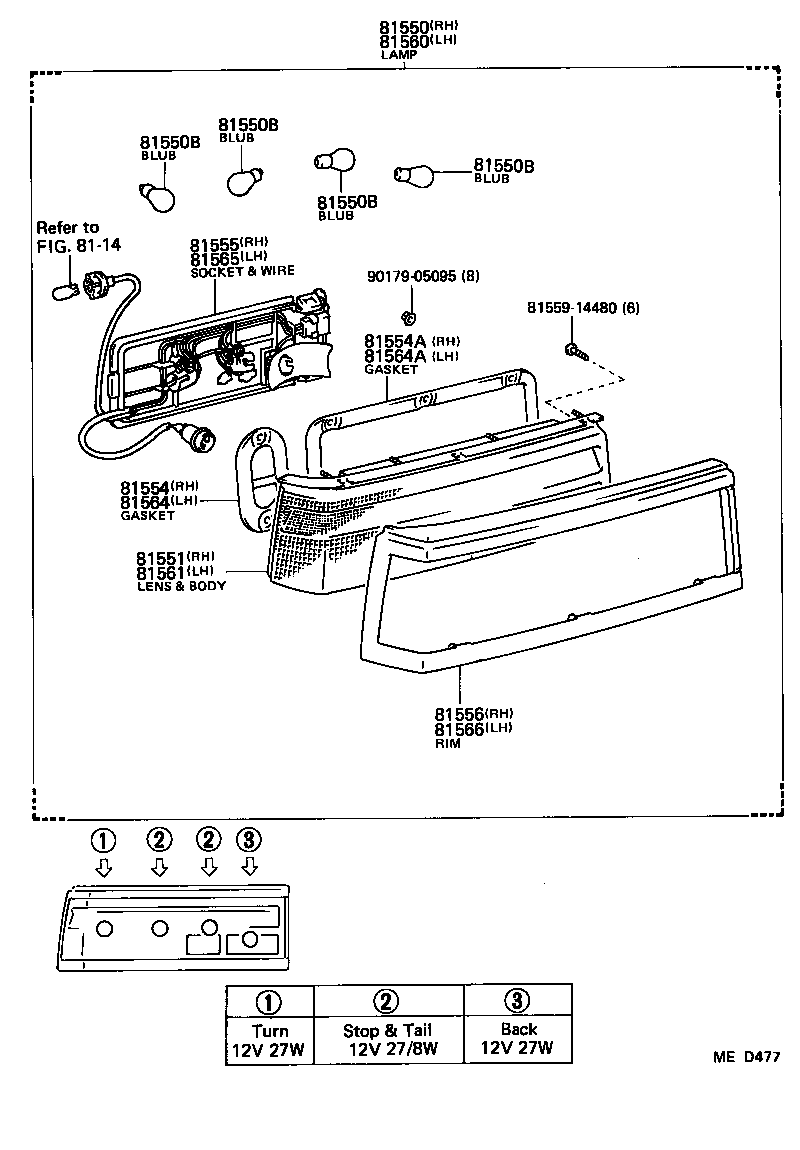

(8308-8507)RA6#..LB

Click highlighted areas on diagram

diagram 8114 81550 81550B 81550B 81550B 81550B 81551 81554 81554A 81555 81556 8155914480 81560 81561 81564 81564A 81565 81566 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80104

RA64..LB

 1
81550-80191

RA6#..LB

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-14502

RA6#..LB

 1
81551-14500

RA64..LB

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-14480

RA6#..LB

 1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81552-14480

RA6#..LB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-14500

RA64..LB

 1
81555-14501

RA6#..LB

 1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-14480

RA6#..LB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80108

RA64..LB

 1
81560-80196

RA6#..LB

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-14500

RA64..LB

 1
81561-14502

RA6#..LB

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-14480

RA6#..LB

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81552-14480

RA6#..LB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-14500

RA64..LB

 1
81565-14501

RA6#..LB

 1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-14480

RA6#..LB

 1
Common parts
81559-14480
90179-05095
Linked diagrams
8114
