RA64L-BLMSSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )5F

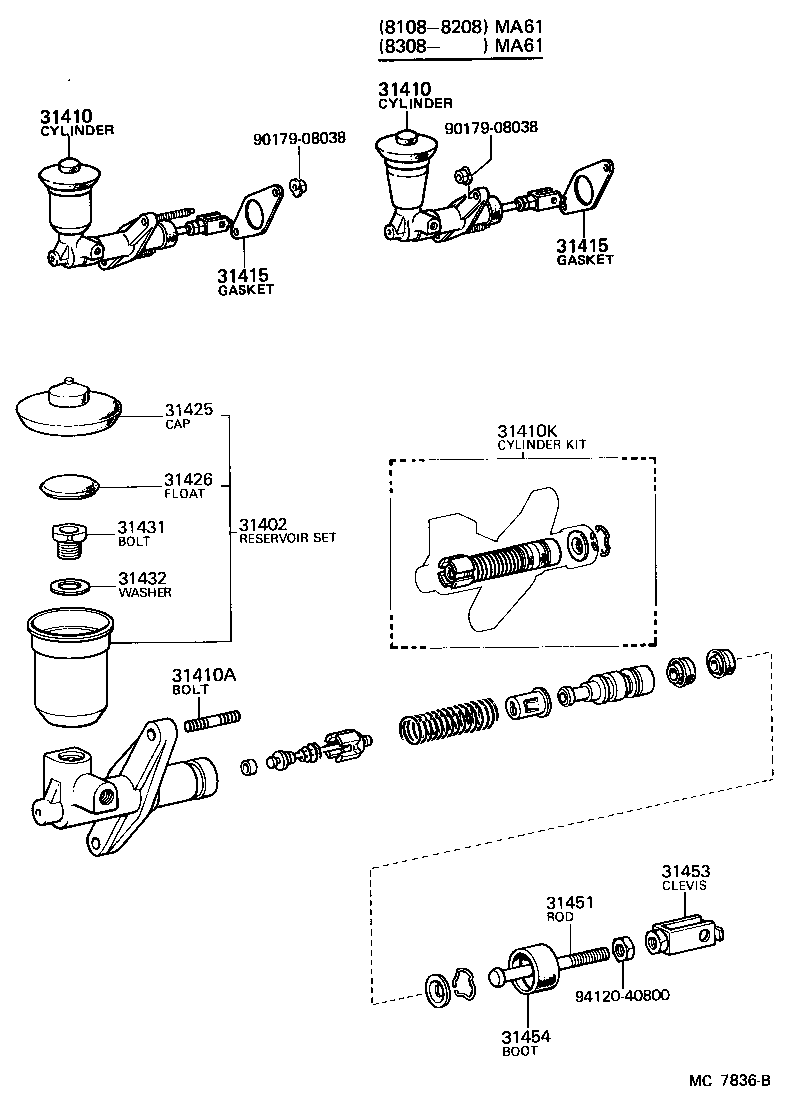

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-30030 |
RA64..5F..CBR |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-14131 |
RA64..5F..CBR |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-14131 |
RA64..5F..CBR |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90116-08146 |
RA64..5F |
2 | ||
| 31410K - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12020 |
RA64..5F..CBR |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-30030 |
MA61,RA6#..5F |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-30030 |
MA61,RA6#..5F |
1 | ||
| 31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
MA61,RA6#..5F |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
MA61,RA6#..5F |
1 | ||
| 31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
MA61,RA6#..5F |
1 | ||
| 31432 - WASHER, CLUTCH RESERVOIR SET BOLT | ||||
| 47232-30010 |
MA61,RA6#..5F |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-20050 |
MA61,RA6#..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-22010 |
MA61,RA6#..5F |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
MA61,RA6#..5F |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 94120-40800 | ||||
