RA64L-BLMQSK (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)5F..CBR

Click highlighted areas on diagram

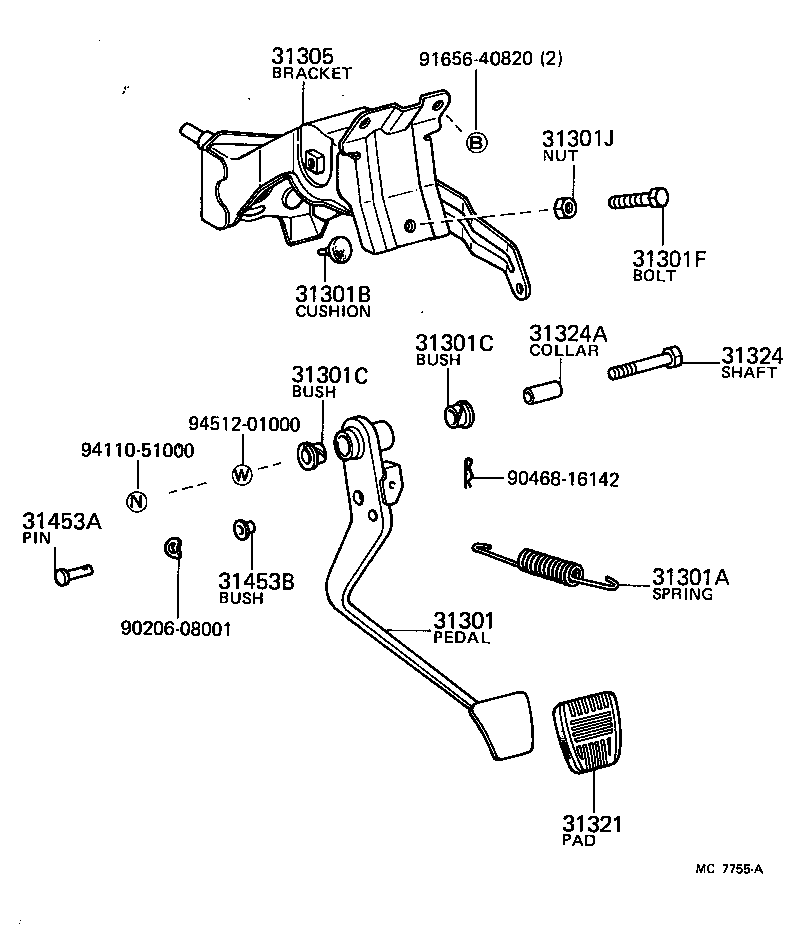

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31305 31321 31324 31324A 31453A 31453B 9020608001 9046816142 9165640820 9411051000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-14060

RA64..5F..CBR

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14002

RA64..5F..CBR

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

RA64..5F..CBR

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

MA61,RA6#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

MA61,RA6#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

RA64..5F..CBR

 1
90101-10109

MA61,RA64..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-41000

RA64..5F..CBR

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-14080

RA64..5F..CBR

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

MA61,RA6#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

MA61,RA6#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

MA61,RA6#..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

MA61,RA6#..5F

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08010

MA61,RA6#..5F

 1
Common parts
90206-08001
90468-16142
91656-40820
94110-51000
94512-01000

(8108- )5F

Click highlighted areas on diagram

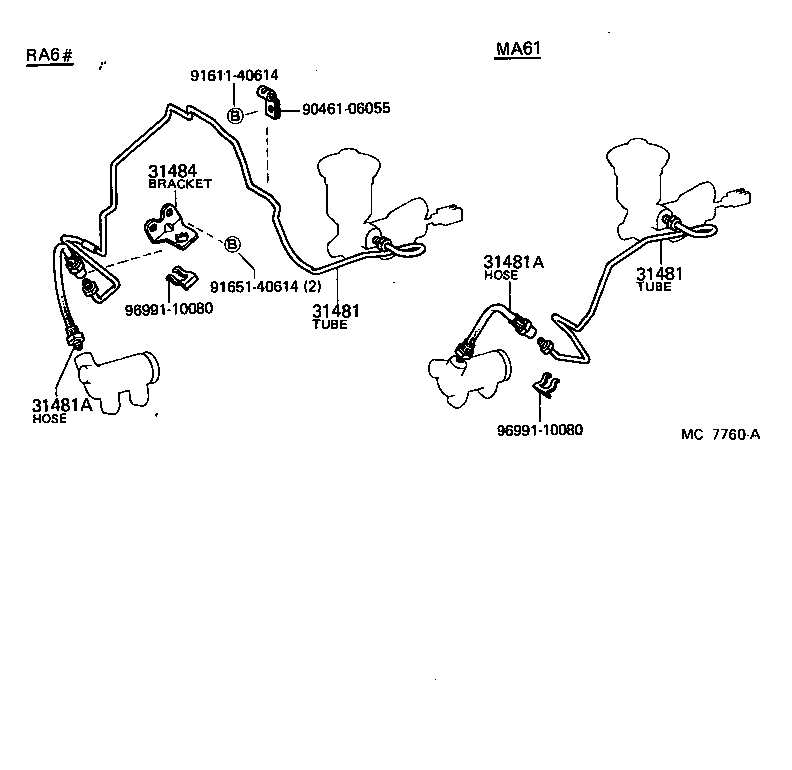

diagram 31481 31481 31481A 31481A 31484 9046106055 9161140614 9165140614 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14100

RA6#..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14100

RA6#..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-02363

RA6#..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-02363

RA6#..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-14050

RA6#..5F

 1
Common parts
90461-06055
91611-40614
91651-40614
96991-10080
