RA64L-BCPSSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8208)22R

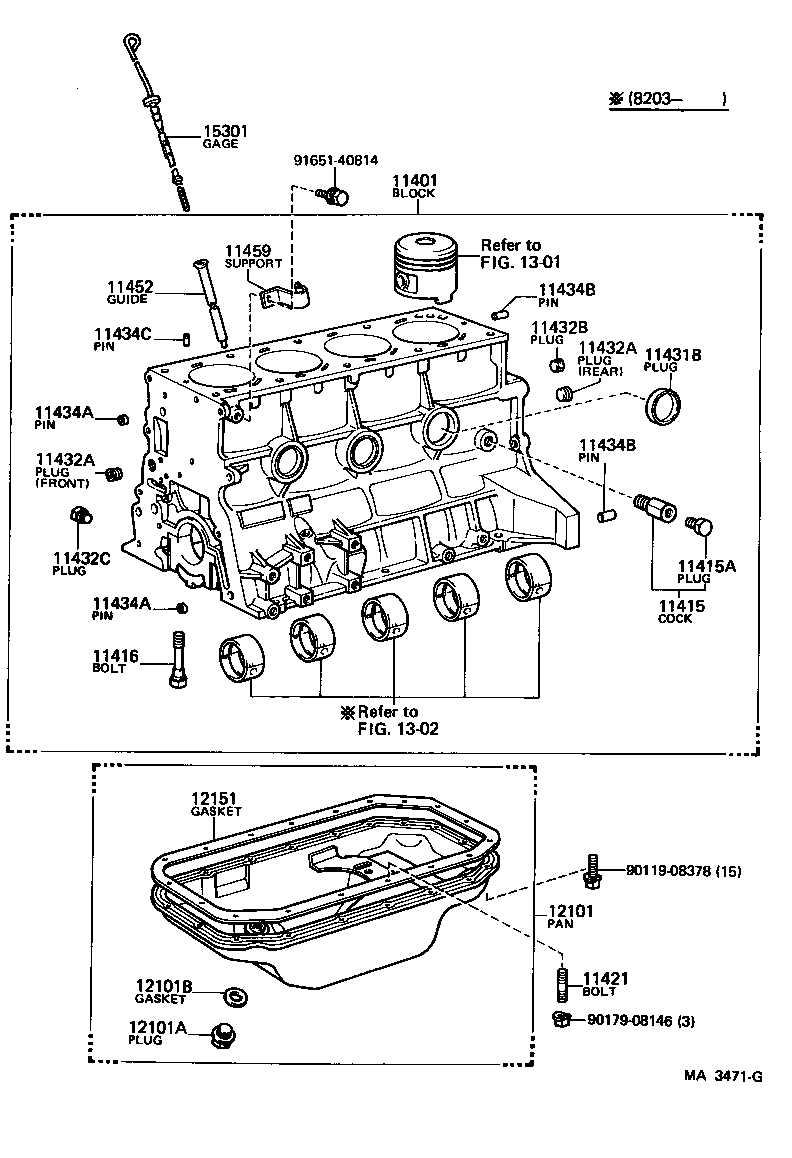

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-39366 |
22R..RA64 |
1 | ||
| 11401-39365 |
22R..RA64 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
22R..RA64 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
22R..RA64 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02042 |
22R#..RA6# *12-1.25PX75-25 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 92122-40814 |
22R#..RA6# L=26,S=12&12 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
22R#..RA6# OD=40 |
6 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53008 |
22R#..RA6# FR |
1 | ||
| 90344-53002 |
22R#..RA6# RR |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53008 |
22R#..RA6# FR |
1 | ||
| 90344-53002 |
22R#..RA6# RR |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-52013 |
22R#..RA6# |
1 | ||
| 11432C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90345-51025 |
22R#..RA6# |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11021 |
22R#..RA6# L=8,OD=11 |
4 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11021 |
22R#..RA6# L=8,OD=11 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
22R#..RA6# L=22,OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
22R#..RA6# L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
22R#..RA6# L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-38020 |
22R#..RA6# |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-38020 |
22R#..RA6# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-39325 |
22R#..RA6# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
22R#..RA6# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
22R#..RA6# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-38010 |
22R#..RA6# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-35010 |
22R#..RA6# |
1 | ||
| Common parts | ||||
| 90119-08378 | ||||
| 90179-08146 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
