RA64L-BCPSEA (1982)

Toyota Celica

Production Oct 1982 - Jul 1985
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8507)22REC

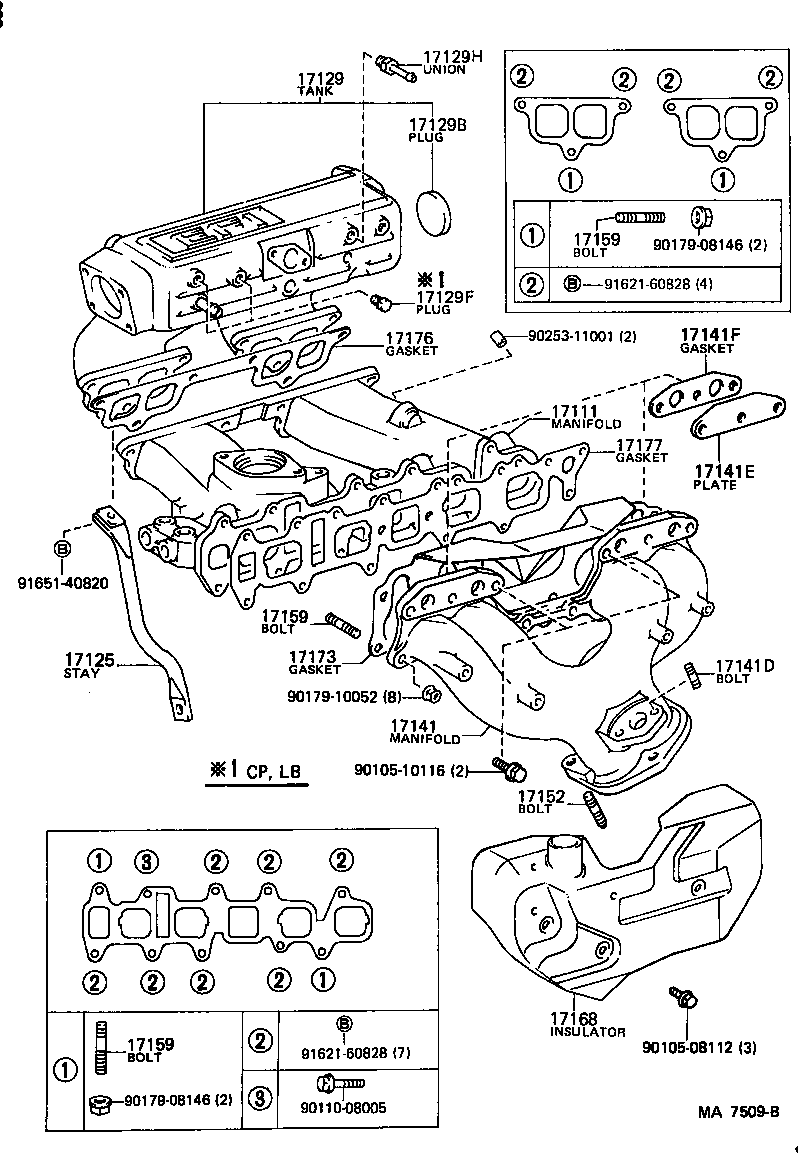

Click highlighted areas on diagram

diagram 17111 17125 17129 17129B 17129F 17129H 17141 17141D 17141E 17141F 17152 17159 17159 17159 17168 17173 17176 17177 9010508112 9010510116 9011008005 9017908146 9017908146 9017910052 9025311001 9162160828 9162160828 9165140820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-35011

22REC..RA6#

 1
17101-35012

22REC..RA6#

 1
17111-35012

22R..RA64

 1
17101-35013

22REC..RA6#

 1
17125 - STAY, SURGE TANK, NO.1
17125-35040

22REC..RA6#

 1
17141 - MANIFOLD, EXHAUST
17141-35010

22R..RA64..USA

 1
17141-35080

22REC..RA6#

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

22R..RA64..USA

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-35030

22REC..RA6#

 2
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
17378-35010

22REC..RA6#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

22R#..RA6#

 3
90116-10058

22R#..RA6#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35090

22REC..RA6#

 1
17168-35010

22R..RA64..USA

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35060

22REC..RA6#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35011

22R..RA64

 1
17177-35030

22REC..RA6#

 1
17177-35021

22R#..RA6#

 1
Common parts
90105-08112
90105-10116
90110-08005
90179-08146
90179-10052
90253-11001
91621-60828
91651-40820
