RA64L-BCPQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8507)RA6#

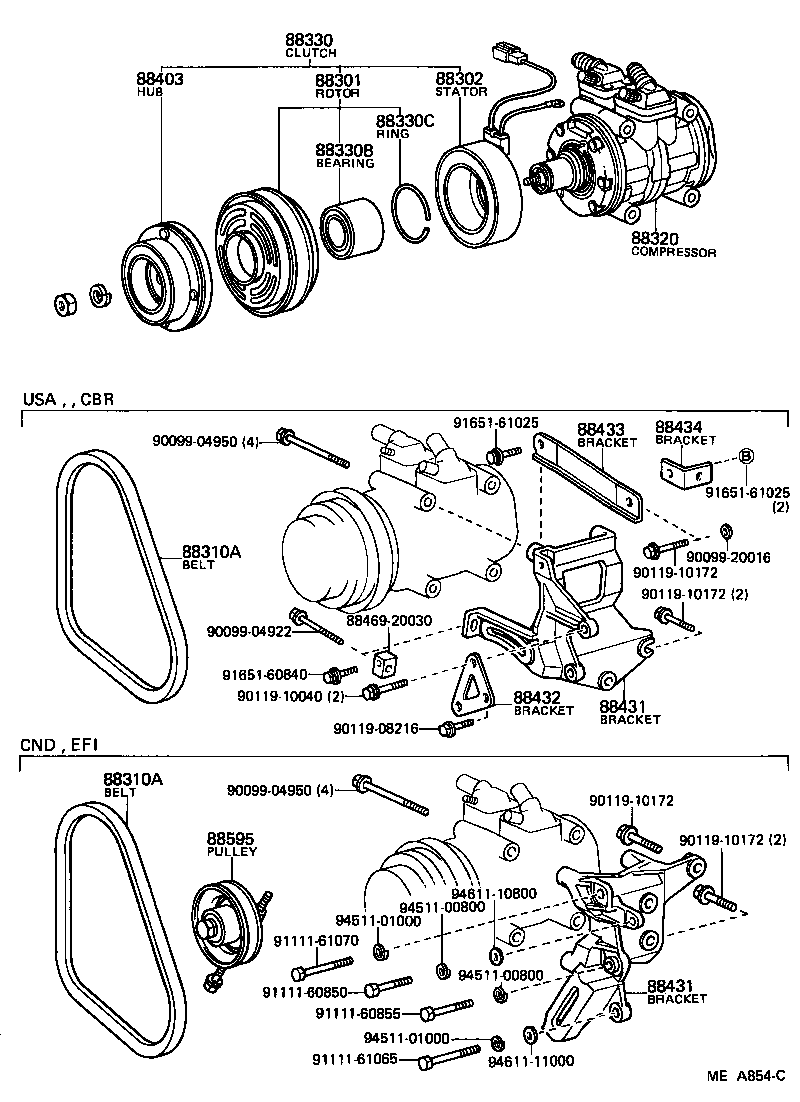

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14020 |
RA6# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
MA61,RA6# |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-11120 |
RA64..CBR..USA |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-11120 |
RA64..CBR..USA |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14350 |
RA64..CBR..USA 10P15C |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14100 |
RA6# |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
MA61,RA6# |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
MA61,RA6# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
MA61,RA6# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-14130 |
RA64..CBR..USA |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-14130 |
RA64..CBR..USA |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 11324-38011 |
RA64..CBR..USA |
1 | ||
| 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 88434-20150 |
RA64..CBR..USA |
1 | ||
| 88434 - BRACKET, COMPRESSOR MOUNTING, NO.4 | ||||
| 88434-14030 |
RA64..CBR..USA |
1 | ||
| Common parts | ||||
| 88469-20030 | ||||
| 90099-04922 | ||||
| 90099-04950 | ||||
| 90099-20016 | ||||
| 90119-08216 | ||||
| 90119-10040 | ||||
| 90119-10172 | ||||
| 91111-60850 | ||||
| 91111-60855 | ||||
| 91111-61065 | ||||
| 91111-61070 | ||||
| 91651-60840 | ||||
| 91651-61025 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94611-10800 | ||||
| 94611-11000 | ||||
(8108- )

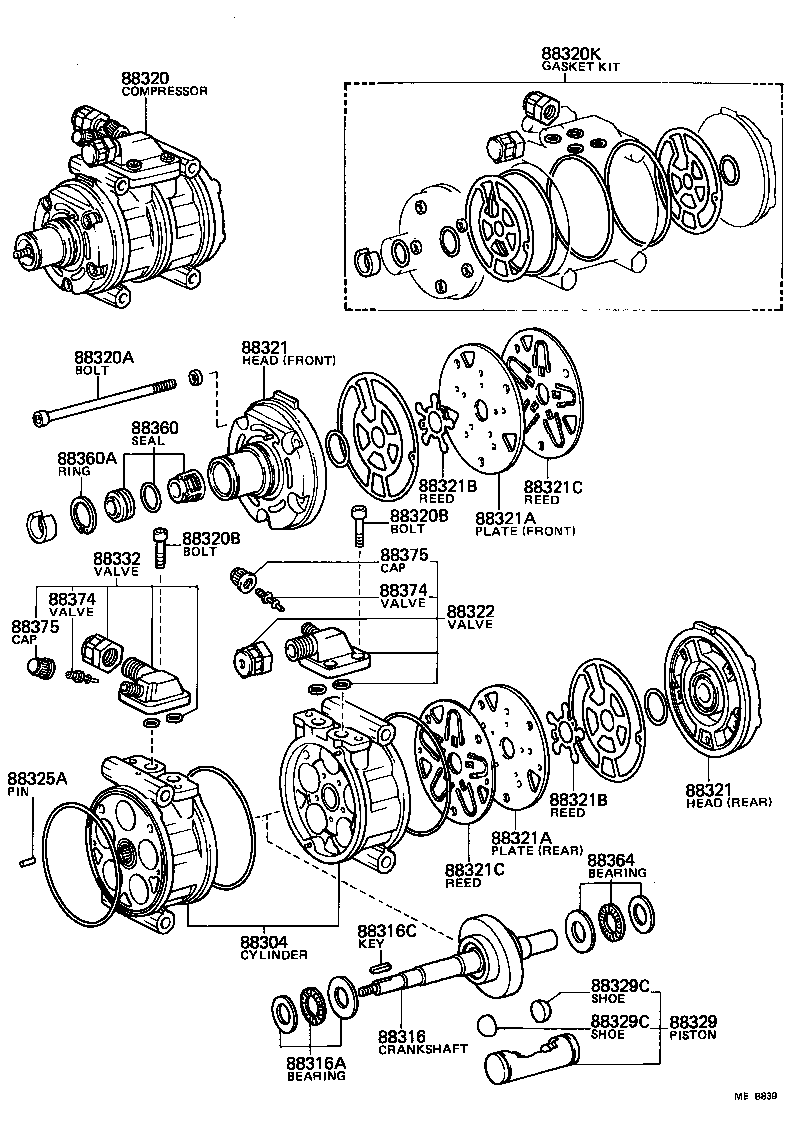

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14020 |
MA61,RA6# |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14010 |
MA61,RA6# |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
MA61,RA6# |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
MA61,RA6# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14350 |
RA64..CBR..USA 10P15C |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
MA61,RA6# |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
MA61,RA6# |
4 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
MA61,RA6# |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-14040 |
MA61,RA6# |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14010 |
MA61,RA6# FR |
1 | ||
| 88322-14010 |
MA61,RA6# RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14010 |
MA61,RA6# FR |
1 | ||
| 88322-14010 |
MA61,RA6# RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
MA61,RA6# FR |
1 | ||
| 88342-14010 |
MA61,RA6# RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
MA61,RA6# FR |
1 | ||
| 88342-14010 |
MA61,RA6# RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14010 |
MA61,RA6# |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14010 |
MA61,RA6# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14010 |
MA61,RA6# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14010 |
MA61,RA6# |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-14220 |
RA64..CBR..USA |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
MA61,RA6# |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-14020 |
MA61,RA6# |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
MA61,RA6# |
10 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
MA61,RA6# |
10 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-14130 |
RA64..CBR..USA |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-30280 |
MA61,RA6# |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
MA61,RA6# |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
MA61,RA6# |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA61,RA6# |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA61,RA6# |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
MA61,RA6# |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
MA61,RA6# |
2 | ||
