RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA6#

Click highlighted areas on diagram

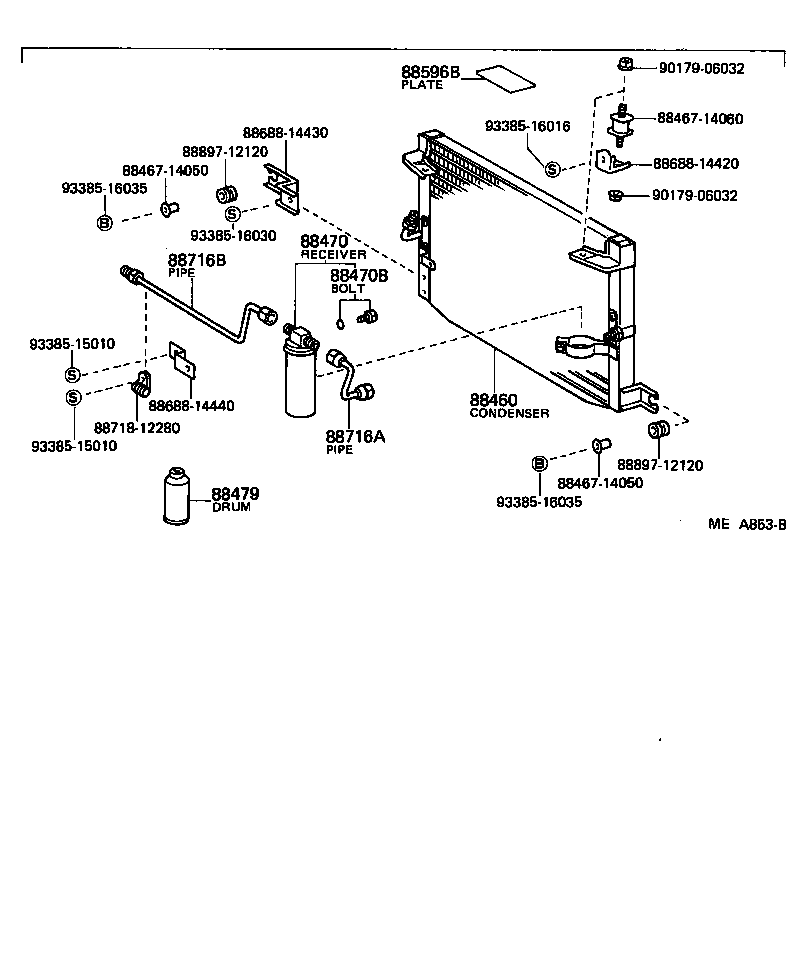

diagram 88460 8846714050 8846714050 8846714060 88470 88470B 88479 88596B 8868814420 8868814430 8868814440 88716A 88716B 8871812280 8889712120 8889712120 9017906032 9017906032 9338515010 9338515010 9338516016 9338516030 9338516035 9338516035
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-14210

RA6#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

MA61;RA6#..USA

 1
88470B - BOLT, FUSE
90099-04579

MA61,RA6#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

MA61,RA6#

400G

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-14730

RA6#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-14850

RA6#..USA

 1
Common parts
88467-14050
88467-14060
88688-14420
88688-14430
88688-14440
88718-12280
88897-12120
90179-06032
93385-15010
93385-16016
93385-16030
93385-16035

(8108- )

Click highlighted areas on diagram

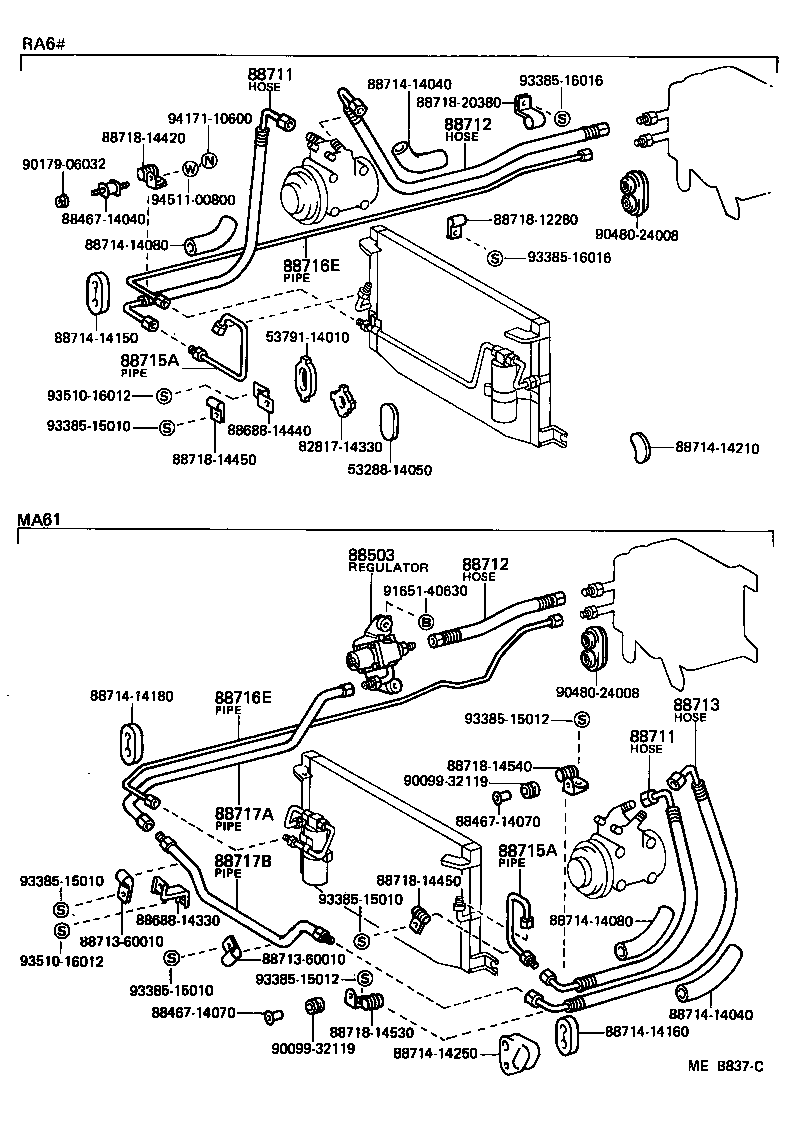

diagram 5328814050 5379114010 8281714330 8846714040 8846714070 8846714070 88503 8868814330 8868814440 88711 88711 88712 88712 88713 8871360010 8871360010 8871414040 8871414040 8871414080 8871414080 8871414150 8871414160 8871414180 8871414210 8871414250 88715A 88715A 88716E 88716E 88717A 88717B 8871812280 8871814420 8871814450 8871814450 8871814530 8871814540 8871820380 9009932119 9009932119 9017906032 9048024008 9048024008 9165140630 9338515010 9338515010 9338515010 9338515010 9338515012 9338515012 9338516016 9338516016 9351016012 9351016012 9417110600 9451100800
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14440

RA6#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14440

RA6#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14680

RA64..CBR..USA

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14680

RA64..CBR..USA

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14130

RA6#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14130

RA6#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14770

RA6#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14770

RA6#

 1
Common parts
53288-14050
53791-14010
82817-14330
88467-14040
88467-14070
88688-14330
88688-14440
88713-60010
88714-14040
88714-14080
88714-14150
88714-14160
88714-14180
88714-14210
88714-14250
88718-12280
88718-14420
88718-14450
88718-14530
88718-14540
88718-20380
90099-32119
90179-06032
90480-24008
91651-40630
93385-15010
93385-15012
93385-16016
93510-16012
94171-10600
94511-00800
