RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)CBR

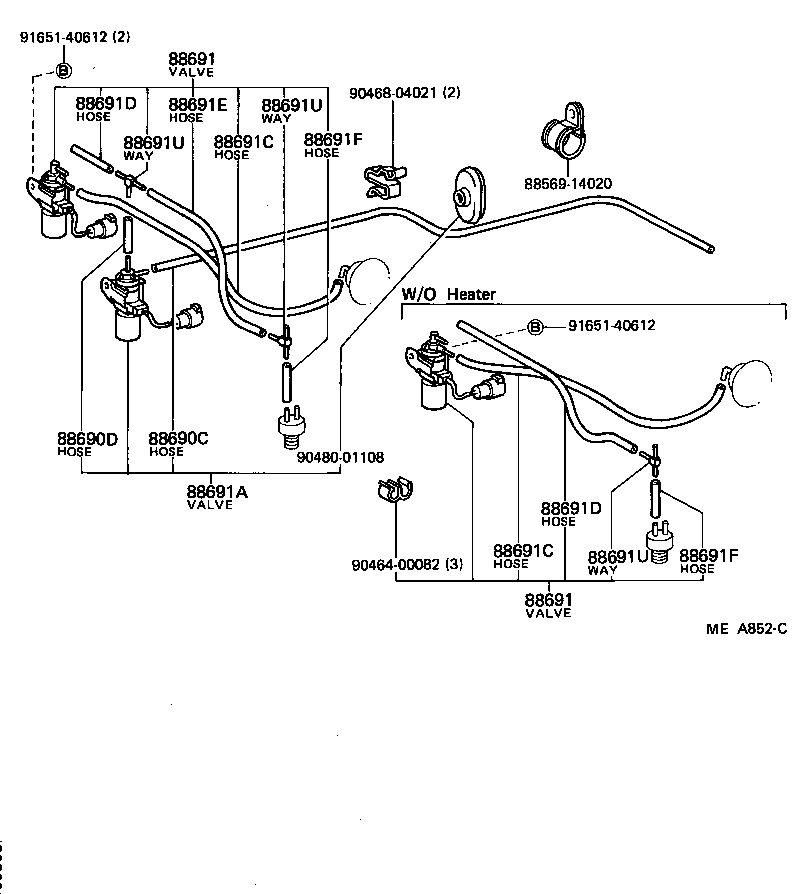

Click highlighted areas on diagram

diagram 8856914020 88690C 88690D 88691 88691 88691A 88691C 88691C 88691D 88691D 88691E 88691F 88691F 88691U 88691U 88691U 9046400082 9046804021 9048001108 9165140612 9165140612
Part # Description Qty Price
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
95411-19995

RA64..CBR..USA

*H,L=950,MARK=#*

 1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
95411-10030

RA64..CBR..USA

*H,L=60,MARK=#0

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14590

RA64..CBR..USA

W/BOOST VENTILATOR

 1
88690-14570

RA64..CBR..USA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14590

RA64..CBR..USA

W/BOOST VENTILATOR

 1
88690-14570

RA64..CBR..USA

 1
88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE)
88690-14580

RA64..CBR..USA

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10160

RA64..CBR..USA

*H,L=360,MARK=#1

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10160

RA64..CBR..USA

*H,L=360,MARK=#1

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-10030

RA64..CBR..USA

*H,L=120,MARK=#0

 1
95411-10060

RA64..CBR..USA

*H,L=360,MARK=#0,W/BOOST VENTILATOR

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-10030

RA64..CBR..USA

*H,L=120,MARK=#0

 1
95411-10060

RA64..CBR..USA

*H,L=360,MARK=#0,W/BOOST VENTILATOR

 1
88691E - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.3
95411-10030

RA64..CBR..USA

*H,L=260,MARK=#0

 1
88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4
95411-10030

RA64..CBR..USA

*H,L=50,MARK=#0

 1
88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4
95411-10030

RA64..CBR..USA

*H,L=50,MARK=#0

 1
88691U - WAY(FOR VACUUM HOSE)
90413-04005

MA61;RA64..CBR..USA

3-WAY

 2
88691U - WAY(FOR VACUUM HOSE)
90413-04005

MA61;RA64..CBR..USA

3-WAY

 2
88691U - WAY(FOR VACUUM HOSE)
90413-04005

MA61;RA64..CBR..USA

3-WAY

 2
Common parts
88569-14020
90464-00082
90468-04021
90480-01108
91651-40612
