RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA6#

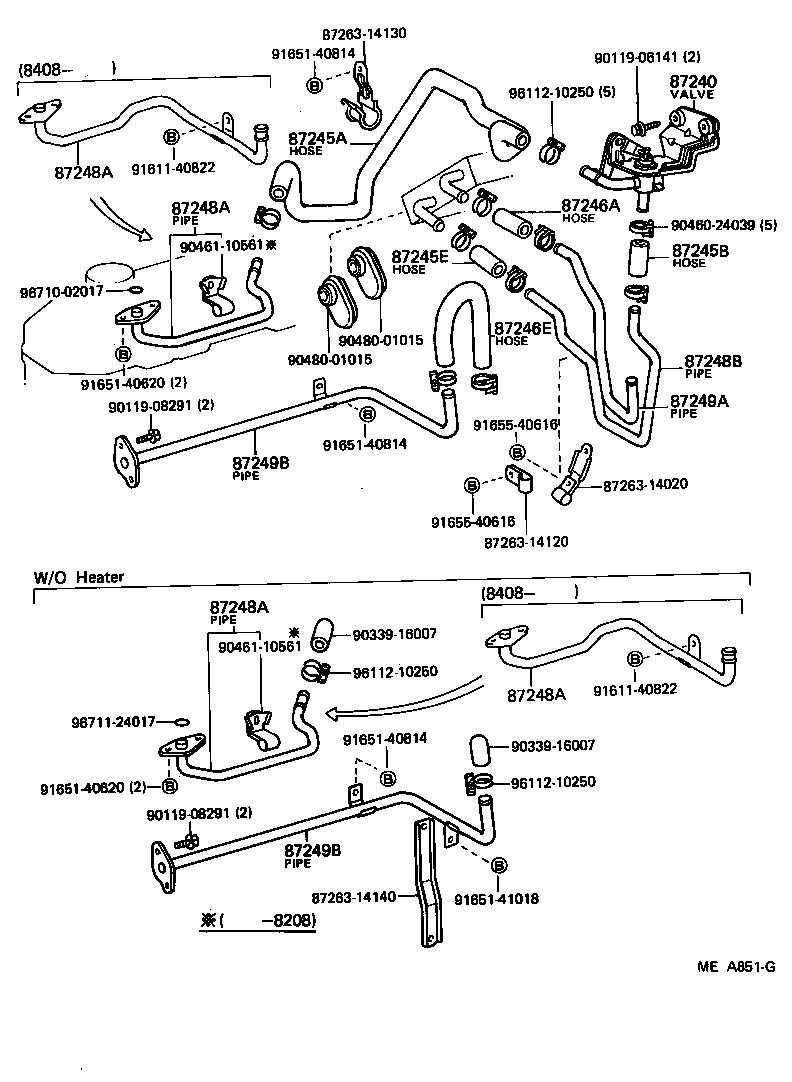

Click highlighted areas on diagram

diagram 87240 87245A 87245B 87245E 87246A 87246E 87248A 87248A 87248A 87248A 87248B 87249A 87249B 87249B 8726314020 8726314120 8726314130 8726314140 9011906141 9011908291 9011908291 9033916007 9033916007 9046024039 9046110561 9046110561 9048001015 9048001015 9161140822 9161140822 9165140620 9165140620 9165140814 9165140814 9165140814 9165141018 9165540616 9165540616 9611210250 9611210250 9611210250 9671002017 9671124017
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-14120

RA6#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1B010

RA64

 1
87245B - HOSE, HEATER WATER, INLET B
99552-30100

RA6#

*H,L=55

 1
87245E - HOSE, HEATER WATER, INLET E
99552-30100

RA64..CBR

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30100

RA6#

*H,L=55

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-14880

RA64..CBR

 1
87248A - PIPE, HEATER WATER INLET, A
87208-14090

RA64

 1
87248A - PIPE, HEATER WATER INLET, A
87208-14090

RA64

 1
87248A - PIPE, HEATER WATER INLET, A
87208-14090

RA64

 1
87248A - PIPE, HEATER WATER INLET, A
87208-14090

RA64

 1
87248B - PIPE, HEATER WATER INLET, B
87248-14210

RA64..CBR

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14200

RA64..CBR

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-20062

RA6#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-20062

RA6#

 1
Common parts
87263-14020
87263-14120
87263-14130
87263-14140
90119-06141
90119-08291
90339-16007
90460-24039
90461-10561
90480-01015
91611-40822
91651-40620
91651-40814
91651-41018
91655-40616
96112-10250
96710-02017
96711-24017
