RA64L-BCPQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

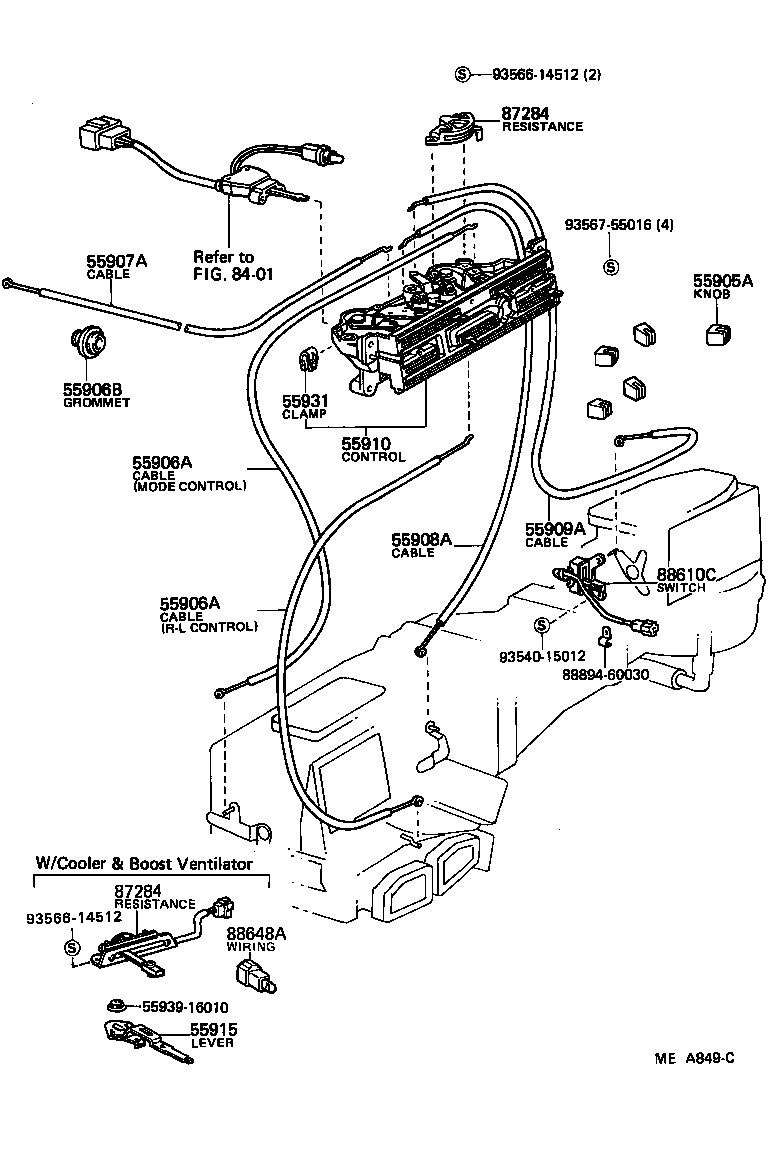

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12060 |
MA61,RA6# |
5 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-14170 |
MA61,RA6# L=585 |
1 | ||
| 55906-14140 |
MA61,RA6# L=470 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-14170 |
MA61,RA6# L=585 |
1 | ||
| 55906-14140 |
MA61,RA6# L=470 |
1 | ||
| 55906B - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-13009 |
RA6# |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-14230 |
RA6# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-14110 |
MA61,RA6# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-14060 |
RA6# |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-14320 |
RA6# |
1 | ||
| 55910-14350 |
RA6#..(CP,LB)..USA W/BOOST VENTILATOR |
1 | ||
| 55910-14360 |
RA6#..(CP,LB)..USA W/COOLER & BOOST VENTILATOR |
1 | ||
| 55915 - LEVER, COOLER CONTROL | ||||
| 55917-14140 |
RA64..CBR..USA W/COOLER & BOOST VENTILATOR |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-24010 |
MA61,RA6# |
5 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-14060 |
RA6#..USA |
1 | ||
| 88032-14090 |
RA6#..(CP,LB)..USA W/COOLER & BOOST VENTILATOR |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-14060 |
RA6#..USA |
1 | ||
| 88032-14090 |
RA6#..(CP,LB)..USA W/COOLER & BOOST VENTILATOR |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-14090 |
RA64..CBR..USA MICRO SWITCH |
1 | ||
| Common parts | ||||
| 55939-16010 | ||||
| 88894-60030 | ||||
| 93540-15012 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

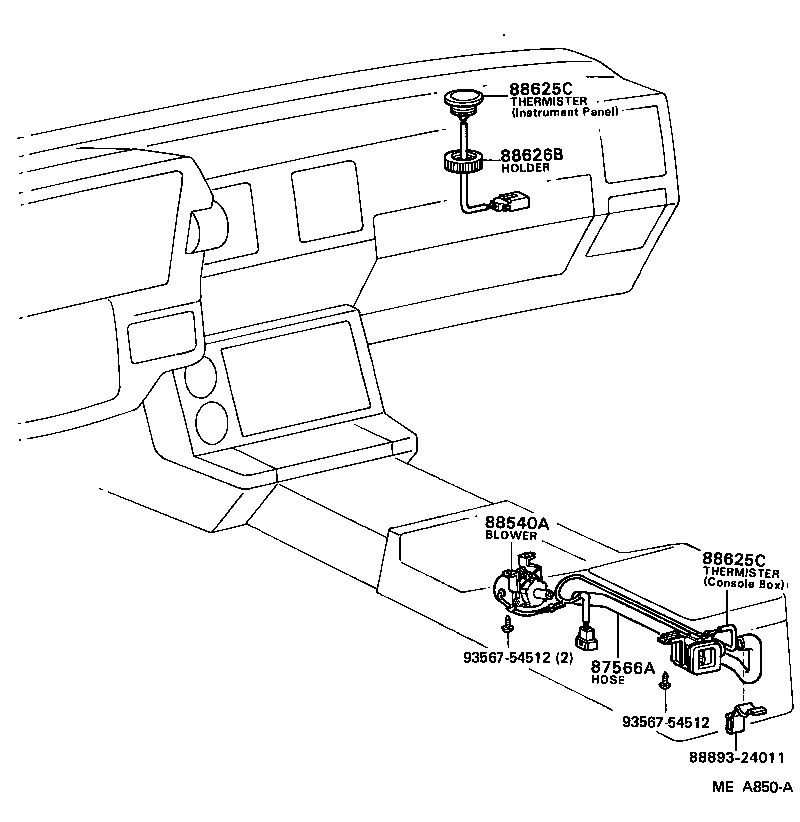

(8108- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88893-24011 | ||||
| 93567-54512 | ||||

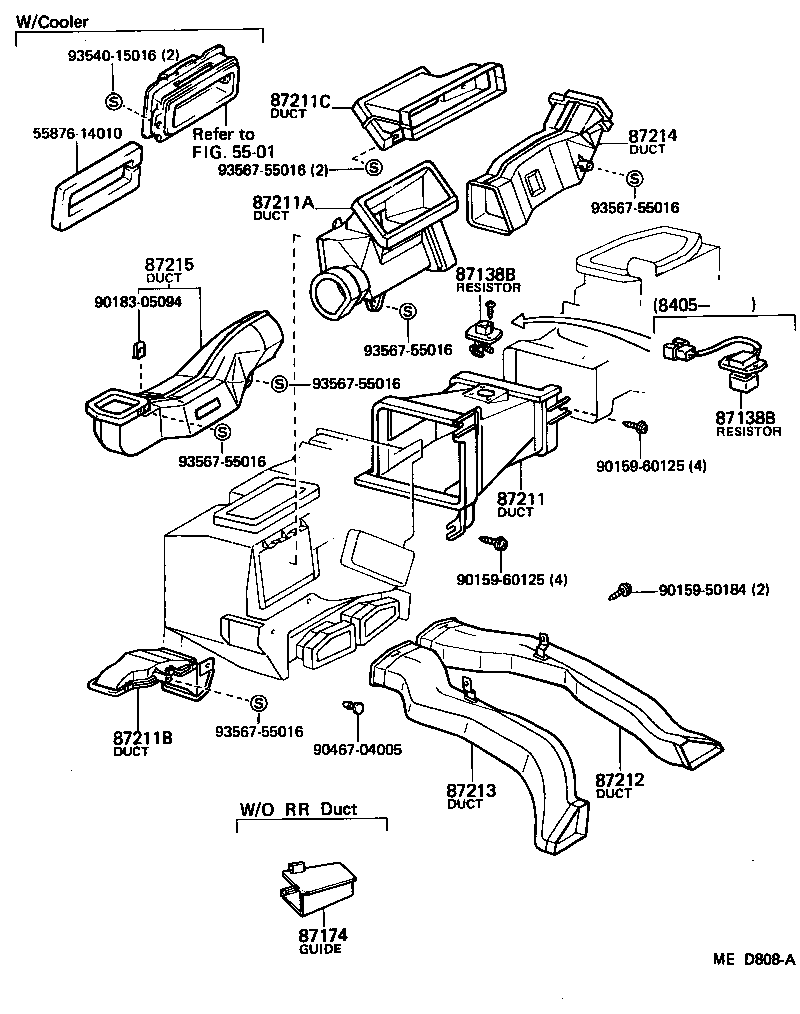

(8108- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-14060 |
RA6#..CP,LB |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-14060 |
RA6#..CP,LB |
1 | ||
| 87174 - GUIDE, AIR DUCT | ||||
| 87174-14040 |
RA6#..(CP,LB)..USA |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-14150 |
RA64 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-14130 |
MA61,RA6# |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87201-14140 |
MA61,RA6# |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 55086-14100 |
MA61,RA6# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-24010 |
MA61,RA6# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-24010 |
MA61,RA6# |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55087-14100 |
RA6# |
1 | ||
| 55087-14080 |
MA61;RA6#..USA W/COOLER |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55085-14090 |
RA6# |
1 | ||
| 55085-14100 |
MA61;RA6#..USA W/COOLER |
1 | ||
| Common parts | ||||
| 55876-14010 | ||||
| 90159-50184 | ||||
| 90159-60125 | ||||
| 90183-05094 | ||||
| 90467-04005 | ||||
| 93540-15016 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||
