RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA6#

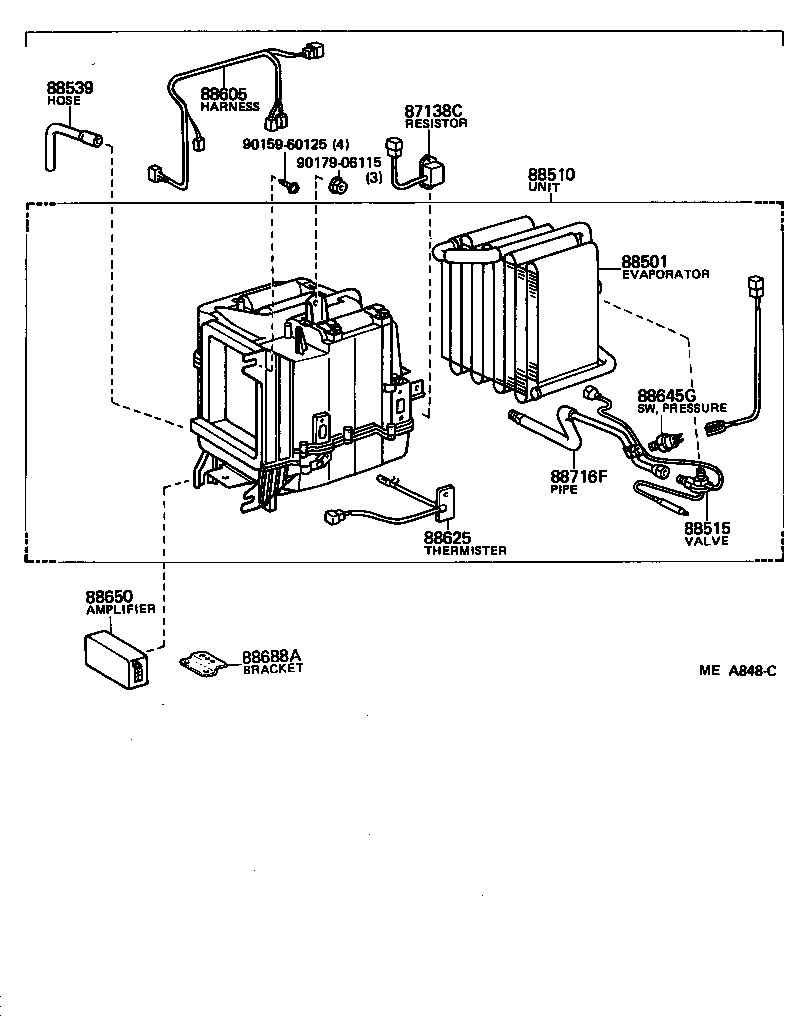

Click highlighted areas on diagram

diagram 87138C 88501 88510 88515 88539 88605 88625 88645G 88650 88688A 88716F 9015960125 9017906115
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-14060

RA6#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-14190

RA6#

 1
88510 - UNIT ASSY, COOLER
88510-14330

RA6#

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

RA6#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-14060

MA61,RA6#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-14360

RA6#..(CP,LB)..USA

W/BOOST VENTILATOR ONLY

 1
88605-14330

RA6#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00

RA6#

 1
88645G - SWITCH, PRESSURE
88645-30250

MA61,RA6#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14070

RA6#..USA

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-14480

RA6#

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-14820

MA61,RA6#

 1
Common parts
90159-60125
90179-06115
