RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

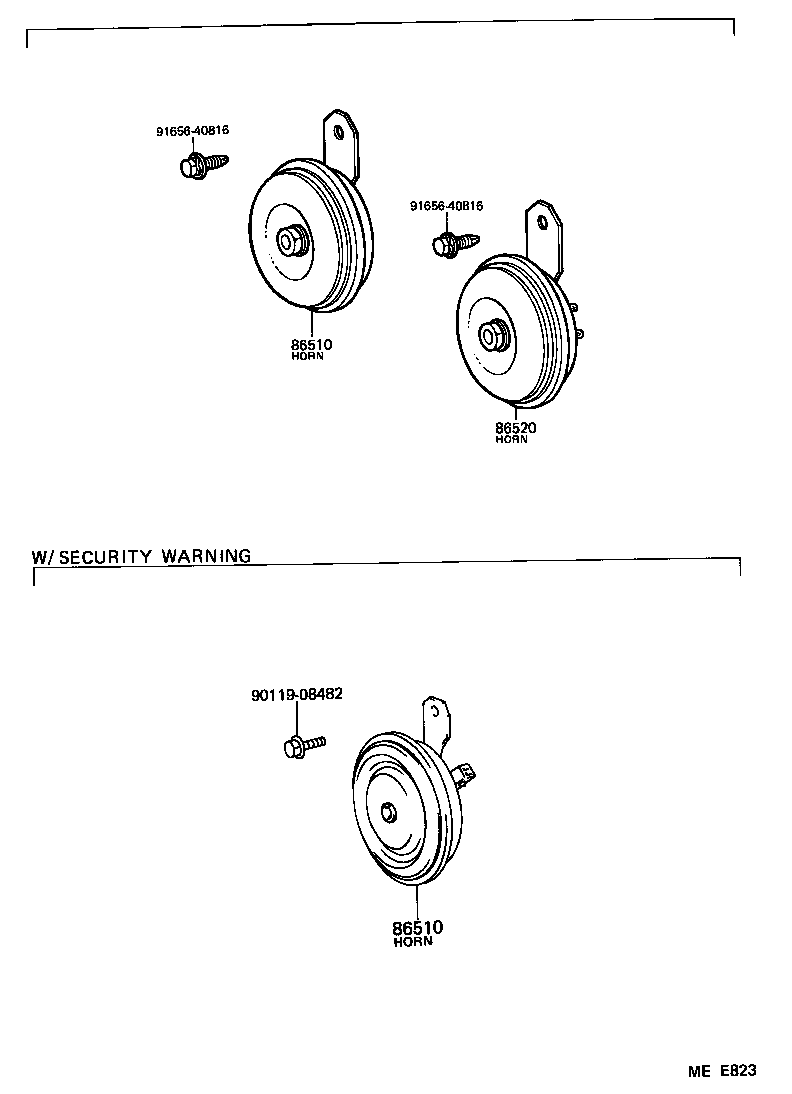

Click highlighted areas on diagram

diagram 86510 86510 86520 9011908482 9165640816 9165640816
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-22070

MA61,RA6#

DENSO

 1
86510-22080

MA61,RA6#

MARUKO

 1
86510 - HORN ASSY, HIGH PITCHED
86510-22070

MA61,RA6#

DENSO

 1
86510-22080

MA61,RA6#

MARUKO

 1
86520 - HORN ASSY, LOW PITCHED
86520-22080

MA61,RA6#

MARUKO

 1
86520-22070

MA61,RA6#

DENSO

 1
Common parts
90119-08482
91656-40816
