RA64L-BCPQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8208)

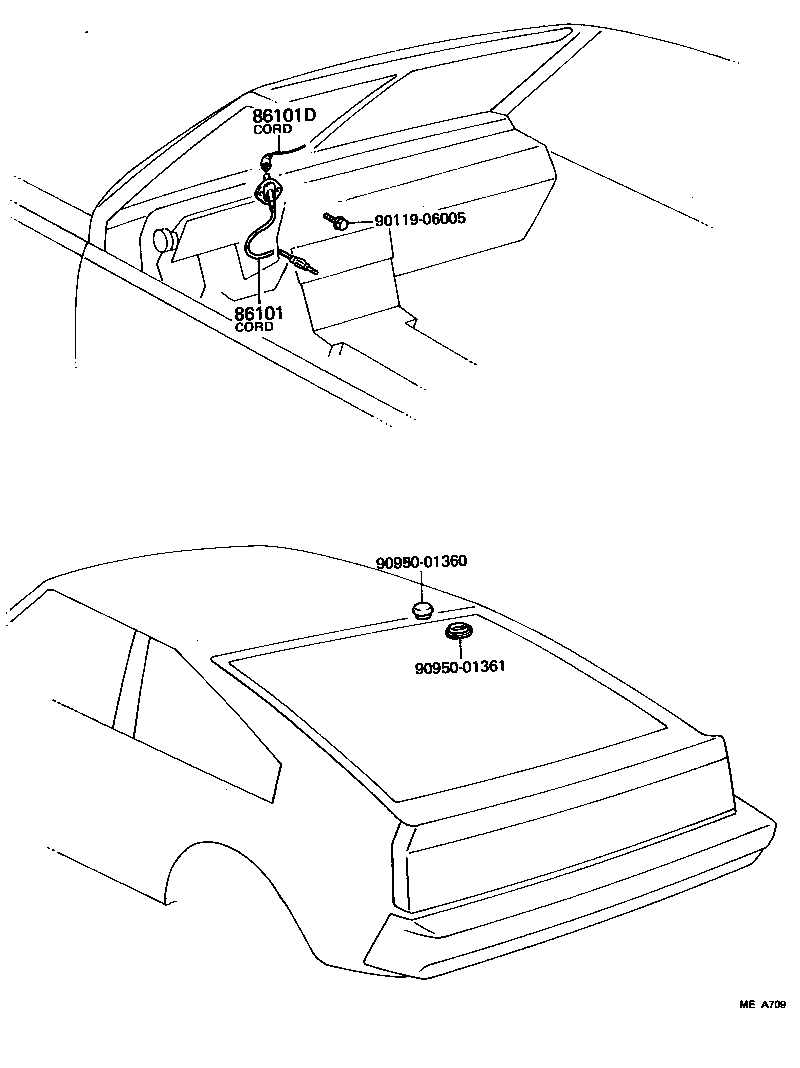

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-14260 |
MA61,RA64 |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-14340 |
MA61,RA64 |
1 | ||
| 86101-14120 |
MA61,RA64 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90950-01360 | ||||
| 90950-01361 | ||||
