RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

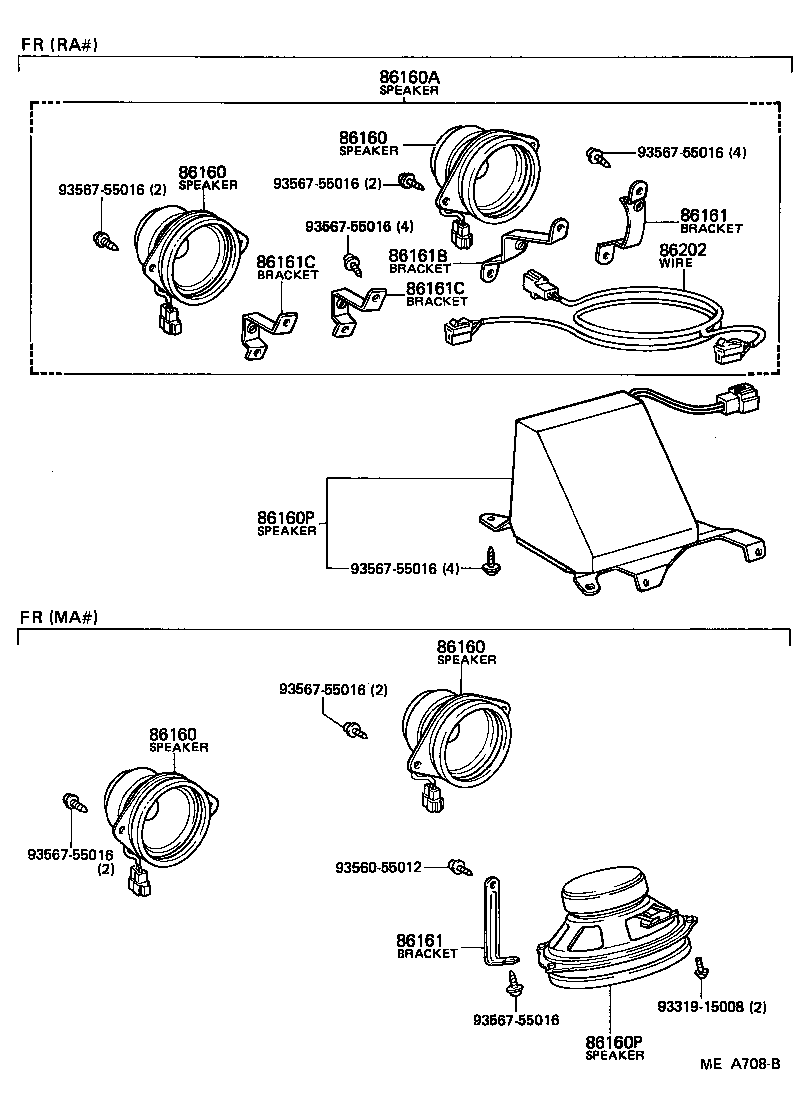

Click highlighted areas on diagram

diagram 86160 86160 86160 86160 86160A 86160P 86160P 86161 86161 86161B 86161C 86161C 86202 9331915008 9356055012 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-14180

MA61,RA6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-14180

MA61,RA6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-14180

MA61,RA6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-14180

MA61,RA6#

 2
86160A - SPEAKER SET, FRONT
86160-19305

RA6#

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-19315

RA6#

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-19315

RA6#

 1
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-14070

RA6#

 1
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-14070

RA6#

 1
86161B - BRACKET, SPEAKER, FRONT NO.2
86219-14080

RA6#

 1
86161C - BRACKET, SPEAKER, FRONT NO.3
86219-14090

RA6#

 2
86161C - BRACKET, SPEAKER, FRONT NO.3
86219-14090

RA6#

 2
86202 - WIRE, SPEAKER, NO.1
82181-14181

RA6#..CP,CVT

 1
Common parts
93319-15008
93560-55012
93567-55016

(8108- )

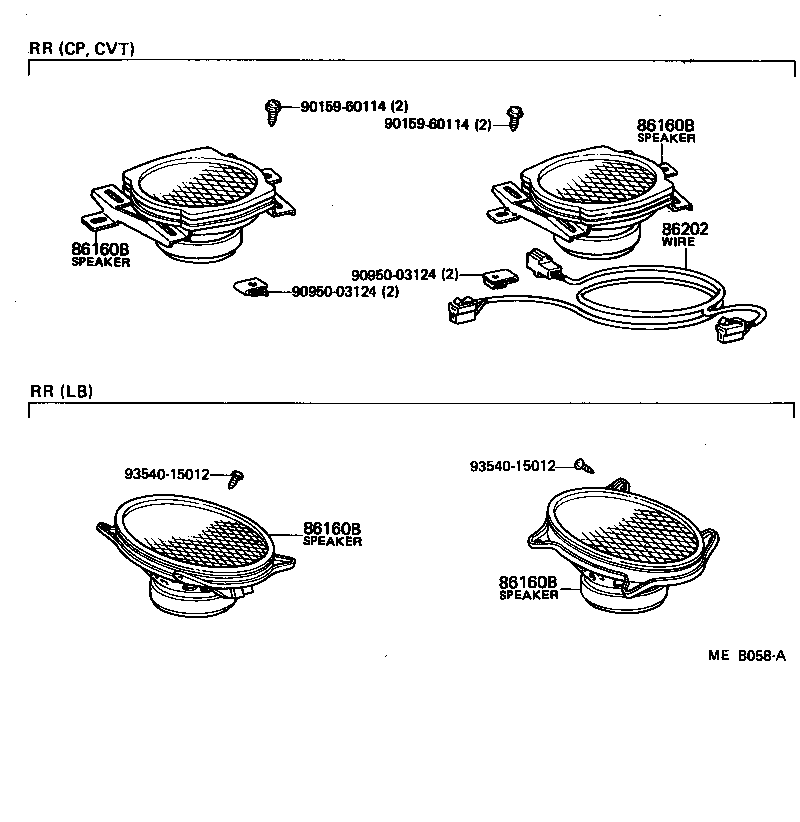

Click highlighted areas on diagram

diagram 86160B 86160B 86160B 86160B 86202 9015960114 9015960114 9095003124 9095003124 9354015012 9354015012
Part # Description Qty Price
86160B - SPEAKER ASSY, REAR
86160-14210

RA6#..CP,CVT

W/5-SPEAKER

 2
86160B - SPEAKER ASSY, REAR
86160-14210

RA6#..CP,CVT

W/5-SPEAKER

 2
86160B - SPEAKER ASSY, REAR
86160-14210

RA6#..CP,CVT

W/5-SPEAKER

 2
86160B - SPEAKER ASSY, REAR
86160-14210

RA6#..CP,CVT

W/5-SPEAKER

 2
86202 - WIRE, SPEAKER, NO.1
82181-14181

RA6#..CP,CVT

 1
Common parts
90159-60114
90950-03124
93540-15012
